Cylinder Head Temperature (CHT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the turbocharger. Refer to: Turbocharger .

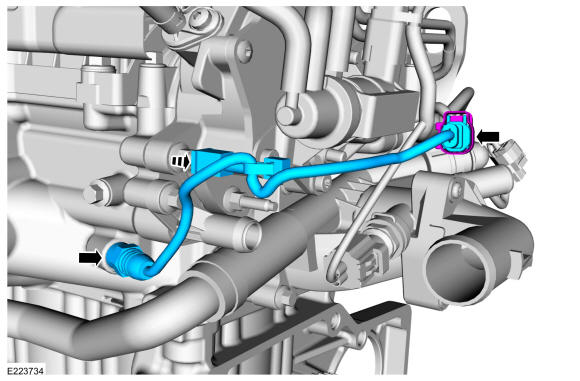

  2. Disconnect the electrical connector and the harness retainer. Remove the CHT sensor.

    Torque

    : 106 lb.in (12 Nm)

GFD267310Courtesy of FORD MOTOR COMPANY
