Camshaft Position (CMP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the engine appearance cover.
 Courtesy of FORD MOTOR COMPANY
|
-

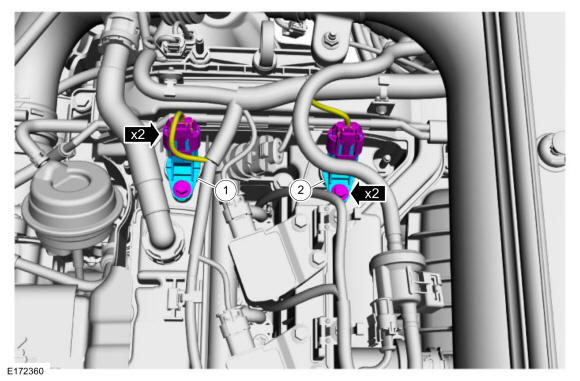

- Disconnect the CMP electrical connector, remove the retainer and remove the exhaust CMP sensor.
- Disconnect the CMP electrical connector, remove the retainer and remove the intake CMP sensor.
 Courtesy of FORD MOTOR COMPANY
|
