Camshaft Position (CMP) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

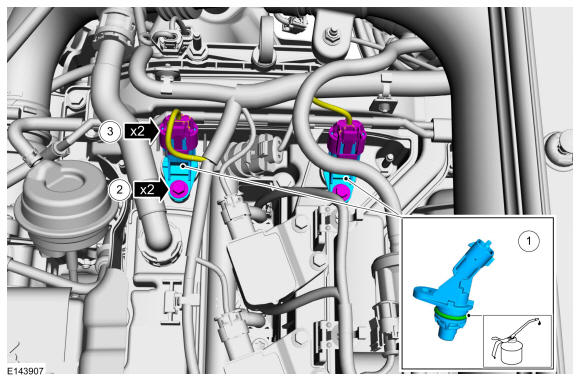

To install, reverse the removal procedure.
- Apply engine oil to the sensor o-ring.
  Material

  : Motorcraft® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)
- Install CMP sensors and retainers.
  Torque

  : 89 lb.in (10 Nm)
- Connect the CMP sensor electrical connectors.

GFD267304

Courtesy of FORD MOTOR COMPANY
