Electronic Engine Controls - Component Location
WARNING: This page is about a different variant/trim than selected.

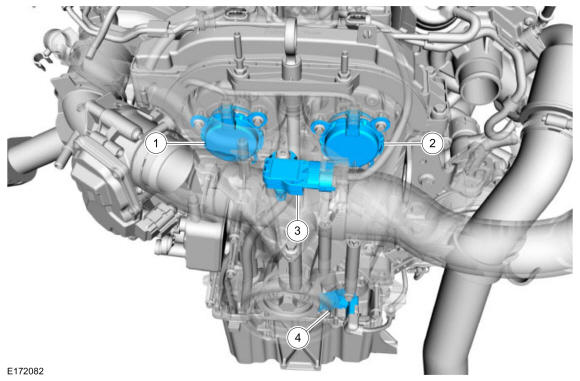

Front of Engine
| Item | Description |
|---|---|
| 1 | VCT oil control solenoid - intake camshaft |
| 2 | VCT oil control solenoid - exhaust camshaft |
| 3 | Turbocharger boost pressure and charge air temperature sensor |
| 4 | CKP sensor |

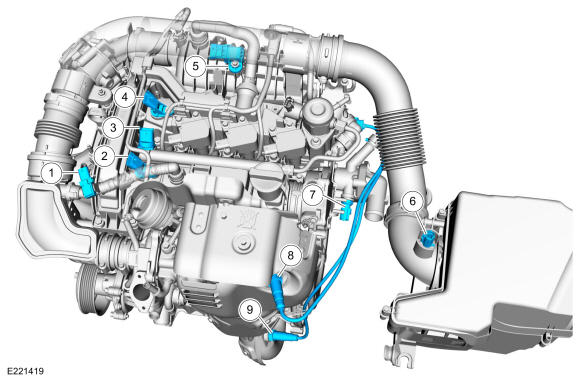

Top of Engine
| Item | Description |
|---|---|
| 1 | Crankcase Pressure sensor |
| 2 | CMP sensor - exhaust camshaft |
| 3 | FRP sensor |
| 4 | CMP sensor - intake camshaft |
| 5 | MAPT sensor |
| 6 | IAT sensor |
| 7 | ECT sensor |
| 8 | HO2S |
| 9 | Catalyst monitor sensor |

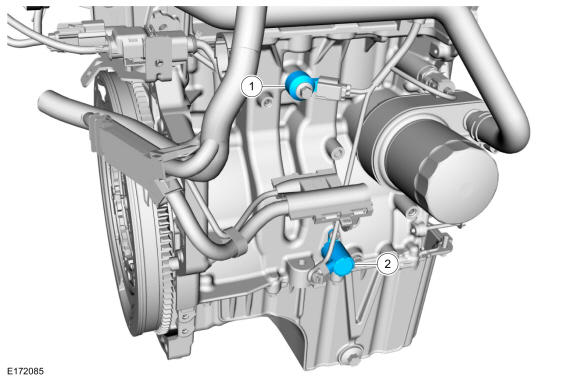

Right Side of Engine
| Item | Description |
|---|---|
| 1 | KS |
| 2 | Oil pressure control solenoid |

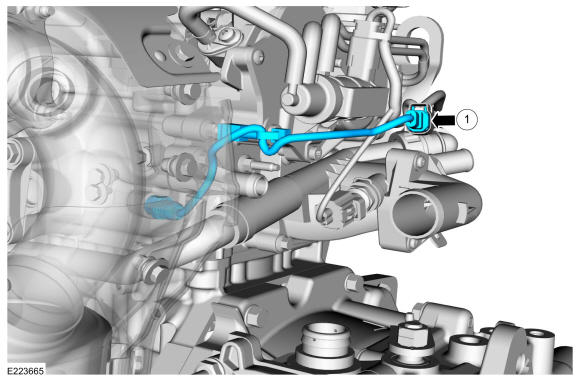

Rear of Engine
| Item | Description |
|---|---|
| 1 | CHT sensor |

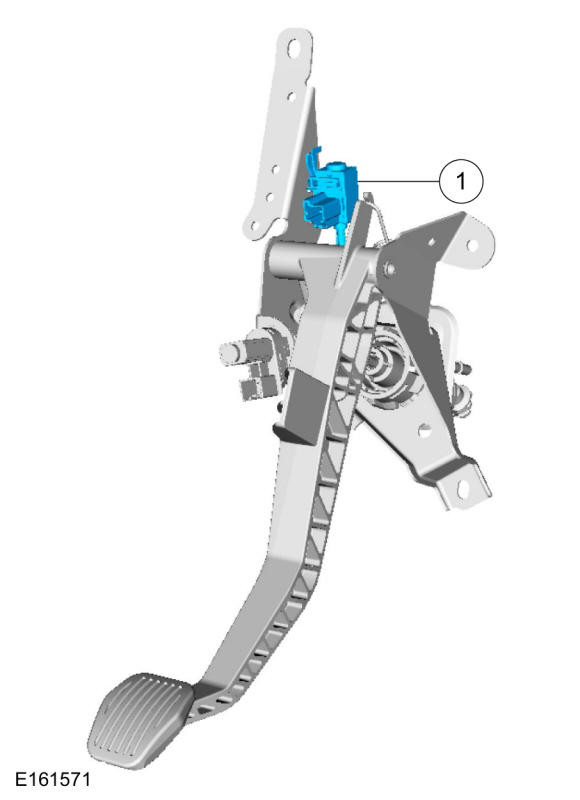

CPP Switch
| Item | Description |
|---|---|
| 1 | CPP switch |

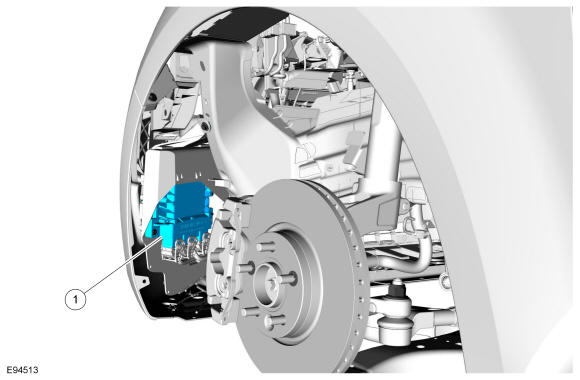

PCM
| Item | Description |
|---|---|
| 1 | PCM |
