2.0L Gasoline Turbocharged Direct Injection (GTDI)

WARNING: This page is about a different variant/trim than selected.

2.0L Gasoline Turbocharged Direct Injection (GTDI)

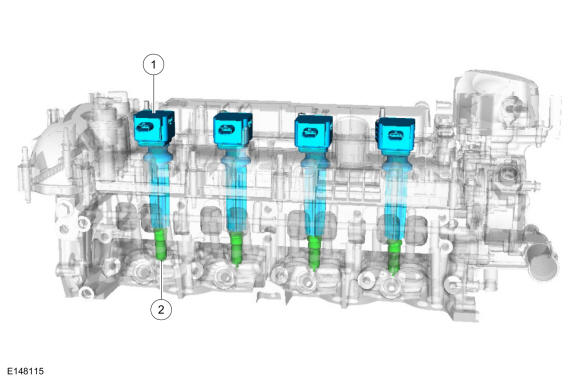

GFD267228Courtesy of FORD MOTOR COMPANY
Item Description
1 Ignition coil-on-plug(s)
2 Spark plug(s)
