Section 2 (Engine - 2.0L ECOBOOST (184KW/250PS) - Mi4): Removal: Engine

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

GFD265461Courtesy of FORD MOTOR COMPANY
 300-OTC1585AE Powertrain Lift
GFD264980Courtesy of FORD MOTOR COMPANY
 300-OTC1819E2, 200# Floor Crane, Fold Away
Adjustable Mounting Arm
Hose Clamp Remover/Installer
Wooden Block
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  3. Evacuate the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .
  4. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
    1. Remove the retainers and the underbody shield.
    2. Remove the retainers and the underbody shield reinforcement.
    GFD266159Courtesy of FORD MOTOR COMPANY
  6. Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
  7. Remove the following items:

    1. Refer to: Degas Bottle .
    2. Refer to: Air Cleaner .
    3. Refer to: Air Cleaner Outlet Pipe .
    4. Refer to: Cooling Module .

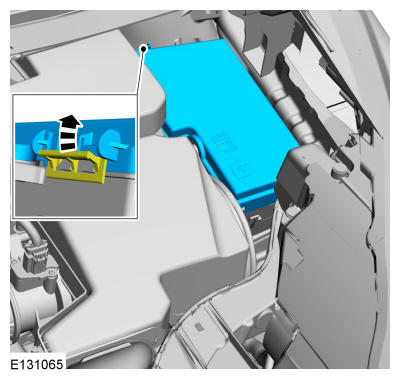

  8. Remove the engine compartment fuse box cover.
    GFD265915Courtesy of FORD MOTOR COMPANY

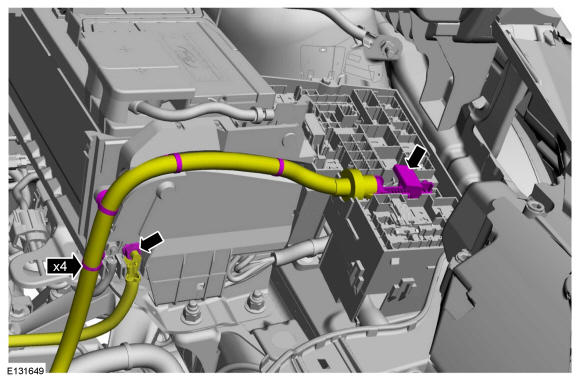

  9. Release the retainers, disconnect the main wiring harness from the fuse box and the battery feed cable.
    GFD265916Courtesy of FORD MOTOR COMPANY
  10. Remove the battery tray. Refer to: Battery Tray .

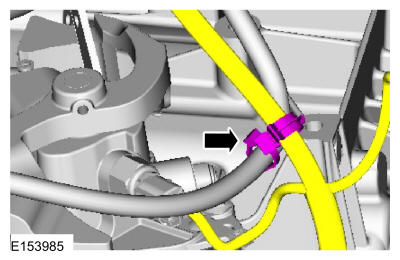

  11. Detach the wiring harness retainer.
    GFD266160Courtesy of FORD MOTOR COMPANY

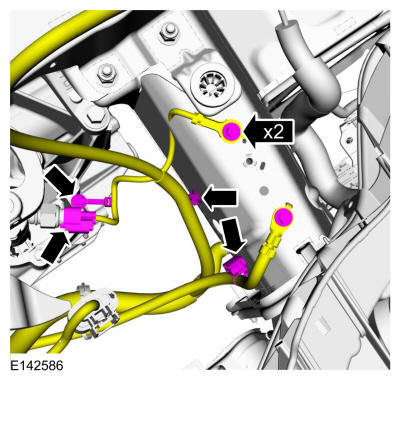

    • Remove the bolts.

    • Disconnect the electrical connector and the wiring harness retainers.

    GFD266161Courtesy of FORD MOTOR COMPANY
  13. Remove the PCM. Refer to: Powertrain Control Module (PCM) .

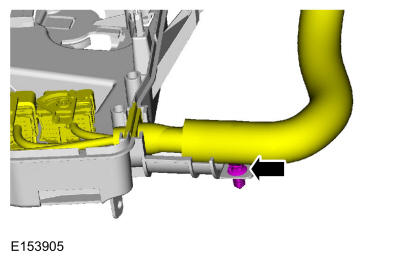

  14. Detach the retainers and position the PCM wiring harness assembly aside.
    GFD266162Courtesy of FORD MOTOR COMPANY

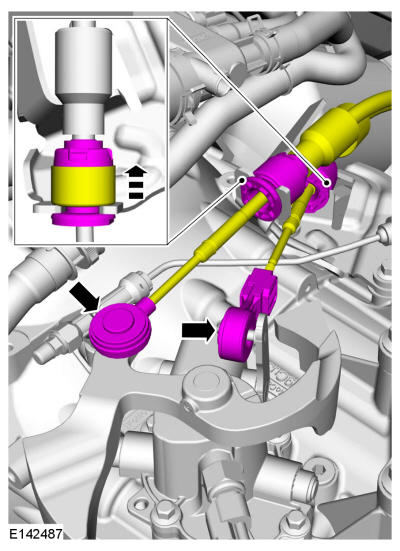

  15. Disconnect the Gearshift cable end and gear lever selector cable end from selector lever assembly.
    GFD266035Courtesy of FORD MOTOR COMPANY

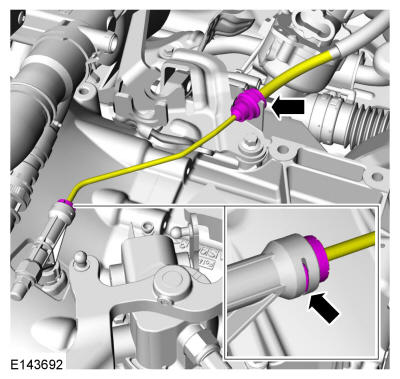

  16. Disconnect the slave cylinder hydraulic tube.
    GFD265926Courtesy of FORD MOTOR COMPANY

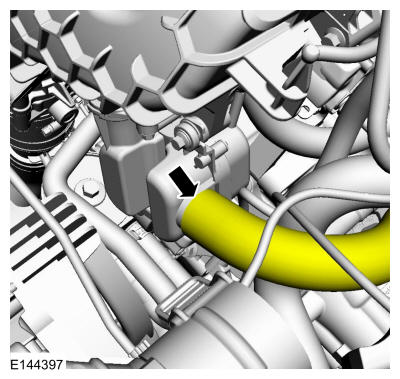

  17. Position the sound symposer hose aside.
    GFD266163Courtesy of FORD MOTOR COMPANY

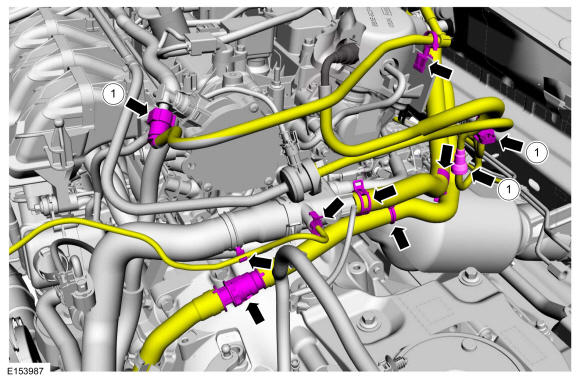

    • Disconnect the fuel tube and EVAP canister purge valve quick release couplings. Refer to: Quick Release Coupling . Use the General Equipment: Hose Clamp Remover/Installer

    • Detach the coolant hose retainers and disconnect the coolant hoses.

    • Disconnect the brake booster vacuum hose quick connect coupling.

    GFD266164Courtesy of FORD MOTOR COMPANY

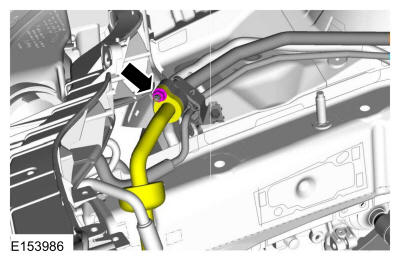

  19. Remove the nut and position the A/C line aside.
    GFD266165Courtesy of FORD MOTOR COMPANY

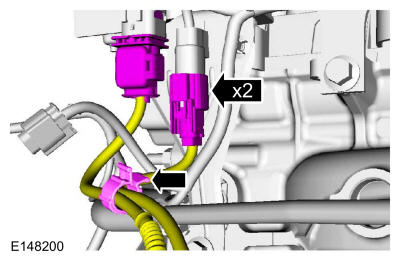

  20. Detach the wiring harness retainer and disconnect the engine harness electrical connectors.
    GFD266166Courtesy of FORD MOTOR COMPANY

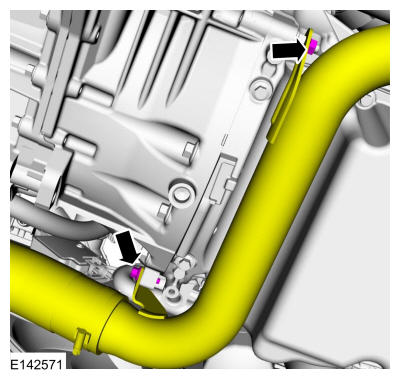

  21. Remove the bolts and position the TC outlet tube aside.
    GFD266167Courtesy of FORD MOTOR COMPANY

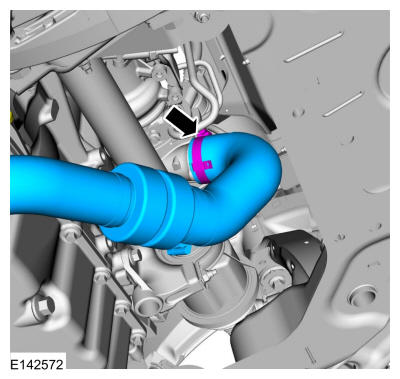

  22. Loosen the clamp and remove the TC outlet tube.
    GFD266168Courtesy of FORD MOTOR COMPANY
  23. Remove the following items:

    1. Refer to: Front Halfshaft LH .
    2. Refer to: Front Halfshaft RH .

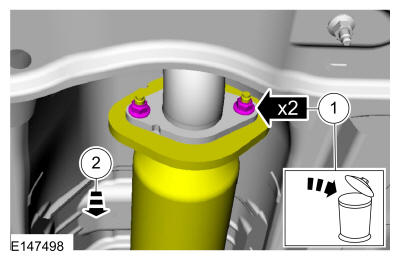

  24. Remove and discard the nuts. Position aside the muffler inlet pipe.
    GFD266169Courtesy of FORD MOTOR COMPANY

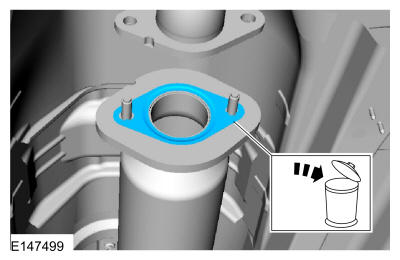

  25. Remove and discard the muffler inlet gasket.
    GFD266170Courtesy of FORD MOTOR COMPANY

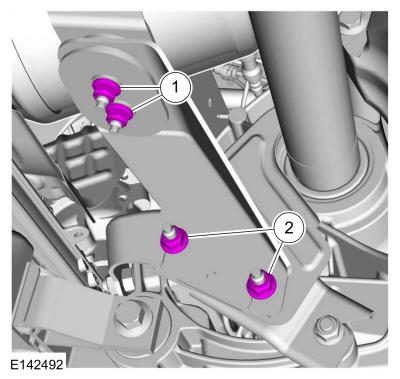

  26. Remove the catalytic converter support bracket nuts.
    GFD266131Courtesy of FORD MOTOR COMPANY

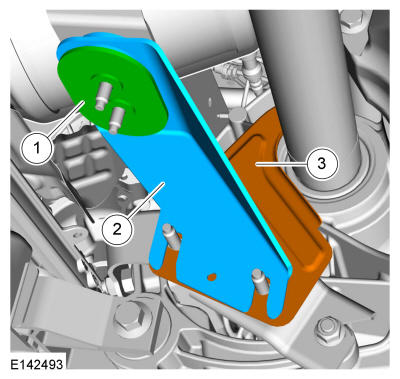

    1. Remove the grommet.
    2. Remove the catalytic converter support bracket.
    3. If equipped. Remove the catalytic converter insulator bracket.
    GFD266132Courtesy of FORD MOTOR COMPANY

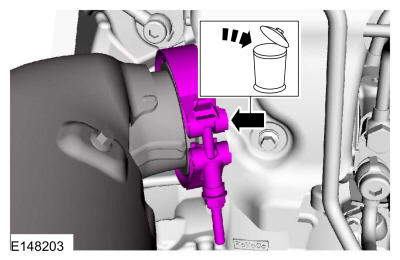

  28. Remove and discard the catalytic converter clamp.
    GFD266171Courtesy of FORD MOTOR COMPANY

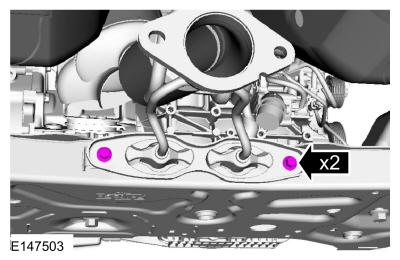

  29. Remove the exhaust isolator bracket bolts.
    GFD266172Courtesy of FORD MOTOR COMPANY

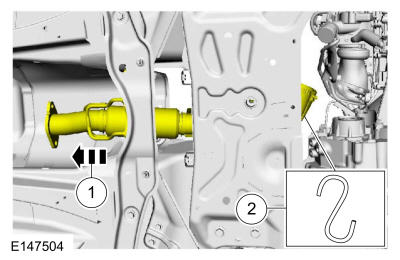

  30. Relocate and support the catalytic converter.
    GFD266173Courtesy of FORD MOTOR COMPANY

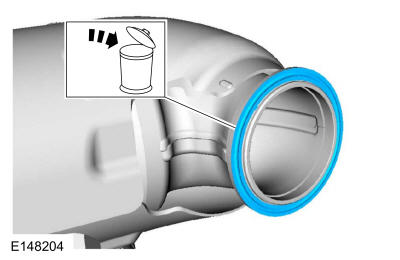

  31. Remove and discard the exhaust gasket.
    GFD266174Courtesy of FORD MOTOR COMPANY

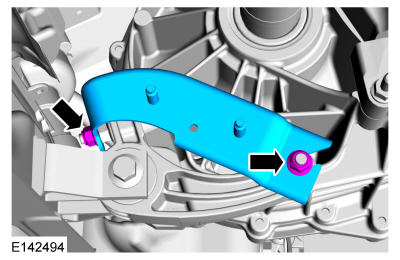

  32. Remove the nuts and the roll restrictor bracket.
    GFD266175Courtesy of FORD MOTOR COMPANY

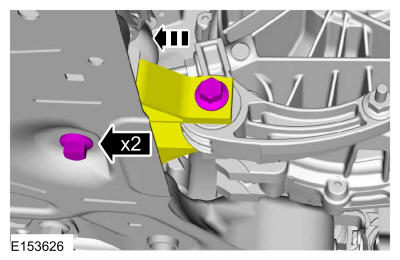

  33. Remove the bolts and position aside the roll restrictor.
    GFD266133Courtesy of FORD MOTOR COMPANY

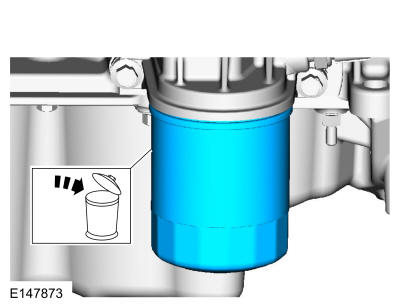

  34. Remove and discard the engine oil filter.
    GFD266114Courtesy of FORD MOTOR COMPANY
  35. Remove the drain plug, drain engine oil and install drain plug.

    Torque

    : 20 lb.ft (27 Nm)

    GFD266126Courtesy of FORD MOTOR COMPANY

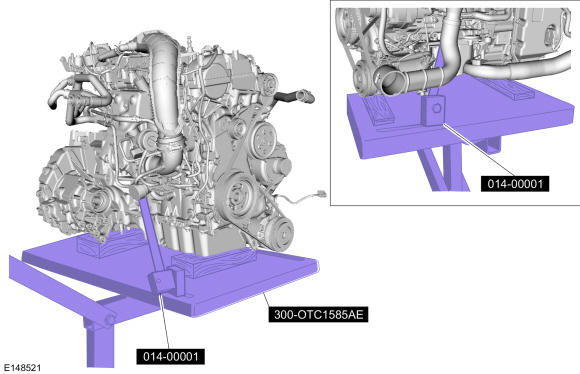

  36. Using the special tool, position the engine on the table stand. Install Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Adjustable Mounting Arm. Use the General Equipment: Wooden Block
    GFD266176Courtesy of FORD MOTOR COMPANY

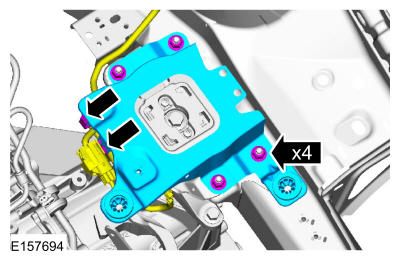

  37. Detach the wiring harness retainer. Remove the nuts and the transmission support insulator bracket.
    GFD266177Courtesy of FORD MOTOR COMPANY

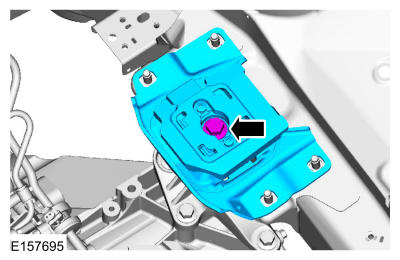

  38. Remove the bolt and the transmission support insulator.
    GFD266178Courtesy of FORD MOTOR COMPANY

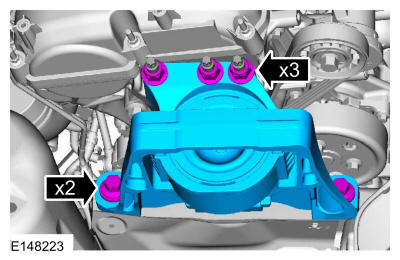

  39. Remove the bolts, nuts and the engine mount.
    GFD266179Courtesy of FORD MOTOR COMPANY

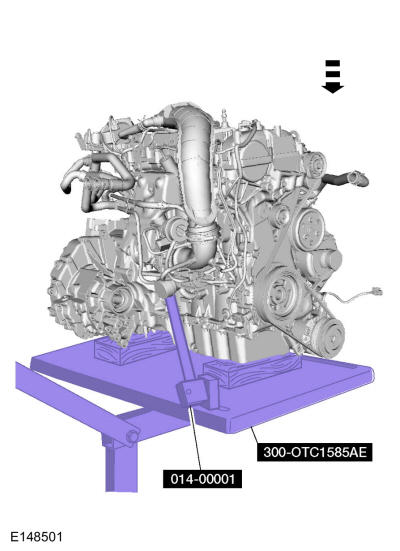

  40. Using the special tool, raise the vehicle engine. Use Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Adjustable Mounting Arm. Use the General Equipment: Wooden Block
    GFD266180Courtesy of FORD MOTOR COMPANY

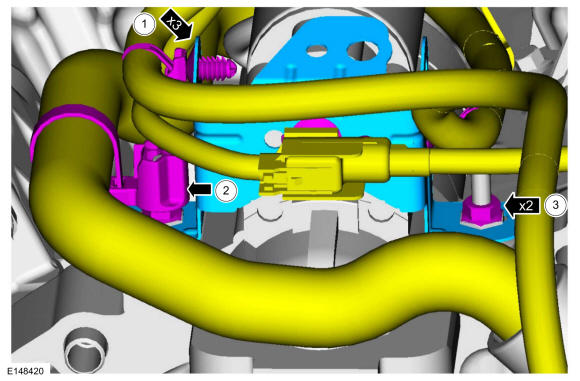

    1. Detach the wiring harness retainers.
    2. Disconnect the coolant hose retainers.
    3. Remove the nuts and the starter motor bracket.
    GFD266181Courtesy of FORD MOTOR COMPANY

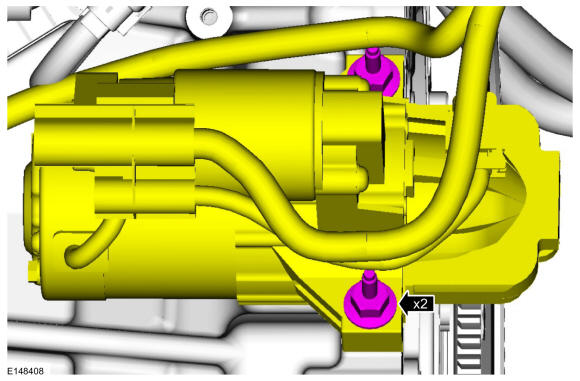

  42. Remove the studs and position aside the starter motor assembly.
    GFD266182Courtesy of FORD MOTOR COMPANY

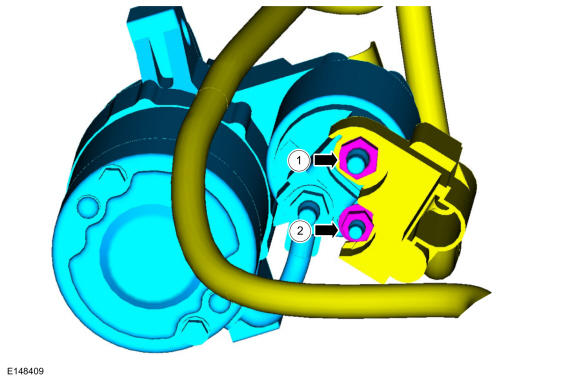

  43. Remove the nuts and the starter motor.
    GFD266183Courtesy of FORD MOTOR COMPANY

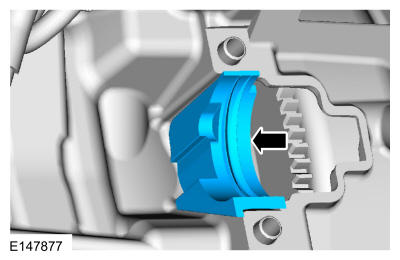

  44. Remove the starter motor insulator.
    GFD266184Courtesy of FORD MOTOR COMPANY

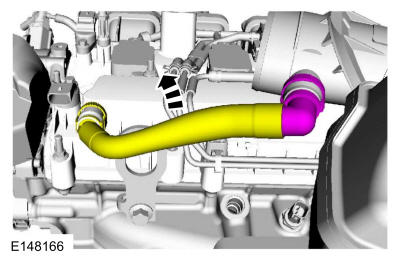

  45. Disconnect the EVAP tube and position aside. Refer to: Quick Release Coupling .
    GFD266185Courtesy of FORD MOTOR COMPANY

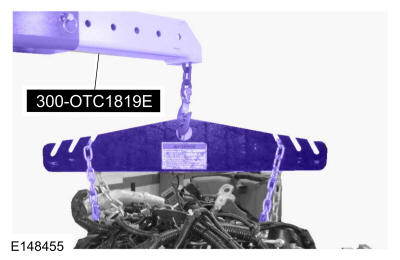

  46. Using the special tools, install the Floor Crane. Install Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.
    GFD266186Courtesy of FORD MOTOR COMPANY
  47. Using the special tools, remove the engine from the table stand. Remove Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Adjustable Mounting Arm. Use the General Equipment: Wooden Block
    GFD266176Courtesy of FORD MOTOR COMPANY

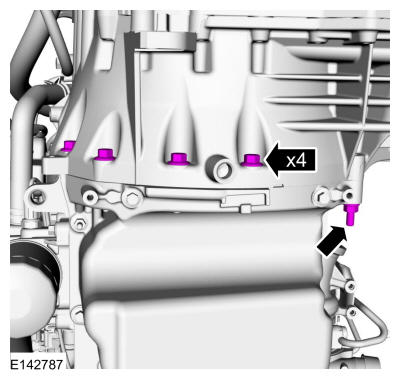

  48. Remove the engine to transmission bolts and the stud.
    GFD265872Courtesy of FORD MOTOR COMPANY

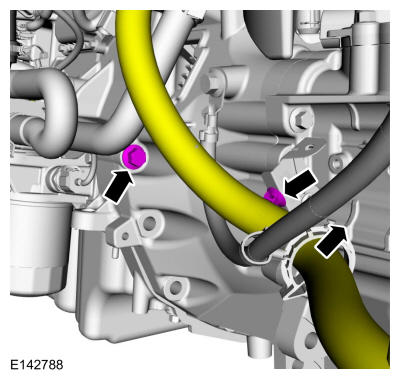

  49. Remove the transmission bolt and detach the wiring harness retainer.
    GFD266187Courtesy of FORD MOTOR COMPANY

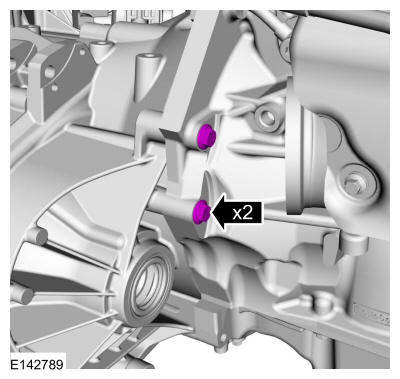

  50. Remove the transmission-to-engine bolts.
    GFD265871Courtesy of FORD MOTOR COMPANY

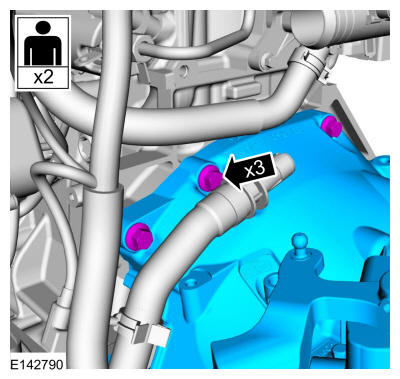

  51. Remove the bolts and the engine from the transmission.
GFD266188Courtesy of FORD MOTOR COMPANY
