Variable Valve Timing (VVT) Unit: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
- Remove the timing drive components. Refer to: Timing Drive Components .
- Remove the bolts and the VCT units.
-
NOTE: Washers are not required for installation of the VCT units.

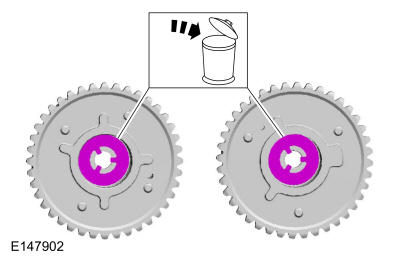

If equipped. Remove and discard the VCT units washers.
