Variable Valve Timing (VVT) Unit: Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: Do not tighten the bolts at this time. The bolts will be tightened during the timing drive component installation procedure.

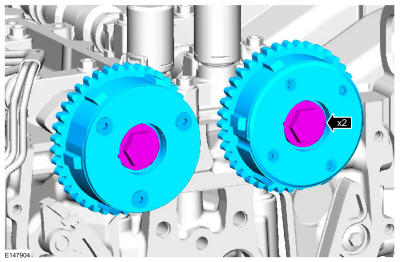

    Install the VCT units and the bolts finger-tight.

    GFD265453Courtesy of FORD MOTOR COMPANY
  2. Install the timing drive components. Refer to: Timing Drive Components  .
