Valve Tappets: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

NOTE: If the camshafts and valve tappets are to be reused, note the location of the valve tappets to make sure they are assembled in their original positions.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the camshaft. Refer to: Camshaft .

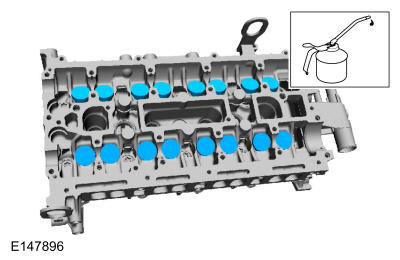

Remove the valve tappets.
Material

: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY
NOTE: The number on the valve tappets only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 3.650 mm.
- Visual check the valve tappets.
- Install new components as necessary.

Courtesy of FORD MOTOR COMPANY
