Valve Stem Seals: Installation

WARNING: This page is about a different variant/trim than selected.

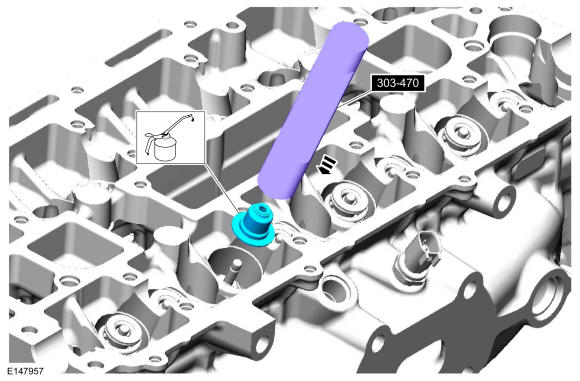

Using the special tools, lubricate and install the valve stem seals in to the cylinder head. Use Special Service Tool: 303-470 (T94P-6510-CH) Installer, Valve Stem Oil Seal.
Material

: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY
Install the valve springs. Refer to: Valve Springs .
