Oil Pump Screen and Pickup Tube: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the oil pan. Refer to: Oil Pan .
-
NOTE: A new gasket must be installed.

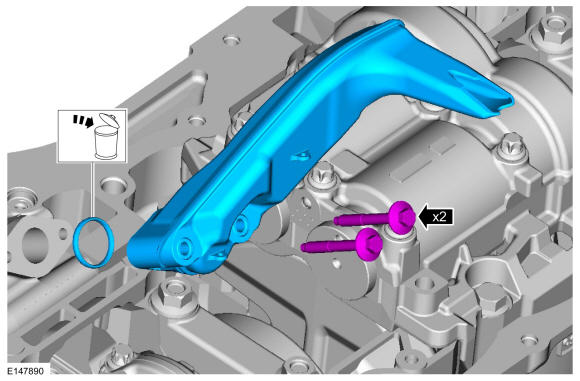

- Remove the bolts and the oil pump screen and pickup tube.
Torque
: 89 lb.in (10 Nm)
- Remove and discard the oil pump screen and pickup tube O-ring seal.
- Remove the bolts and the oil pump screen and pickup tube.
