Oil Pressure Switch: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-

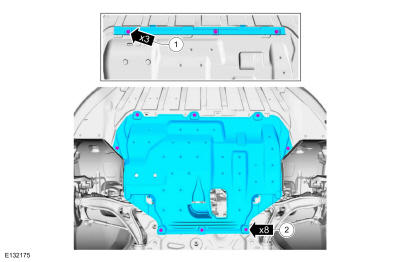

- Remove the retainers and the underbody shield reinforcement.
- Remove the retainers and the underbody shield.
-

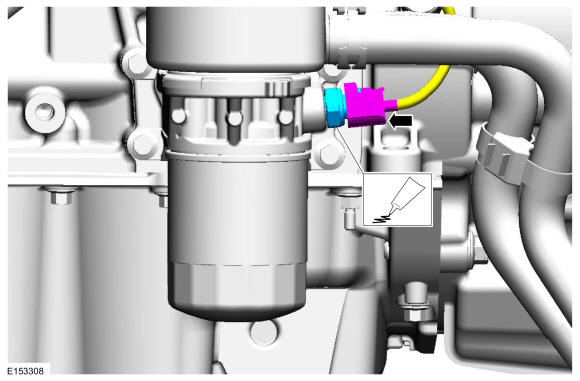

NOTE: Apply the substance on EOP switch thread prior to installation.
Disconnect the electrical connector and remove the EOP switch.
Material
: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)
Torque
: 133 lb.in (15 Nm)
