Oil Pan: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the oil level indicator.
    GFD266128Courtesy of FORD MOTOR COMPANY
  3. Remove the following items:

    1. Refer to: Air Cleaner .
    2. Refer to: Air Cleaner Outlet Pipe .

  4. NOTE: To prevent damage to the transmission, do not loosen the transmission-to-engine fasteners more than 5 mm (0.19 in).

    Loosen the engine to transmission bolts 5 mm (0.19 in).

    GFD265866Courtesy of FORD MOTOR COMPANY
    1. Remove the retainers and the underbody shield reinforcement.
    2. Remove the retainers and the underbody shield.
    GFD264388Courtesy of FORD MOTOR COMPANY
  6. Remove the drain plug, drain engine oil and install drain plug.

    Torque

    : 20 lb.ft (27 Nm)

    GFD266126Courtesy of FORD MOTOR COMPANY
  7. Remove the A/C compressor belt. Refer to: AIR CONDITIONING (A/C) COMPRESSOR BELT .
  8. Loosen the clamp and position the CAC outlet tube aside.
    GFD266129Courtesy of FORD MOTOR COMPANY
  9. Loosen the clamps, remove the bolts and the CAC inlet tube assembly.
    GFD266130Courtesy of FORD MOTOR COMPANY
  10. Remove the catalytic converter support bracket nuts.
    GFD266131Courtesy of FORD MOTOR COMPANY
    1. Remove the catalytic converter grommet.
    2. Remove the catalytic converter support bracket.
    3. If equipped. Remove the catalytic converter support bracket insulator.
    GFD266132Courtesy of FORD MOTOR COMPANY
  12. Remove the bolts and position the roll restrictor aside.
    GFD266133Courtesy of FORD MOTOR COMPANY

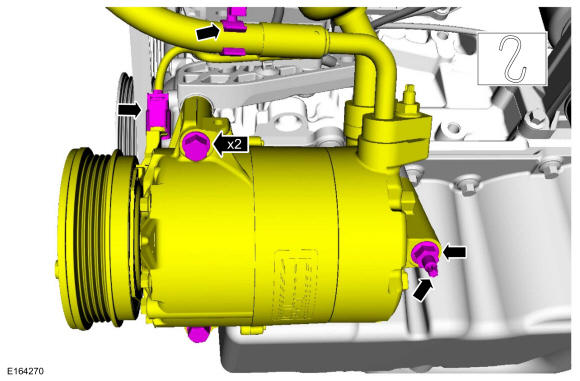

    • Detach the wiring harness retainer and disconnect the A/C compressor electrical connector.

    • Remove the nut, stud, bolts and position A/C compressor aside with support.

    GFD266134Courtesy of FORD MOTOR COMPANY

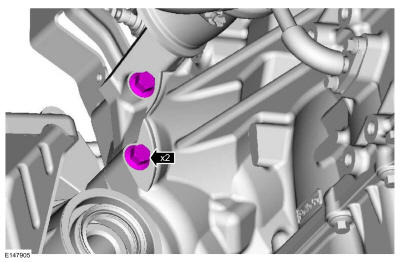

  14. NOTE: To prevent damage to the transmission, do not loosen the engine-to-transmission fasteners more than 5 mm (0.19 in).

    Loosen the engine to transmission bolts 5 mm (0.19 in).

    GFD266135Courtesy of FORD MOTOR COMPANY

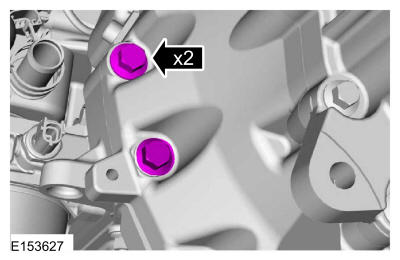

  15. NOTE: To prevent damage to the transmission, do not loosen the engine-to-transmission fasteners more than 5 mm (0.19 in).

    Loosen the engine to transmission bolts 5 mm (0.19 in).

    GFD266136Courtesy of FORD MOTOR COMPANY
  16. Remove the engine to transmission bolts and the stud.
    GFD266137Courtesy of FORD MOTOR COMPANY

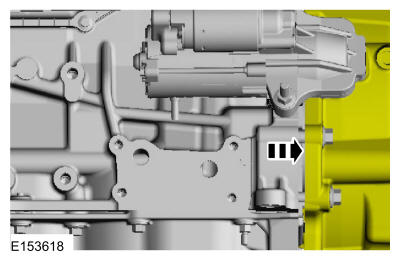

  17. Separate the engine and transmission 5 mm (0.197 in).
    GFD266138Courtesy of FORD MOTOR COMPANY
  18. Remove the front cover to oil pan bolts.
    GFD266139Courtesy of FORD MOTOR COMPANY
  19. Remove the bolts and the oil pan.
GFD266140Courtesy of FORD MOTOR COMPANY
