Oil Pan: Installation

WARNING: This page is about a different variant/trim than selected.

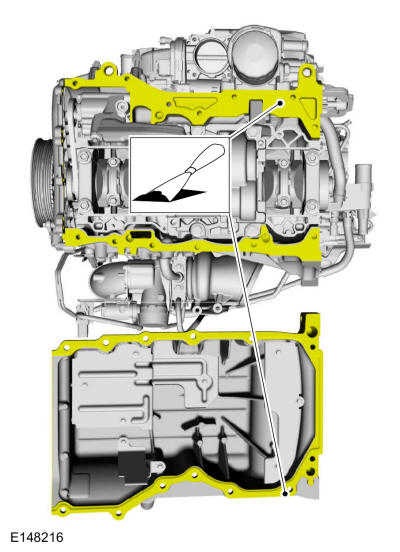

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

Make sure that the mating faces are clean and free of foreign material. Use the General Equipment: Plastic Scraper

Courtesy of FORD MOTOR COMPANY
NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

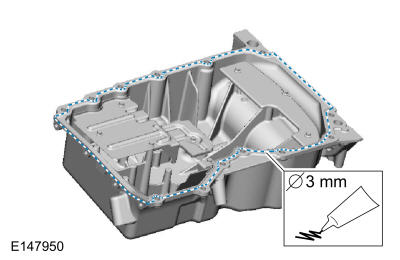

Clean and Apply a 3 mm (0.118 in) bead of silicone sealant.

Material

: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Material

: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolts finger tight at this stage.

Install the oil pan and the bolts finger-tight.

Courtesy of FORD MOTOR COMPANY
NOTE: The engine front cover-to-oil pan fasteners must be tightened first to align the front surface of the oil pan flush with the front surface of the engine block.

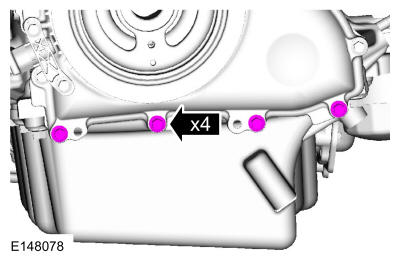

Install the front cover to oil pan bolts.

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

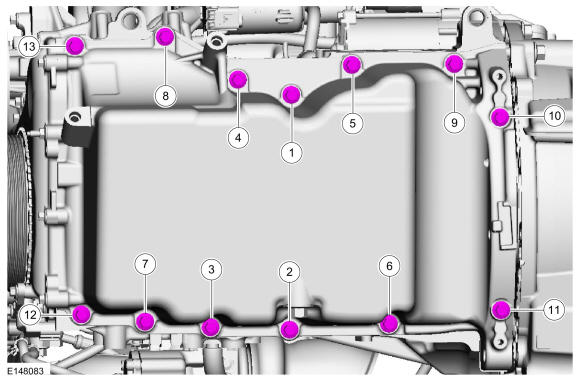

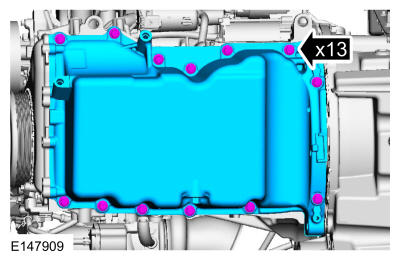

Tighten the oil pan bolts in sequence shown.
Torque

: 177 lb.in (20 Nm)

Fig 1: Oil Pan Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

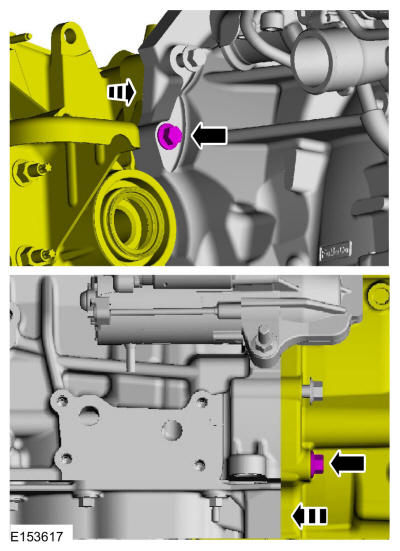

Alternate tightening the LH bellhousing-to-engine and RH engine-to-bellhousing lower bolts to draw the transaxle and engine together.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

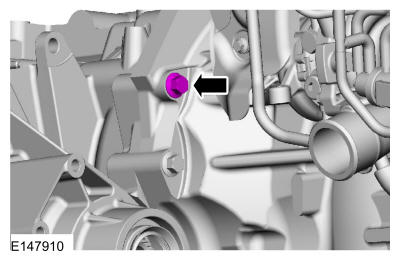

Install engine to transmission bolt.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install engine to transmission bolt.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

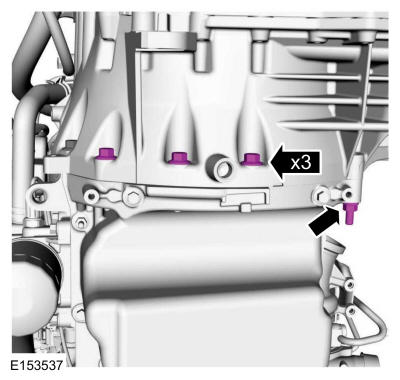

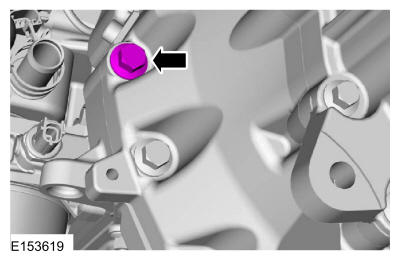

Install engine to transmission bolts and the stud.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

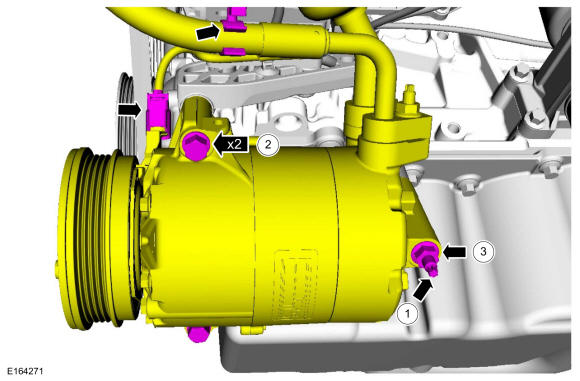

- Position the A/C compressor and install the stud, bolts and nut.
  Torque

  :1: 80 lb.in (9 Nm) 2: 18 lb.ft (25 Nm) 3: 18 lb.ft (25 Nm)
- Attach the wire harness retainers and connect the A/C compressor electrical connector.
Courtesy of FORD MOTOR COMPANY

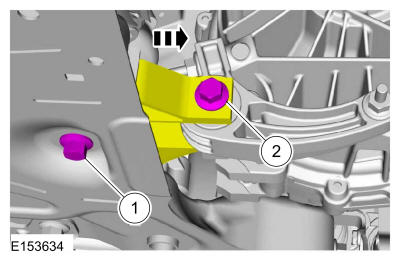

1. Position roll restrictor and install the bolt, tighten in 2 stages.
  Torque

  :Stage 1: 22 lb.ft (30 Nm) Stage 2: 270°
2. Install the roll restrictor bolt.
  Torque

  : 63 lb.ft (85 Nm)
Courtesy of FORD MOTOR COMPANY

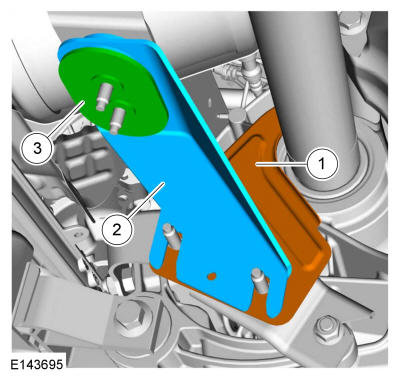

1. If equipped. Install the catalytic convertor support bracket insulator.
2. Install the catalytic convertor support bracket.
3. Install the catalytic convertor grommet.
Courtesy of FORD MOTOR COMPANY
Install the catalytic convertor support bracket nuts.
Torque

:1: 18 lb.ft (25 Nm) 2: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

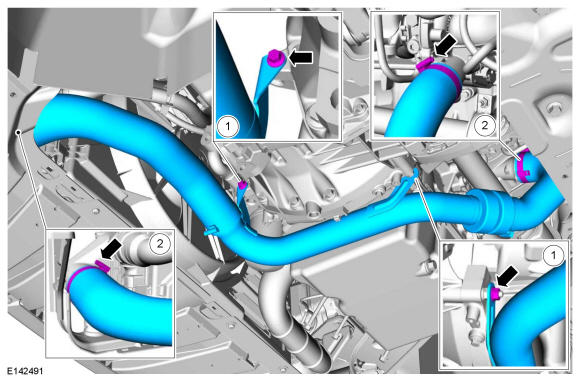

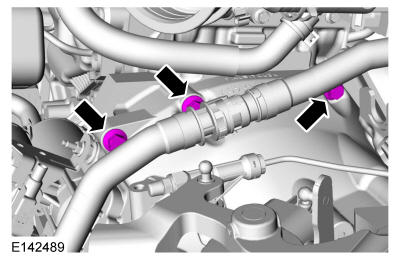

1. Install the CAC inlet tube assembly and the bolts.
  Torque

  : 89 lb.in (10 Nm)
2. Tighten the CAC inlet tube assembly clamps.
Courtesy of FORD MOTOR COMPANY

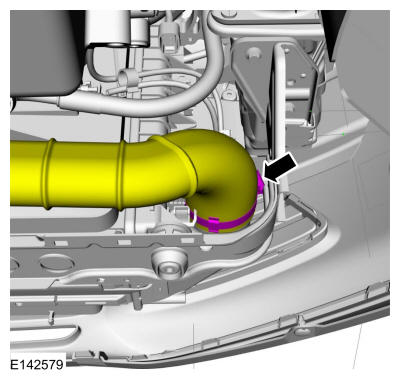

Install the CAC outlet tube and tighten the clamp.

Courtesy of FORD MOTOR COMPANY
Install the A/C compressor belt. Refer to: AIR CONDITIONING (A/C) COMPRESSOR BELT .
1. Install the underbody shield and the retainers.
2. Install the underbody shield reinforcement and the retainers.
Courtesy of FORD MOTOR COMPANY
Install engine to transmission bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Air Cleaner Outlet Pipe .
2. Refer to: Air Cleaner .

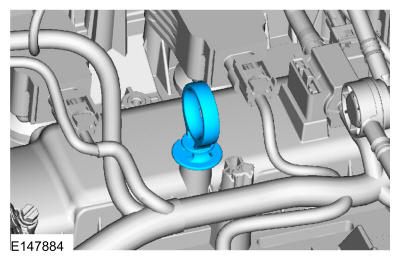

Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil.
Material

: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
