Removal And Installation: Flywheel: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the clutch disc and pressure plate. Refer to: CLUTCH DISC AND PRESSURE PLATE
-
NOTE: Do not reuse the flywheel bolts.

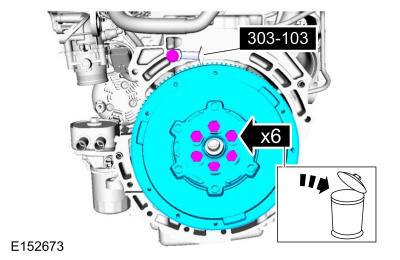

Remove the bolts and the flywheel. Discard the bolts. Use Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
