Removal And Installation: Flywheel: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Special bolts are used for installation. Do not use standard bolts.
- Install the flywheel and bolts finger-tight. Use Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
- Tighten the bolts in sequence shown in 3 stages.
  Torque

  :Stage 1: 37 lb.ft (50 Nm) Stage 2: 59 lb.ft (80 Nm) Stage 3: 83 lb.ft (112 Nm)

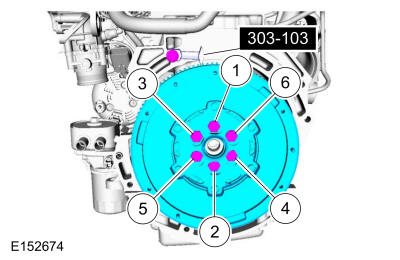

Fig 1: Flywheel Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the clutch disc and pressure plate. Refer to: CLUTCH DISC AND PRESSURE PLATE .
After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
