Engine Mount: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
1. Remove the retainers and the underbody shield reinforcement.
2. Remove the retainers and the underbody shield.
Courtesy of FORD MOTOR COMPANY

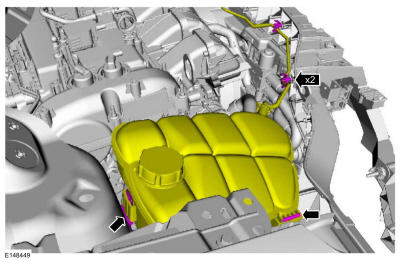

Detach the coolant tube retainers, release the tabs and position the degas bottle aside.

Courtesy of FORD MOTOR COMPANY

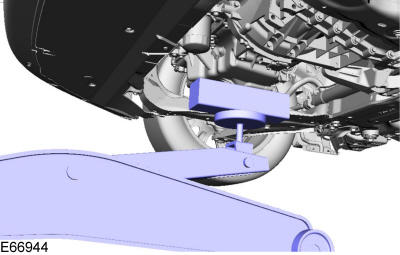

Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

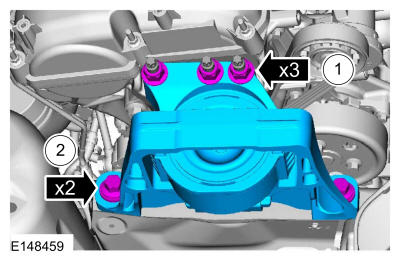

Remove the bolts, nuts and the RH engine mount.
Torque

:1: 59 lb.ft (80 Nm) 2: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
