Engine Front Cover: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
    1. Remove the retainers and the underbody shield reinforcement.
    2. Remove the retainers and the underbody shield.
    GFD264388Courtesy of FORD MOTOR COMPANY
  3. Remove the following items:

    1. RH fender splash shield. Refer to: FENDER SPLASH SHIELD .
    2. Accessory drive belt. Refer to: ACCESSORY DRIVE BELT
    3. Refer to: Accessory Drive Belt Tensioner .
    4. Refer to: Brake Vacuum Pump - 2.0L EcoBoost (184kW/250PS) - MI4 .
    5. Refer to: Valve Cover  .

  4. Remove the bolts and the rear intake camshaft cap.
    GFD266088Courtesy of FORD MOTOR COMPANY
  5. Using a wrench on the flats of the intake camshaft to prevent cam rotation, remove the brake vacuum pump adapter.
    GFD266089Courtesy of FORD MOTOR COMPANY
    • Disconnect the CKP sensor electrical connector.

    • Remove the 2 bolts and the CKP sensor.

    GFD265297Courtesy of FORD MOTOR COMPANY
  7. Turn the crankshaft clockwise until the No. 1 piston is 45 degrees BTDC using the guide holes on the engine front cover and the crankshaft pulley.
    GFD265298Courtesy of FORD MOTOR COMPANY
  8. Remove the engine plug bolt.
    GFD265299Courtesy of FORD MOTOR COMPANY
  9. Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
    GFD265300Courtesy of FORD MOTOR COMPANY
  10. NOTE: The Crankshaft TDC Timing Peg will contact the crankshaft and prevent it from turning past TDC. However, the crankshaft can still be rotated in the counterclockwise direction. The crankshaft must remain at the TDC position during the crankshaft pulley removal and installation.
    NOTE: The engine front cover is removed from graphic for clarity.

    Rotate the crankshaft clockwise until the contacts the special tool. Use Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    GFD265301Courtesy of FORD MOTOR COMPANY
  11. NOTE: The Camshaft Alignment Tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.
    NOTE: The camshaft timing slots are offset. If the Camshaft Alignment Tool cannot be installed, remove the TDC Timing Peg and rotate the crankshaft three-fourths of a revolution clockwise and repeat the previous 2 steps of this procedure.

    Install Special Service Tool: 303-1565 Alignment Tool, Camshaft.

    GFD265798Courtesy of FORD MOTOR COMPANY
  12. NOTE: The crankshaft must remain in the TDC position during removal of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Crank Damper Holding Tool and the bolt should be removed using an air impact wrench (1/2-in drive minimum).
    NOTE: If equipped, the crankshaft sprocket diamond washer may come off with the crankshaft pulley.

    • Using the special tool, remove the bolt, washer and the crankshaft pulley. Use Special Service Tool: 303-1689 Holding Tool, Crank Damper.

    • Discard the bolt.

    GFD265304Courtesy of FORD MOTOR COMPANY
  13. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

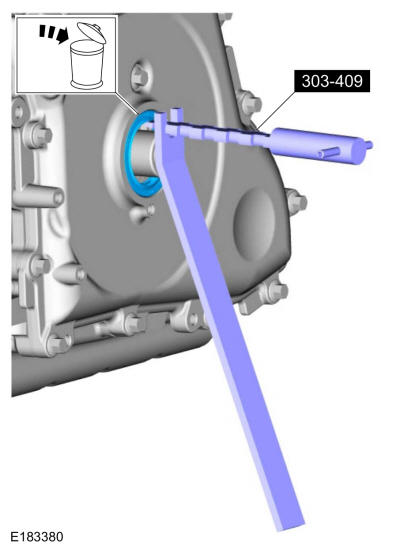

    Using the special tool, remove and discard the crankshaft front seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

    GFD265333Courtesy of FORD MOTOR COMPANY
  14. NOTE: Early build engines are equipped with a diamond washer on each side of the crankshaft sprocket. Late build engines have a laser etched crankshaft sprocket and do NOT require diamond washers. If an early build engine requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.

    If equipped, remove the diamond washer.

    GFD265305Courtesy of FORD MOTOR COMPANY
  15. Remove the engine mount. Refer to: Engine Mount  .
  16. Remove the bolts and the coolant pump pulley.
    GFD266090Courtesy of FORD MOTOR COMPANY
  17. Detach the wiring harness retainers.
    GFD266091Courtesy of FORD MOTOR COMPANY

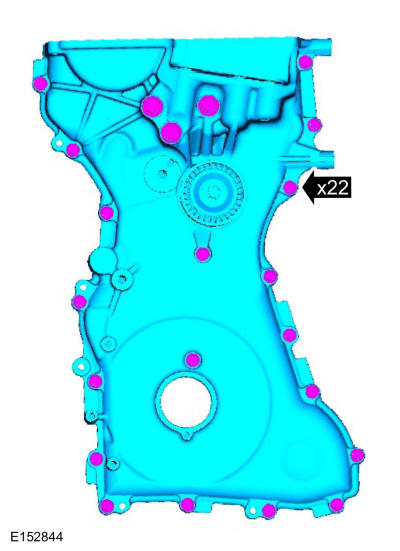

  18. Remove the bolts and the engine front cover.
    GFD266092Courtesy of FORD MOTOR COMPANY

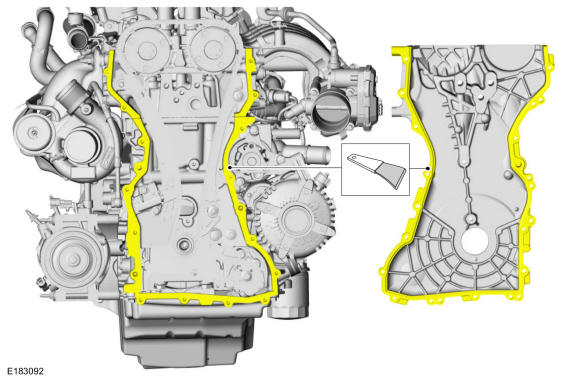

  19. Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material

    : Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material

    : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material

    : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

GFD265846Courtesy of FORD MOTOR COMPANY
