Crankshaft Front Seal: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Remove the through-bolt from the Camshaft Front Oil Seal Installer.

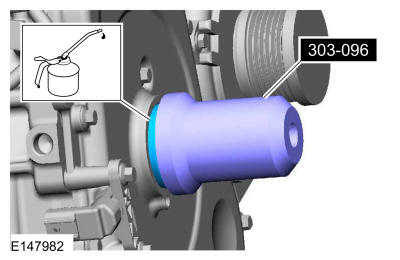

Using the special tool, lubricate and install the crankshaft front seal. Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

Material

: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY
Install the crankshaft pulley. Refer to: Crankshaft Pulley .
