Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: Align the piston-to-connecting rod orientation marks made during disassembly.

    Install the piston to the connecting rod.

    GFD266303Courtesy of FORD MOTOR COMPANY
  2. Apply the specified lubricant to the specified component.

    Material

    : Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    GFD266304Courtesy of FORD MOTOR COMPANY
  3. Install the new piston pin retainers.
    GFD266305Courtesy of FORD MOTOR COMPANY
  4. Apply the specified lubricant to the specified component.

    Material

    : Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    GFD266306Courtesy of FORD MOTOR COMPANY

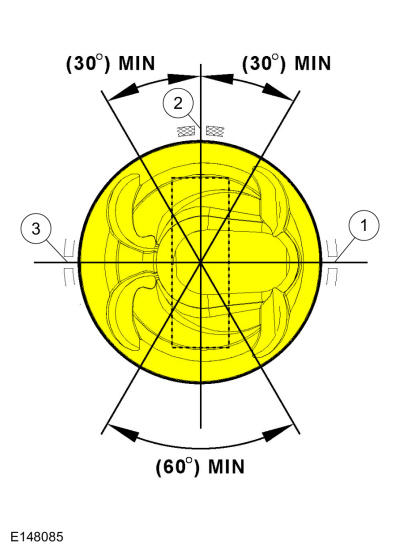

  5. NOTE: Align the piston rings on the piston.

    1. Upper oil control segment ring gap location.
    2. Oil control spacer gap location.
    3. Lower oil control segment ring gap location.

GFD266307Courtesy of FORD MOTOR COMPANY
