Cylinder Head: Assembly

WARNING: This page is about a different variant/trim than selected.

NOTE: If installing the original valves, make sure the valves are installed in the same position from which they were removed. Coat the valve stems with clean engine oil.

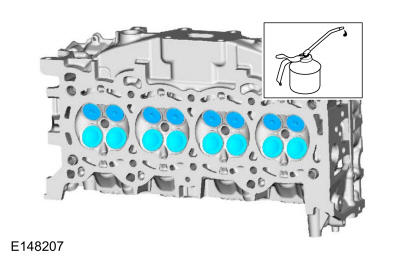

Apply the specified lubricant to the specified component. Lubricate with clean engine oil and install the valve into the cylinder head.

Material

: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY
Lubricate with clean engine oil and using the special tool, install the valve stem seal. Use Special Service Tool: 303-470 (T94P-6510-CH) Installer, Valve Stem Oil Seal.
Material

: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY
NOTE: Use a small screwdriver and multi-purpose grease to install the valve collets. Check the seating of the valve collet.

Using the special tool, install the valve spring, the valve spring retainer and the valve spring retainer keys. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor., 303-350 (T89P-6565-A) Compressor, Valve Spring., 303-472 (T94P-6565-AH) Adapter, Valve Spring Compressor., 303-1249 Valve Spring Compressor.

Material

: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

Courtesy of FORD MOTOR COMPANY

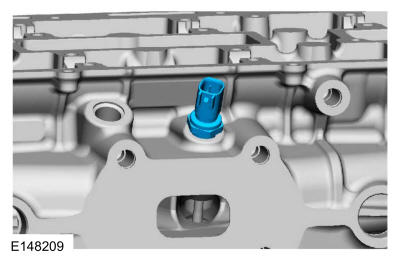

Install a new CHT sensor.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Replace gasket if damaged.

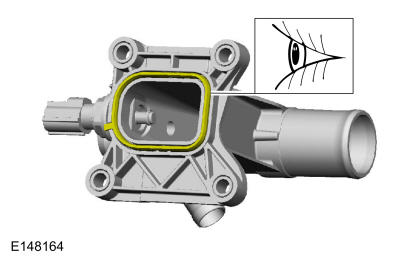

Inspect the coolant outlet gaskets and replace as necessary.

Courtesy of FORD MOTOR COMPANY
Install the coolant outlet and the bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: RH shown, LH similar.

Install the lifting brackets and the bolts.

Torque

: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY
