Engine - Overview: Overview
WARNING: This page is about a different variant/trim than selected.
The 2.0L Gasoline Turbocharged Direct Injection (GTDI) 4-cylinder engine has the following features:
- Dual overhead camshafts
- Four valves per cylinder
- Composite intake manifold
- Aluminum cylinder head
- Aluminum cylinder block
- GTDI
- Twin Independent Variable Camshaft Timing (Ti-VCT)
Engine Identification
Always refer to these labels when installation of new parts is necessary or when checking engine calibrations. The engine parts often differ within a CID family. Verification of the identification codes will make sure the correct parts are obtained. These codes contain all the pertinent information relating to the dates, optional equipment and revisions.

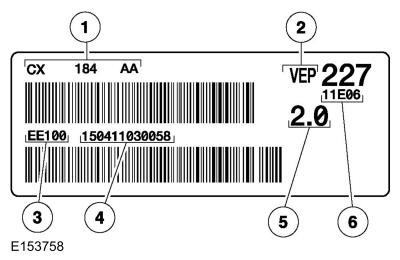

Engine Code Information Label
| Item | Description |
|---|---|
| 1 | Engine part number |
| 2 | Valencia Engine Plant |
| 3 | Plant code |
| 4 | Engine serial number |
| 5 | Engine displacement |
| 6 | Engine build date YYM(A-L)DD |

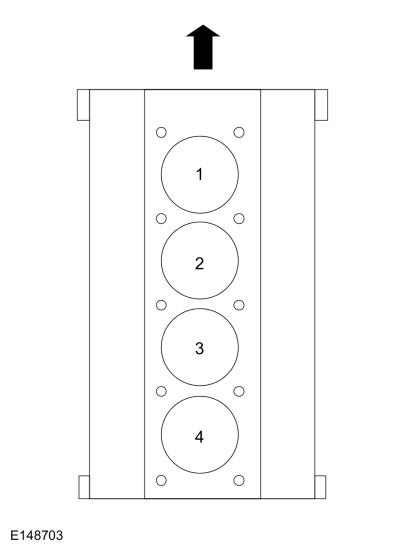

Engine Cylinder Identification
