Ignition Coil-On-Plug: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the oil filler cap and then remove the engine appearance cover. Install the oil filler cap.
    GFD264596Courtesy of FORD MOTOR COMPANY
  2. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
    NOTE: If equipped with a sliding cover over the locking tab, then slide the cover back to gain access to the tab.

    1. Slide the red locking tab (CPA) back away from the ignition coil-on-plug, depress the latch and then remove the connector from the ignition coil-on-plug.
    2. Remove the ignition coil-on-plug bolts.
    3. Using compressed air, remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs. Remove the ignition coil-on-plugs.

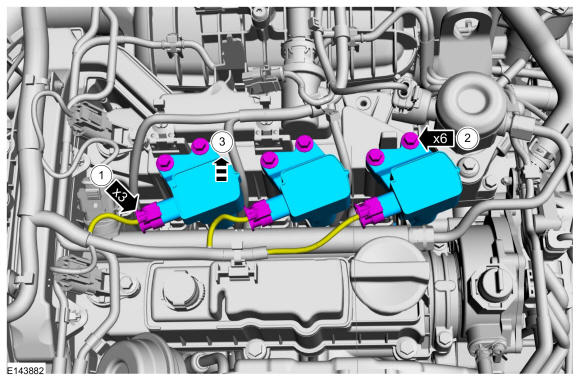

GFD267221Courtesy of FORD MOTOR COMPANY
