Ignition Coil-On-Plug: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Inspect and replace any ignition coil-on-plugs that have rubber boots with cracks, rips or tears.
    GFD267222Courtesy of FORD MOTOR COMPANY
  2. NOTE: Install the ignition coil-on-plug bolts finger tight at this stage.

    1. Install the ignition coil-on-plugs.
    2. Install and tighten the ignition coil-on-plug bolts.

      Torque

      : 89 lb.in (10 Nm)

    3. Push the wire harness side connector onto the ignition coil-on-plug connector until locked. A clicking sound will be heard when fully seated. Slide the red locking tab (CPA) toward the ignition coil-on-plug until a second clicking sound is heard.

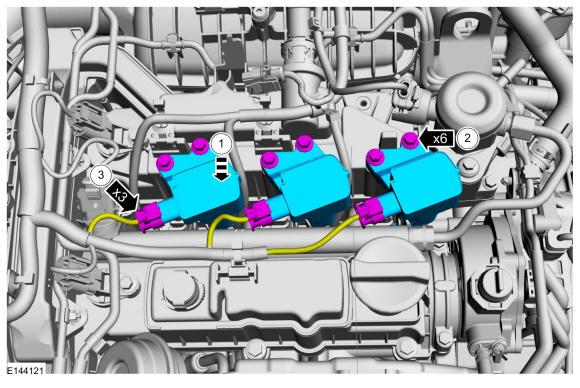

    GFD267223Courtesy of FORD MOTOR COMPANY
  3. Remove the oil filler cap and then install the engine appearance cover. Install the oil filler cap
GFD264596Courtesy of FORD MOTOR COMPANY
