Turbocharger Coolant Supply Tube: Installation

WARNING: This page is about a different variant/trim than selected.

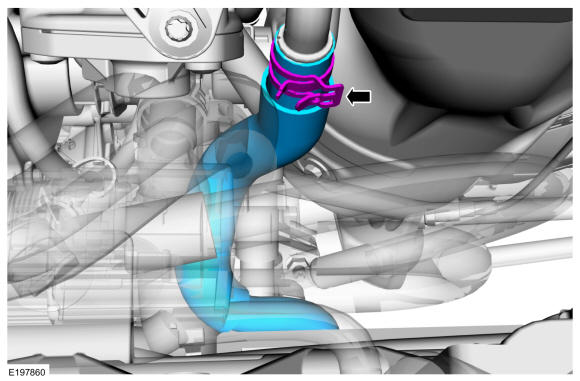

  1. Install and connect the turbocharger coolant supply tube and the hose clamp. Use the General Equipment: Hose Clamp Remover/Installer
    GFD267089Courtesy of FORD MOTOR COMPANY

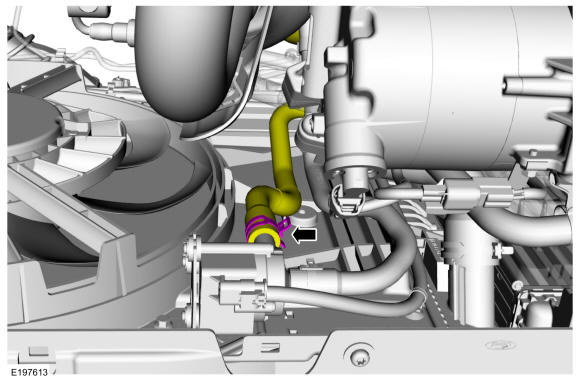

  2. Connect the turbocharger coolant supply tube and the hose clamp. Use the General Equipment: Hose Clamp Remover/Installer
    GFD267088Courtesy of FORD MOTOR COMPANY
  3. Fill and bleed the cooling system. Refer to: COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING .
