Timing Belt: Installation

WARNING: This page is about a different variant/trim than selected.

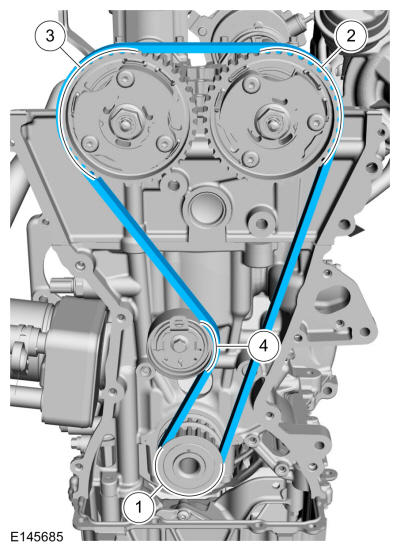

  1. Install the timing belt in sequence shown.
    GFD264901Courtesy of FORD MOTOR COMPANY

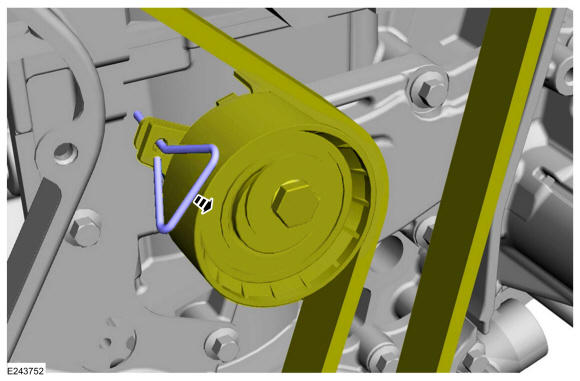

  2. WARNING: Take extra care when handling the compressed spring.

    Remove the locking pin.

    GFD264902Courtesy of FORD MOTOR COMPANY

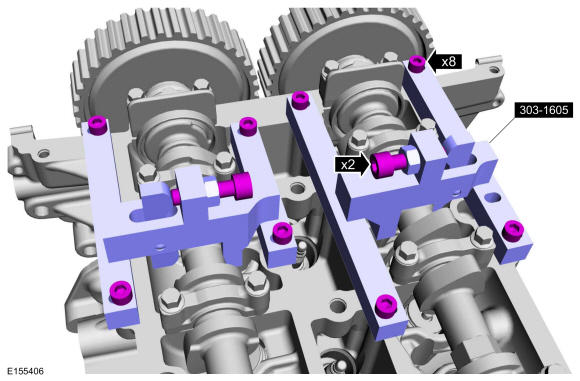

  3. Remove Special Service Tool: 303-1605 Alignment Tool, Camshaft.
    GFD264743Courtesy of FORD MOTOR COMPANY
  4. NOTE: Make sure that a new component is installed.
    NOTE: Only tighten the bolt finger tight at this stage.
    GFD264903Courtesy of FORD MOTOR COMPANY

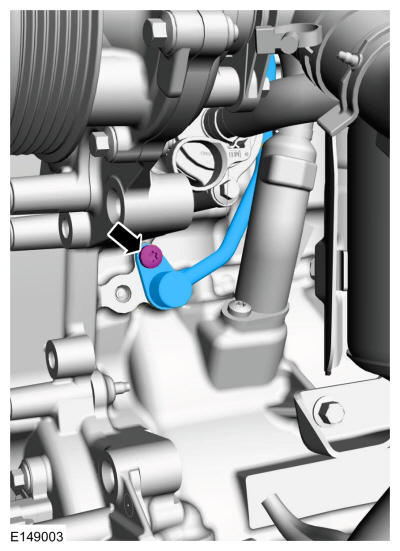

  5. NOTE: Only tighten the bolt finger tight at this stage.
    GFD264904Courtesy of FORD MOTOR COMPANY

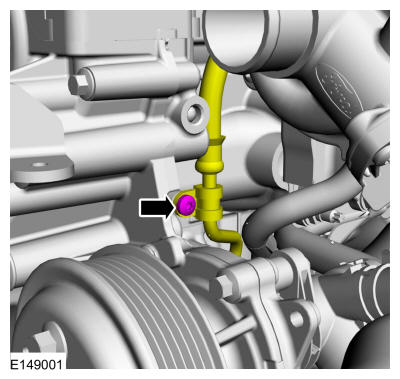

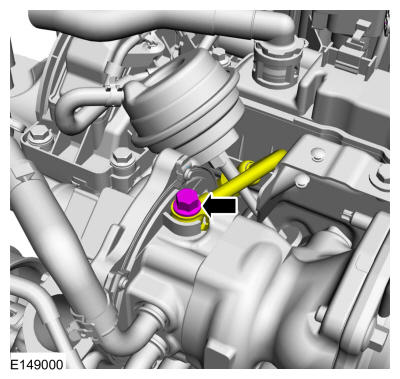

  6. NOTE: Only tighten the bolt finger tight at this stage.
    GFD264905Courtesy of FORD MOTOR COMPANY

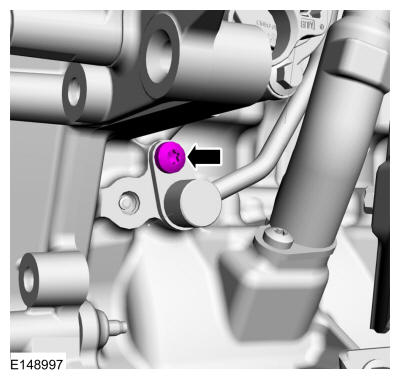

  7. Torque

    : 89 lb.in (10 Nm)

    GFD264906Courtesy of FORD MOTOR COMPANY

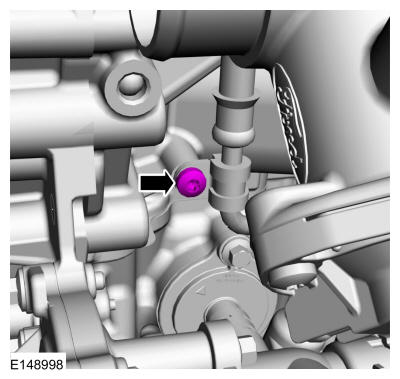

  8. Torque

    : 89 lb.in (10 Nm)

    GFD264907Courtesy of FORD MOTOR COMPANY

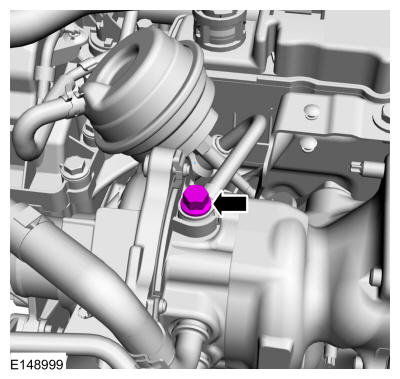

  9. Torque

    : 22 lb.ft (30 Nm)

    GFD264908Courtesy of FORD MOTOR COMPANY
  10. Install the engine front cover. Refer to: Engine Front Cover  .
