Oil Pump Drive Belt - 6-Speed Manual Transmission - B6: Installation

WARNING: This page is about a different variant/trim than selected.
  1. To install, reverse the removal procedure.

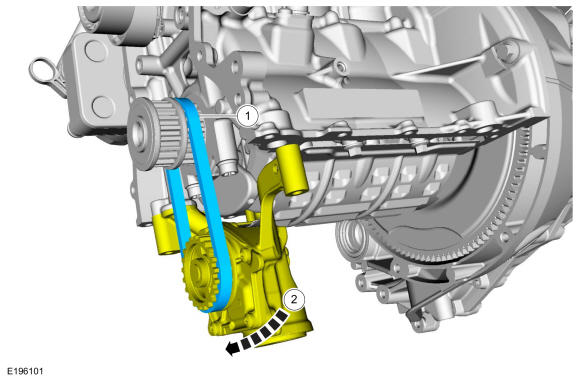

  2. Install the oil pump drive belt and position the oil pump.
GFD264898Courtesy of FORD MOTOR COMPANY
