Oil Pump Drive Belt - 6-Speed Automatic Transmission - 6F15: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the oil pan. Refer to: Oil Pan .
-
NOTE: Take extra care when handling the component.
Remove the oil pump cover.
- Remove the timing belt. Refer to: Timing Belt .
- Remove the timing belt sprocket.
- Install a 4 mm drill bit into the balance shaft gear. Use the General Equipment: 4 mm Drill Bit

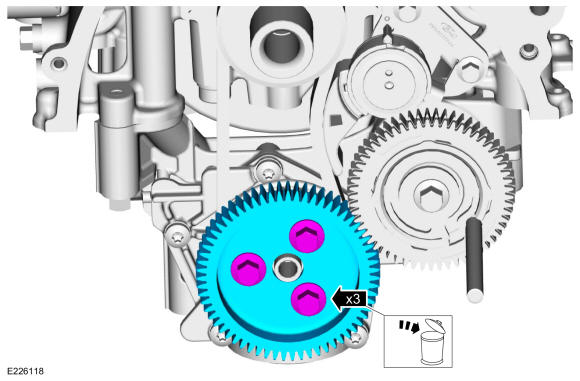

- Remove and discard the bolts.
- Remove the oil pump gear.
-
- Using a suitable tool, rotate the oil pump belt tensioner.
- Remove the oil pump belt.
