Oil Pump Drive Belt - 6-Speed Automatic Transmission - 6F15: Installation

WARNING: This page is about a different variant/trim than selected.

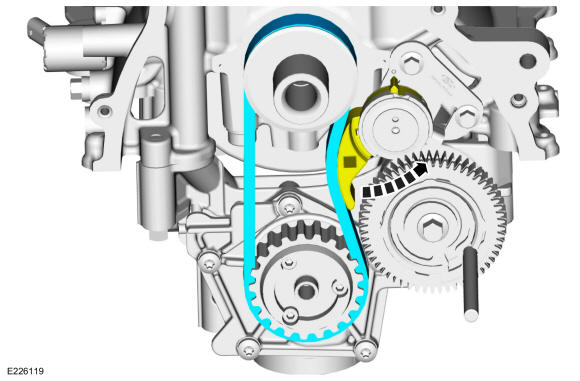

1. Using a suitable tool, rotate the oil pump belt tensioner.
2. Install the oil pump belt.
Courtesy of FORD MOTOR COMPANY

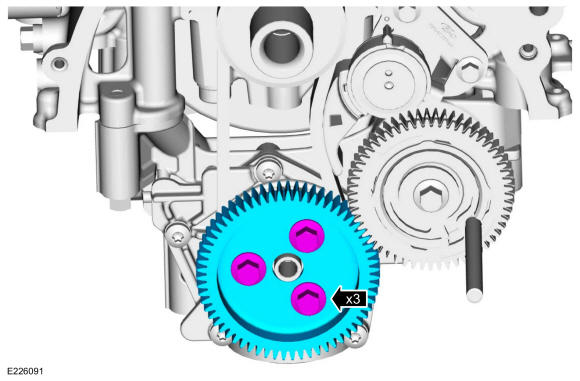

Install the oil pump gear.
- Install new bolts.
  Torque

  : 26 lb.ft (35 Nm)
Courtesy of FORD MOTOR COMPANY

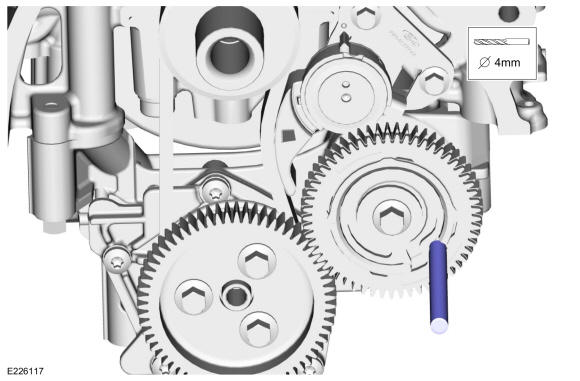

Remove the 4 mm drill bit. Use the General Equipment: 4 mm Drill Bit

Courtesy of FORD MOTOR COMPANY

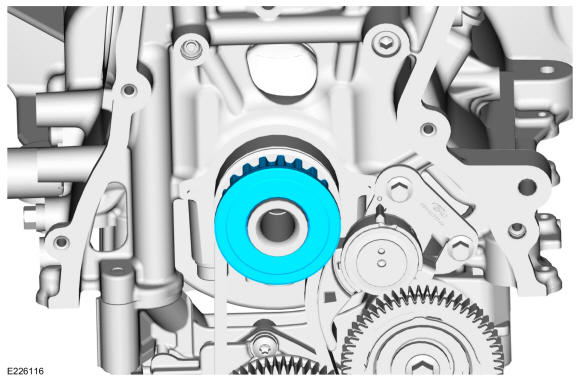

Install the timing belt sprocket.

Courtesy of FORD MOTOR COMPANY
Install the timing belt. Refer to: Timing Belt .
NOTE: Make sure that the component is correctly installed.

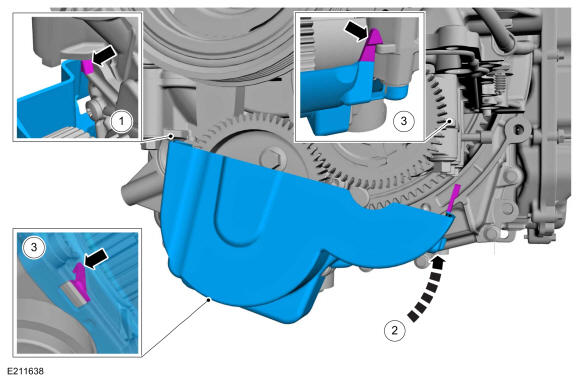

Install the oil pump cover.

Courtesy of FORD MOTOR COMPANY
Install the oil pan. Refer to: Oil Pan .
