Oil Pump - 6-Speed Manual Transmission - B6: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the oil pan. Refer to: Oil Pan .
- Remove the oil pump cover.

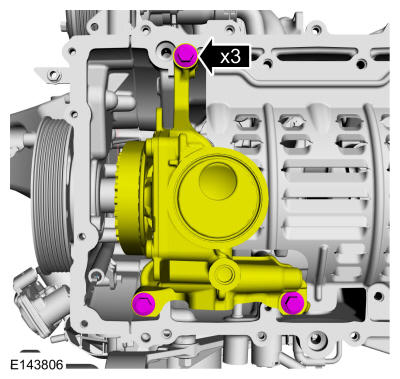

- Remove the oil pump bolts.
Torque
: 17 lb.ft (23 Nm)

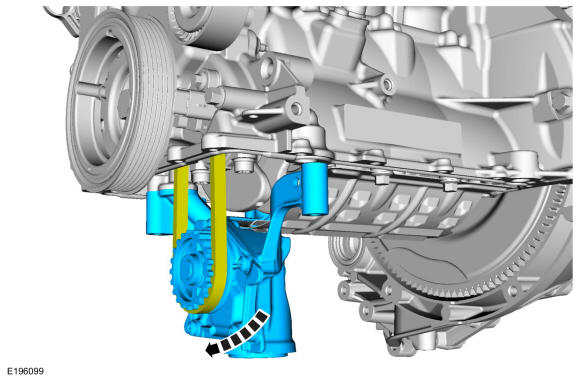

- Remove the oil pump.
