Oil Pump - 6-Speed Automatic Transmission - 6F15: Installation

WARNING: This page is about a different variant/trim than selected.

Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
NOTE: Make sure that new bolts are installed.

NOTE: Only tighten the bolts finger tight at this stage.

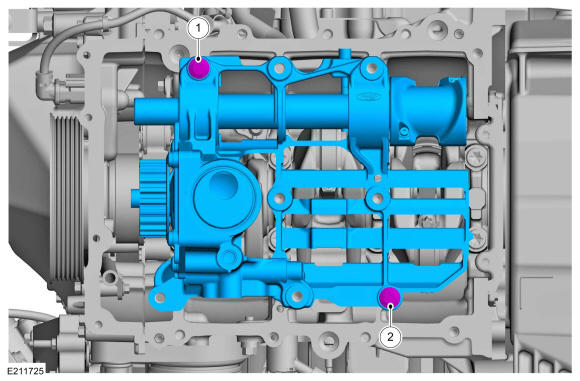

Install the oil pump and the bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new bolts are installed.

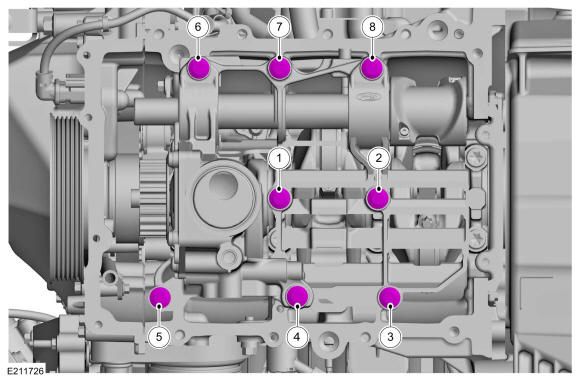

Install the remaining bolts and tighten in sequence shown.

Torque

:1-3, M8x50: 17 lb.ft (23 Nm)4, M8x65: 17 lb.ft (23 Nm) 5, M8x50: 17 lb.ft (23 Nm) 6-8, M8x65: 17 lb.ft (23 Nm)

Fig 1: Oil Pump Bolts Tightening Sequence (6F15 Transmission)
Courtesy of FORD MOTOR COMPANY

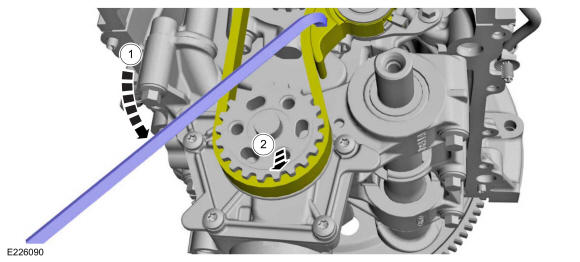

1. Using a suitable tool, rotate the oil pump belt tensioner.
2. Slide the belt onto the oil pump sprocket.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the component is installed to the position noted before removal.

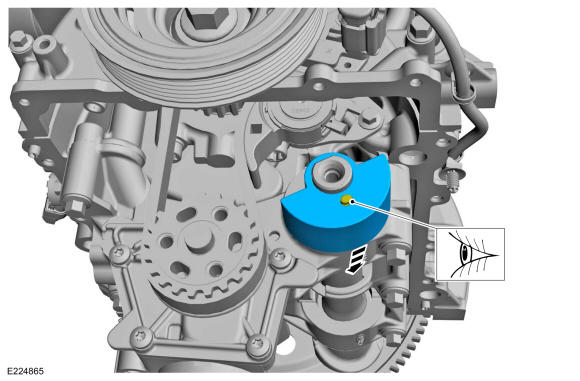

Install the balance shaft weight.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new bolt is installed.

NOTE: Make sure that the component is correctly installed.

NOTE: Only tighten the bolt finger tight at this stage.

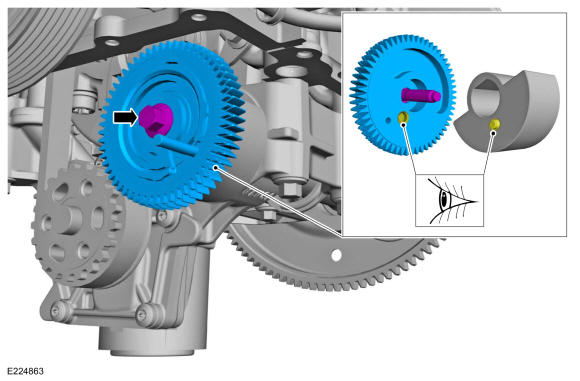

Install the balance shaft gear and the bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new bolts are installed.

NOTE: Install all the bolts finger tight before final tightening.

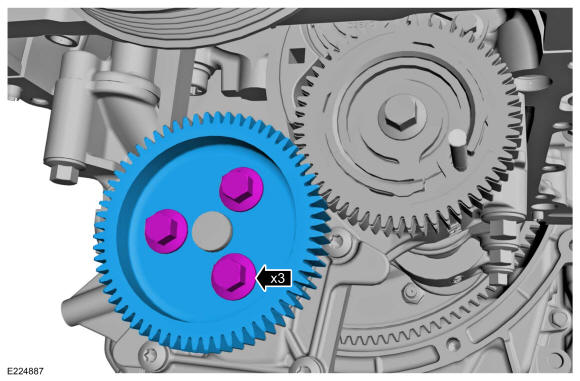

Install the oil pump gear and the bolts.

Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

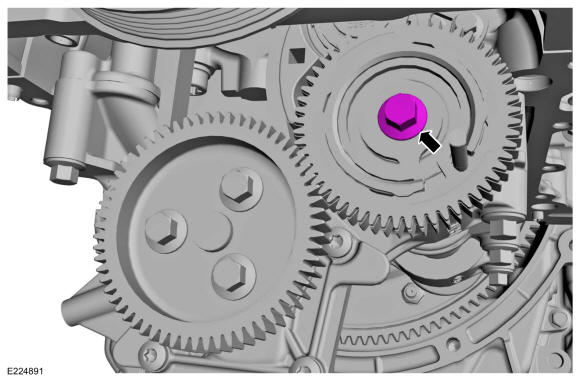

Tighten the balance shaft gear bolt.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

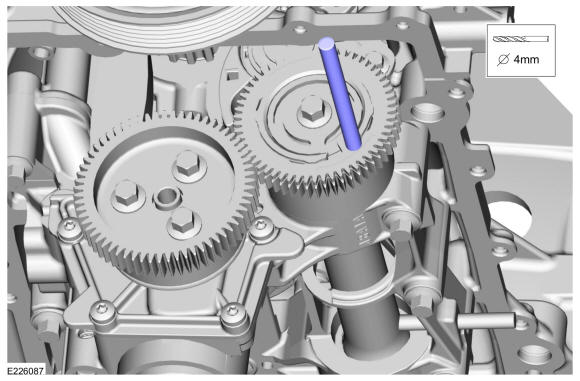

Remove the 4 mm drill bit. Remove the General Equipment: 4 mm Drill Bit

Courtesy of FORD MOTOR COMPANY

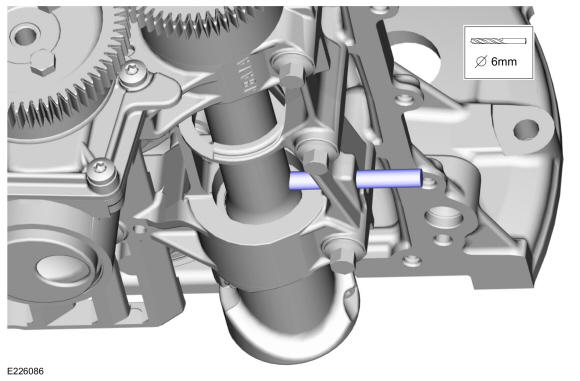

Remove the 6 mm drill bit. Remove the General Equipment: 6 mm Drill Bit

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the component is correctly installed.

Install the oil pump cover.

Courtesy of FORD MOTOR COMPANY

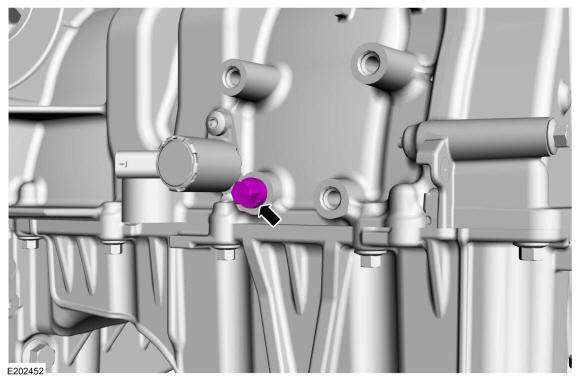

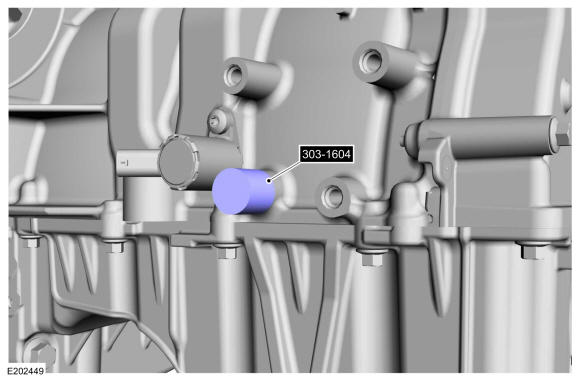

Remove Special Service Tool: 303-1604 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY
Torque
: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the oil pan. Refer to: Oil Pan .
