Oil Pressure Switch: Installation

WARNING: This page is about a different variant/trim than selected.

- Install the oil pressure switch finger-tight.
  Torque

  :Stage 1: 44 lb.in (5 Nm) Stage 2: 177 lb.in (20 Nm)

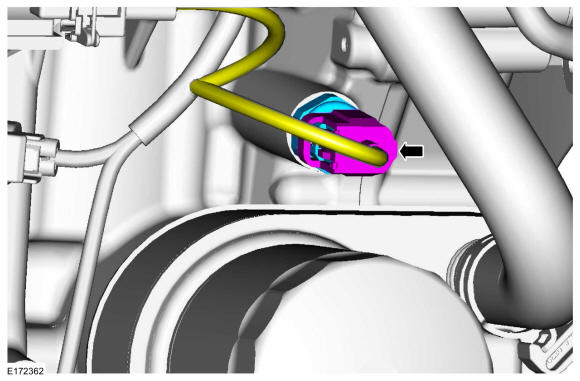

- Connect the oil pressure switch electrical connector.
Courtesy of FORD MOTOR COMPANY
If equipped, install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
If equipped, install the deflector and the retainers.

Courtesy of FORD MOTOR COMPANY
