Oil Pan: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the catalytic converter. Refer to: CATALYTIC CONVERTER .
-
WARNING: Be prepared to collect escaping fluid.
Remove the drain plug, drain engine oil and install drain plug. Use the General Equipment: Oil Drain Equipment
Torque
: 18 lb.ft (25 Nm)
-
WARNING: Be prepared to collect escaping fluid.
Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

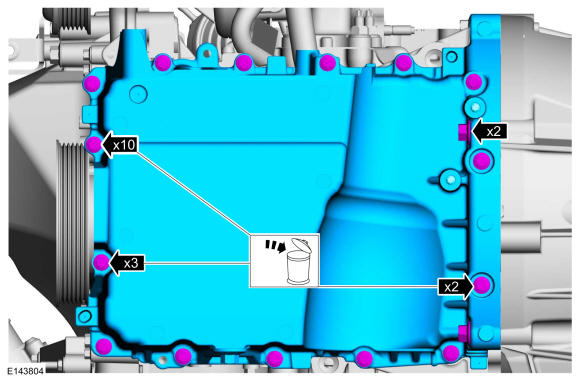

6-Speed Manual Transmission - B6
- Remove the bolts and the oil pan.

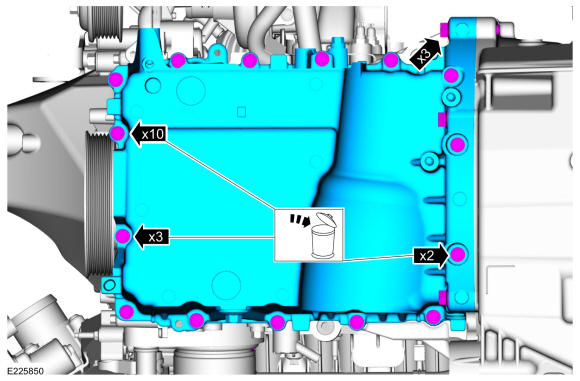

6-Speed Automatic Transmission - 6F15
- Remove the bolts and the oil pan.
