Oil Cooler: Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped, remove the retainers and the deflector.

Courtesy of FORD MOTOR COMPANY
If equipped, remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

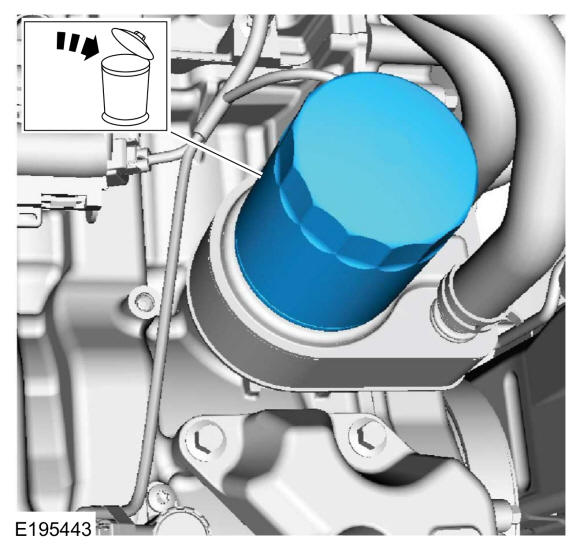

Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY

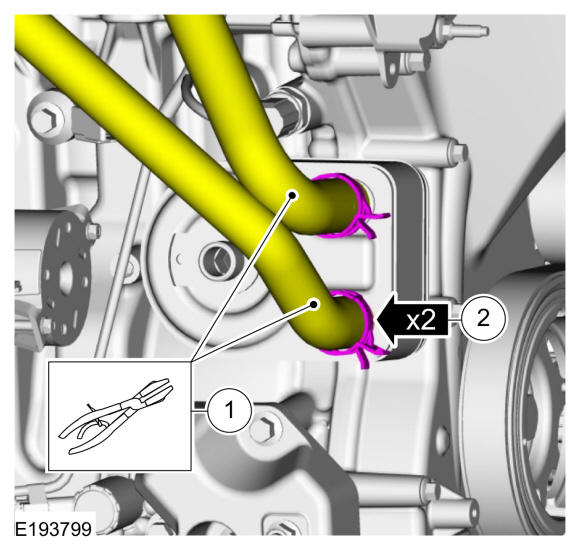

1. Using hose locking pliers, clamp the oil cooler coolant hoses. Use the General Equipment: Locking Pliers
2. Remove the oil cooler coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

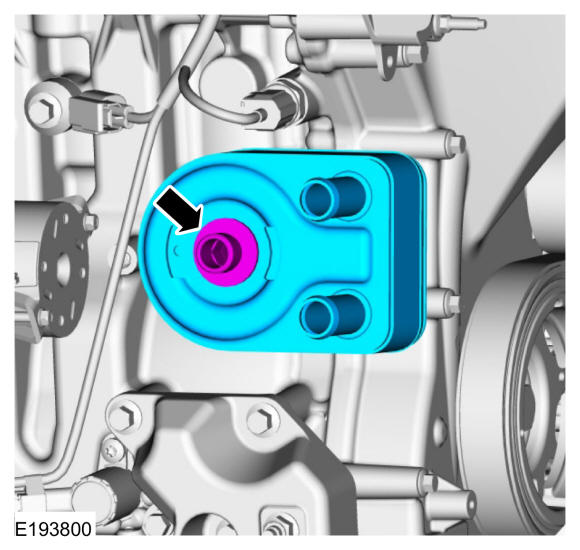

Remove the bolt and the oil cooler.

Courtesy of FORD MOTOR COMPANY
