Oil Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

Install the oil cooler and the bolt.
Torque

: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

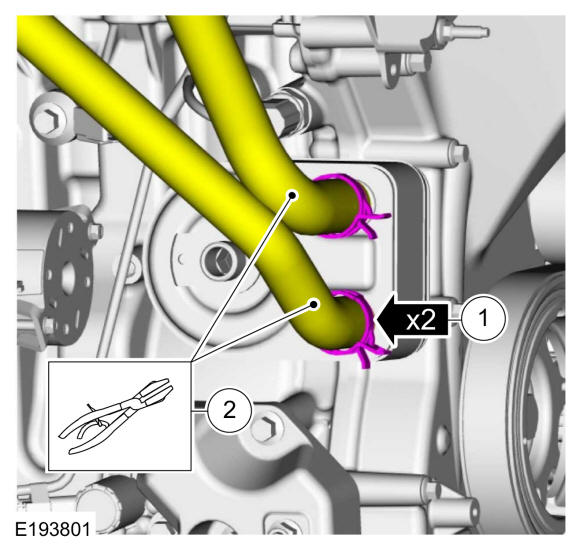

1. Install the oil cooler coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
2. Remove the hose locking pliers.
Courtesy of FORD MOTOR COMPANY

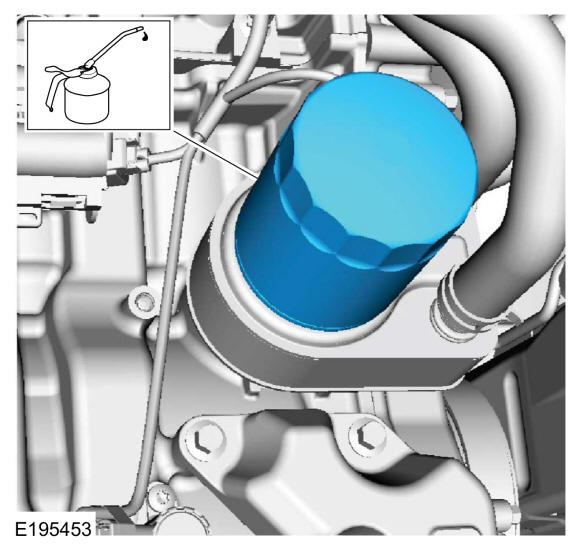

NOTE: Lubricate the engine oil filter seal with clean engine oil.

Install a new engine oil filter.

Torque

: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped, install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
If equipped, install the deflector and the retainers.

Courtesy of FORD MOTOR COMPANY
Inspect and adjust the engine oil level.
Material

: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
Bleed the engine cooling system. Refer to: Cooling System Draining, Filling and Bleeding .
