Removal And Installation: Flexplate: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the transmission. Refer to: TRANSMISSION .
-
NOTE: Do not reuse the flexplate bolts.

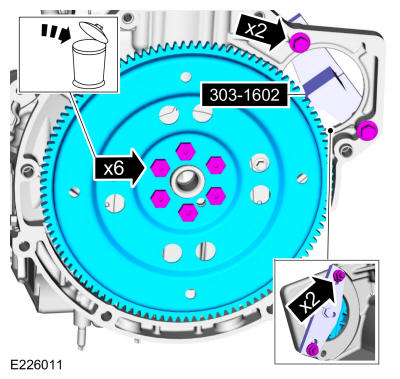

- Install Special Service Tool: 303-1602 Locking Tool, Crankshaft.
- Remove the bolts and the flexplate.
- Discard the bolts.
- Remove Special Service Tool: 303-1602 Locking Tool, Crankshaft.
