Removal And Installation: Flexplate: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure that new bolts are installed.
- Install the flexplate and the bolts finger-tight.
- Install Special Service Tool: 303-1602 Locking Tool, Crankshaft.
- Tighten the flexplate bolts in sequence shown.
  Torque

  : 37 lb.ft (50 Nm)
- Remove Special Service Tool: 303-1602 Locking Tool, Crankshaft.

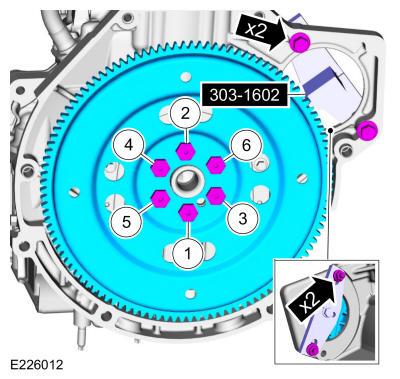

Fig 1: Flexplate Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the transmission. Refer to: TRANSMISSION .
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
