Engine Mount: Installation

WARNING: This page is about a different variant/trim than selected.

To install, reverse the removal procedure.

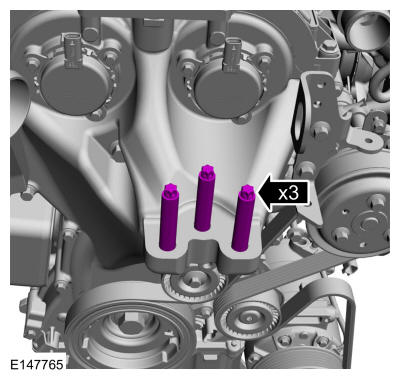

Tighten the RH engine mount studs.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

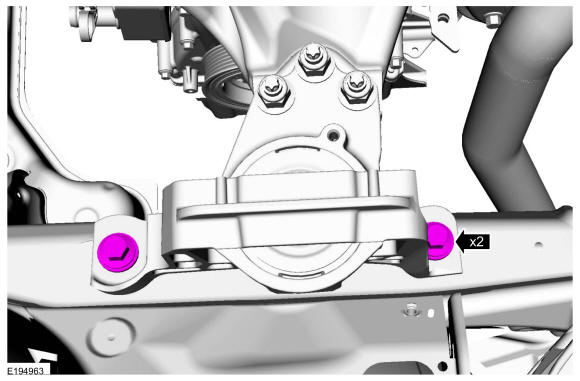

1. Install the RH engine mount and the nuts.
  Torque

  : 85 lb.ft (115 Nm)
2. NOTE: Only tighten the bolts finger tight at this stage.

  Install the RH engine mount bolts finger-tight.
Courtesy of FORD MOTOR COMPANY
Release the jack. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
Tighten the RH engine mount bolts.
Torque

: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
