Engine Front Cover: Installation

WARNING: This page is about a different variant/trim than selected.

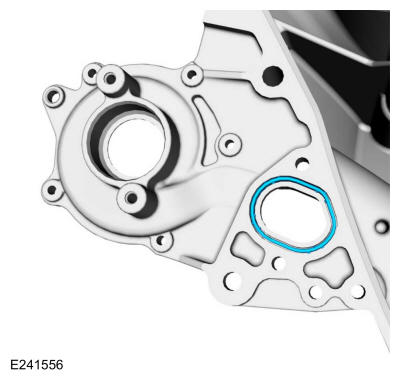

Install a new gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: The component must be installed within 10 minutes of applying the sealant.

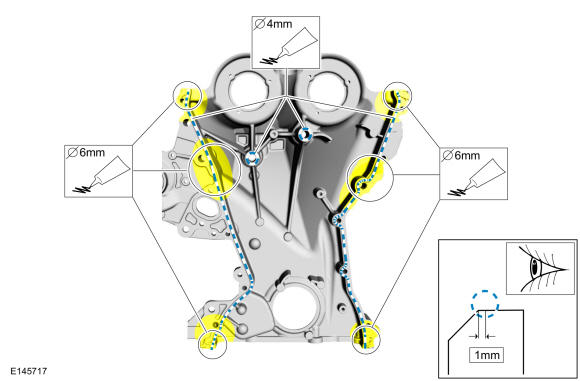

Apply beads of silicone sealant that are 4 mm (0.157 in) and 6 mm (0.236 in) as shown in the graphic.

Material

: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
NOTE: The component must be installed within 10 minutes of applying the sealant.

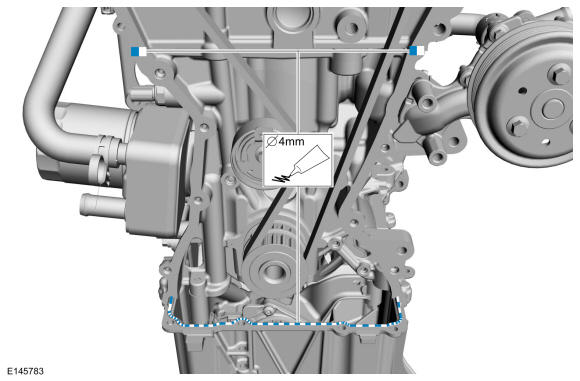

Apply beads of silicone sealant that are 4 mm (0.157 in) on the edge of the engine oil pan.

Material

: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
Install the engine front cover, bolts and tighten in the sequence shown.
1. NOTE: Make sure that new components are installed.

  Torque

  :1-2, M6x60: 44 lb.in (5 Nm)
2. NOTE: Make sure that new components are installed.

  Torque

  :3-6, M10x95: 89 lb.in (10 Nm)
3. NOTE: Make sure that new components are installed.

  Torque

  :7-16 M6x60: 44 lb.in (5 Nm)
4. Torque
  :17-19 M6x60: 44 lb.in (5 Nm) 20 M6x75: 44 lb.in (5 Nm)
5. Torque
  :3-6: 30 lb.ft (40 Nm)
6. Torque
  :3-4:Stage 1: 52 lb.ft (70 Nm) Stage 2: 90°
7. Torque
  :5-6:Stage 1: 52 lb.ft (70 Nm) Stage 2: 90°
8. 1-2
  Torque

  :Stage 1: 80 lb.in (9 Nm) Stage 2: 90°
9. 7-20
  Torque

  :Stage 1: 133 lb.in (15 Nm) Stage 2: 90°

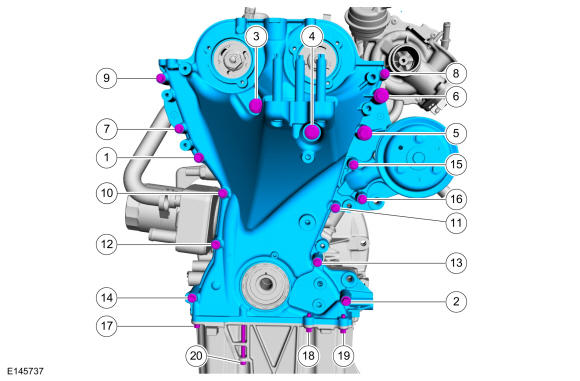

Fig 1: Engine Front Cover Bolt Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install Special Service Tool: 303-1606 Locking Tool, Variable Camshaft Timing.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
1. Turn until resistance is felt.
2. Torque
  : 133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY
Tighten the RH engine mount studs.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the RH engine mount and the nuts.
  Torque

  : 85 lb.ft (115 Nm)
2. Install the RH engine mount bolts finger-tight.
Courtesy of FORD MOTOR COMPANY
Release the jack. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
Tighten the RH engine mount bracket bolts.
Torque

: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

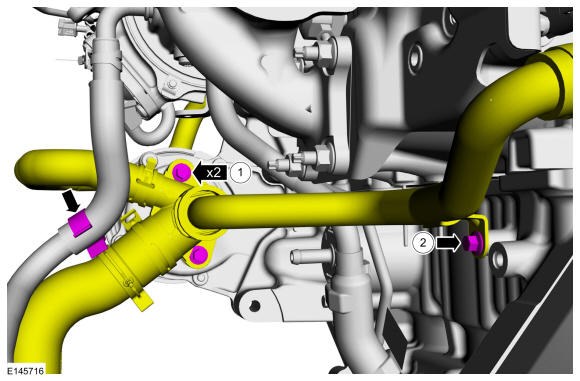

Install the coolant hose assembly, the bolts and the retainer.
Torque

:1: 89 lb.in (10 Nm)2: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

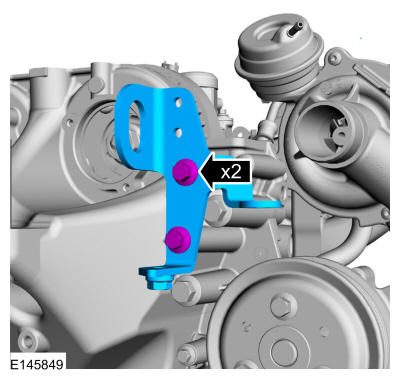

Install the engine bracket and the bolts.
Torque

: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

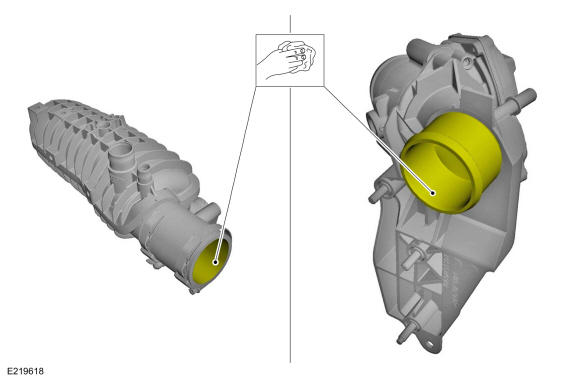

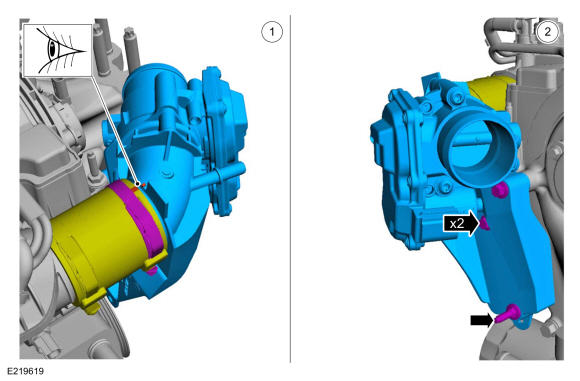

NOTE: Make sure that the mating faces are clean and free of foreign material.

Courtesy of FORD MOTOR COMPANY
1. NOTE: Make sure that the component is correctly installed.
2. NOTE: Only tighten the bolts finger tight at this stage.
Courtesy of FORD MOTOR COMPANY

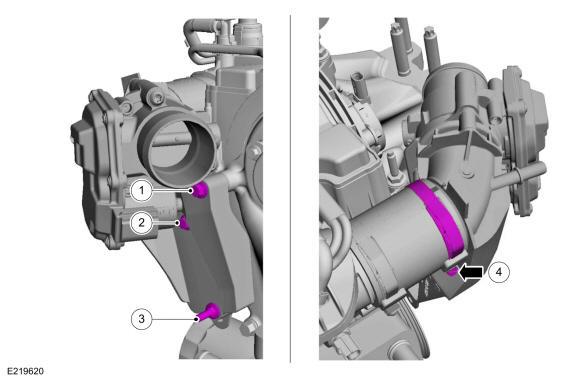

Torque
:1-3: 89 lb.in (10 Nm) 4: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

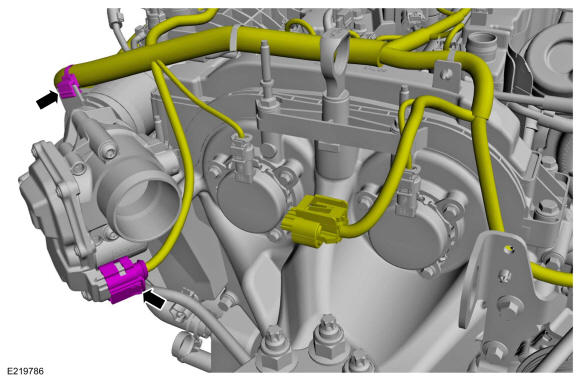

Connect the throttle body electrical connector and attach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

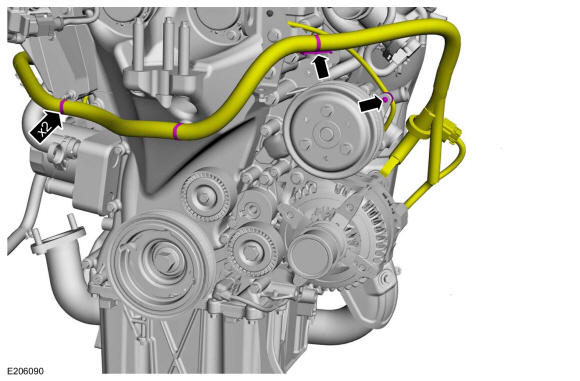

Attach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

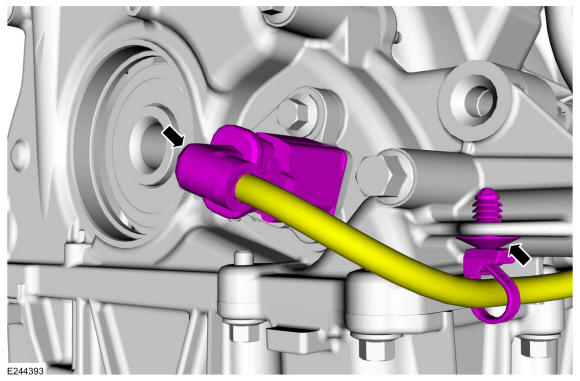

1. Connect the CKP sensor electrical connector.
2. Attach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY
1. Install the CAC outlet pipe bracket bolt.
  Torque

  : 97 lb.in (11 Nm)
2. Tighten the CAC outlet pipe clamps.
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Generator - 1.0L EcoBoost (92kW/125PS) .
2. Refer to: Catalytic Converter .
3. Refer to: Valve Cover .
4. Refer to: Crankshaft Front Seal .
NOTE: Be prepared to collect escaping fluid.

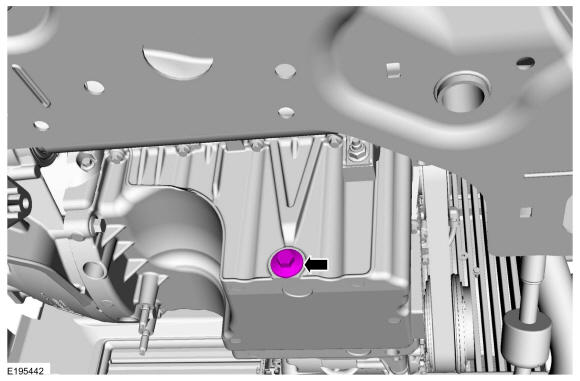

Remove the drain plug, drain engine oil and install drain plug. Use the General Equipment: Oil Drain Equipment

Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

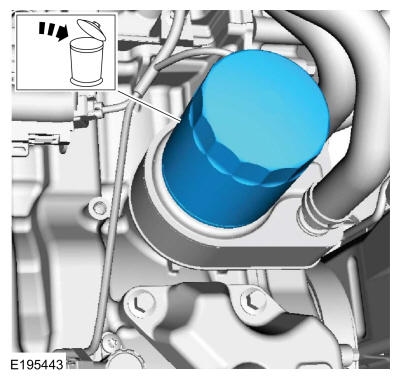

Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the engine oil filter seal with clean engine oil.

Install a new engine oil filter.

Material

: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Torque

: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

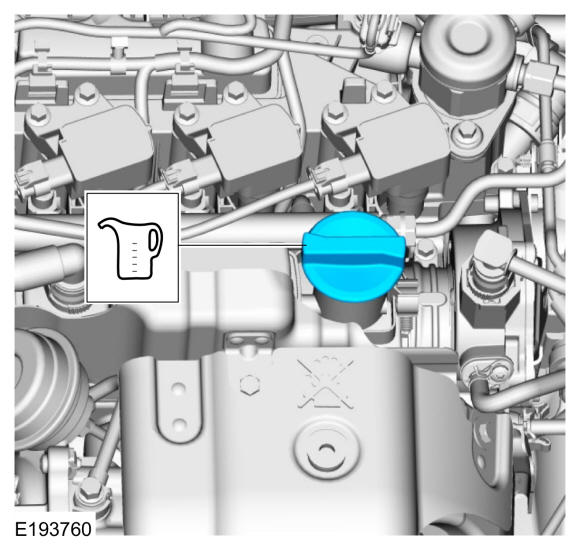

Fill the engine with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

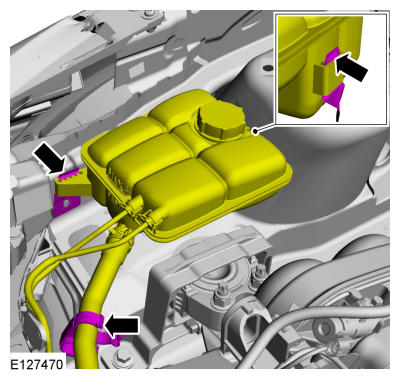

Fill and bleed the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
