Cylinder Head: Installation

WARNING: This page is about a different variant/trim than selected.

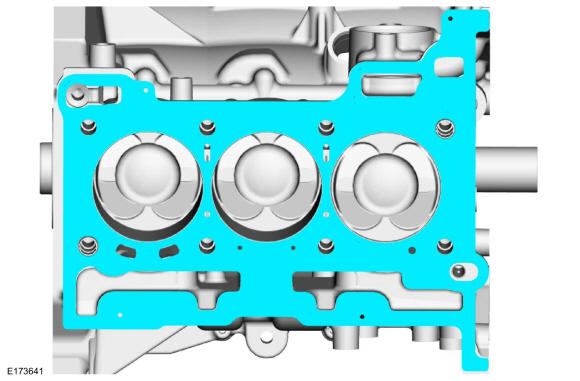

Install the cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that no fluids are present in the cylinder head bolt threaded bores.
1. Install the cylinder head.
2. NOTE: Make sure that new bolts are installed.

  NOTE: Only tighten the bolts finger tight at this stage.

  Install the cylinder head bolts.
3. Tighten the cylinder head bolts in sequence shown. Use the General Equipment: Polydrive Bit Socket
  Torque

  :Stage 1: 89 lb.in (10 Nm) Stage 2: 30 lb.ft (40 Nm) Stage 3: Loosen: 45° Stage 4: 22 lb.ft (30 Nm) Stage 5: 90° Stage 6: 90°

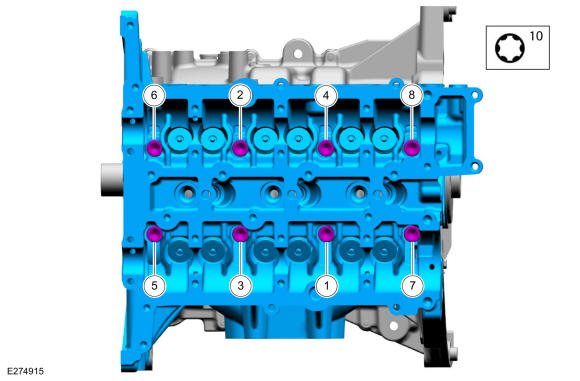

Fig 1: Cylinder Head Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: Install the components in their original position.

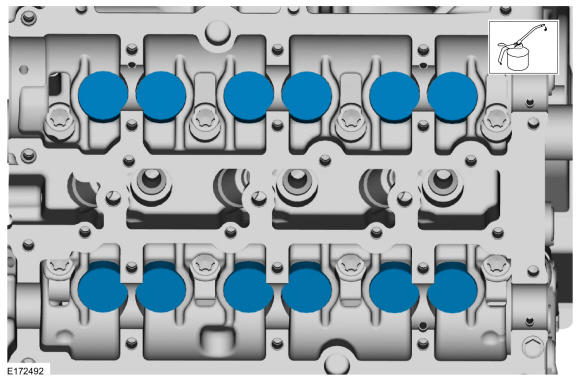

Lubricate with clean engine oil and install the valve tappets.

Material

: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY
Position the thermostat housing and install the bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Position the coolant hose and connect the coupling.

Courtesy of FORD MOTOR COMPANY
If equipped, connect the CHT sensor electrical connector and attach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY
Position the ground wire and install the bolt.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Intake Manifold .
2. Refer to: Camshafts .
3. Refer to: Turbocharger .
Fill the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
