Crankshaft Front Seal: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the engine appearance cover.
    GFD264596Courtesy of FORD MOTOR COMPANY

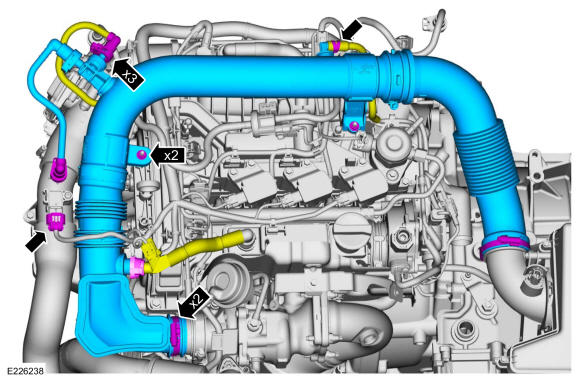

  3. NOTE: Whenever the turbocharger air intake system components are removed, always cover the open ports to protect them from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All of the components should be inspected and cleaned, if needed, prior to installation or reassembly.

    1. Disconnect the vacuum tube from air cleaner outlet pipe. Use the General Equipment: Hose Clamp Remover/Installer
    2. Disconnect quick release couplings. Refer to: Quick Release Coupling .
    3. Disconnect the PCV quick release coupling.
    4. Disconnect the MAP sensor electrical connector.
    5. Loosen the air cleaner outlet pipe clamps, remove the nuts and the air outlet pipe.
    6. Clean, inspect, and cover all open ports.

    GFD264764Courtesy of FORD MOTOR COMPANY
  4. NOTE: Whenever the turbocharger air intake system components are removed, always cover the open ports to protect them from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All of the components should be inspected and cleaned, if needed, prior to installation or reassembly.

    Loosen the clamps, remove the bolt and the CAC outlet pipe.

    • Clean, inspect, and cover all open ports.

    GFD264765Courtesy of FORD MOTOR COMPANY
  5. Remove the following items:

    1. Refer to: Accessory Drive Belt .
    2. Refer to: Starter Motor .

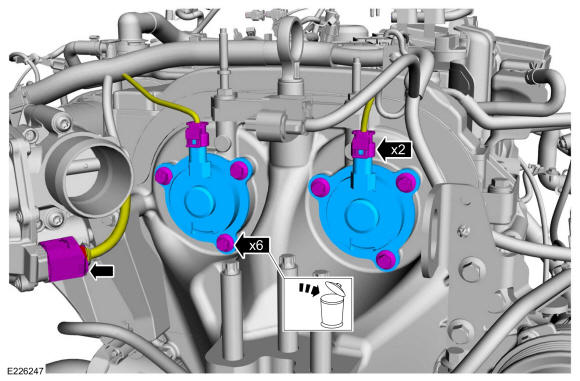

    • Disconnect the throttle actuator and VCT solenoid electrical connectors.

    • Remove and discard the VCT solenoid bolts.

    • Remove the VCT solenoids.

    GFD264766Courtesy of FORD MOTOR COMPANY

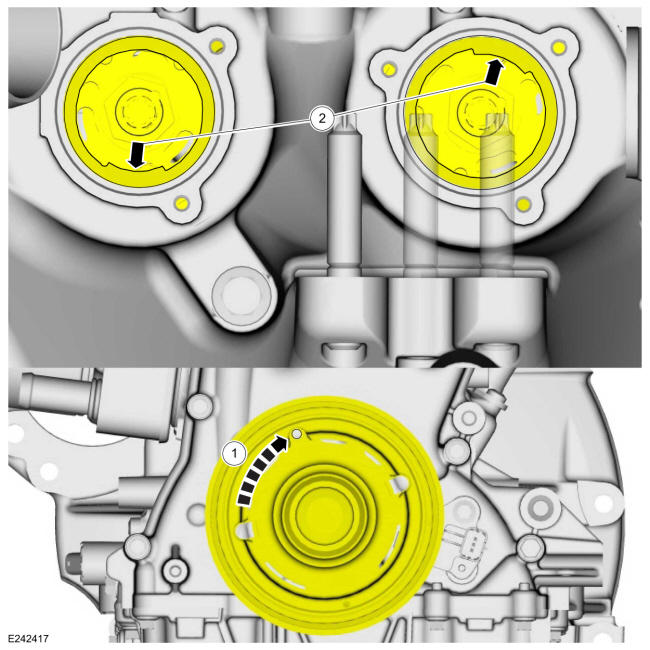

  6. NOTE: Only rotate the crankshaft clockwise.

    1. Rotate the crankshaft until piston No. 1 is approximately 35° BTDC.
    2. Verify the VCT units are in the position shown.

    • If the VCT units are not in the position shown, rotate the crankshaft clockwise one complete revolution.

    GFD264767Courtesy of FORD MOTOR COMPANY

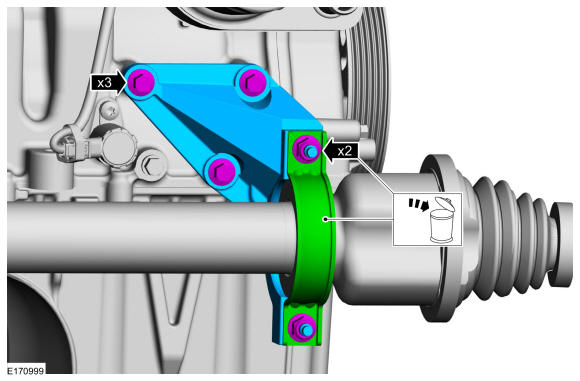

    • Remove and discard the RH halfshaft bearing retaining strap and the nuts.

    • Remove the bolts and the RH halfshaft support bracket.

    GFD264768Courtesy of FORD MOTOR COMPANY

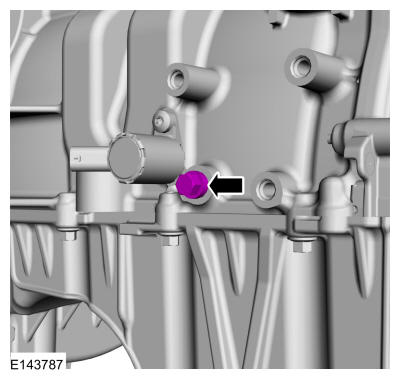

  7. Remove the engine plug bolt.
    GFD264769Courtesy of FORD MOTOR COMPANY

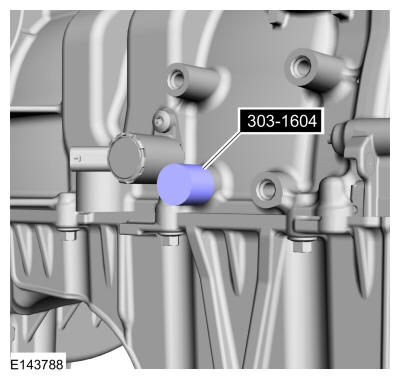

  8. Install Special Service Tool: 303-1604 Timing Peg, Crankshaft TDC.
    GFD264750Courtesy of FORD MOTOR COMPANY

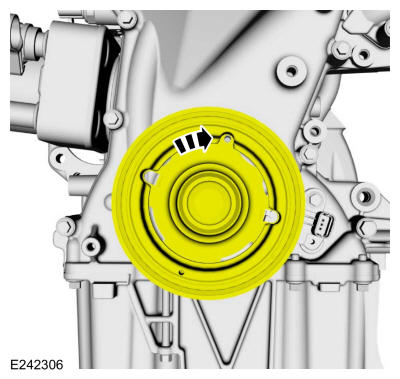

  9. NOTE: Only rotate the crankshaft clockwise.

    Rotate the crankshaft slowly until the crankshaft stops.

    GFD264770Courtesy of FORD MOTOR COMPANY

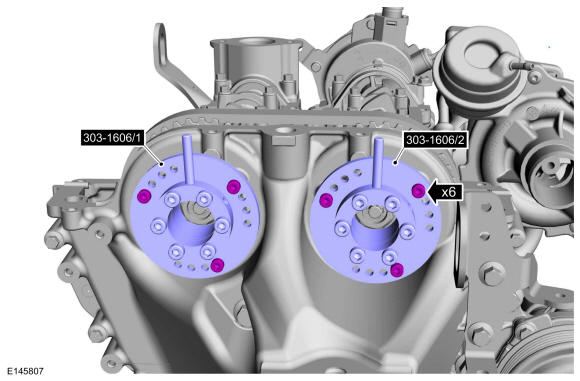

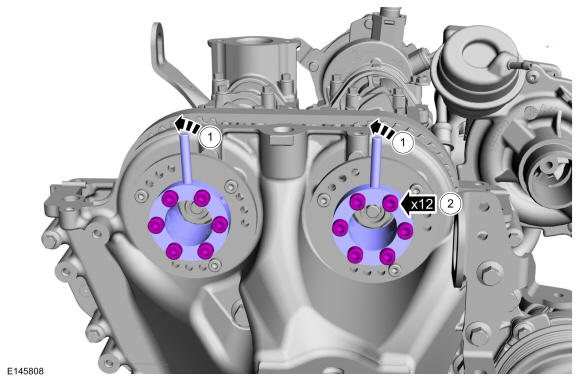

  10. Install Special Service Tool: 303-1606 Locking Tool, Variable Camshaft Timing.

    Torque

    : 89 lb.in (10 Nm)

    GFD264771Courtesy of FORD MOTOR COMPANY
    1. Turn until resistance is felt.
    2. Torque

      : 133 lb.in (15 Nm)

    GFD264772Courtesy of FORD MOTOR COMPANY

    6-Speed Automatic Transmission - 6F15

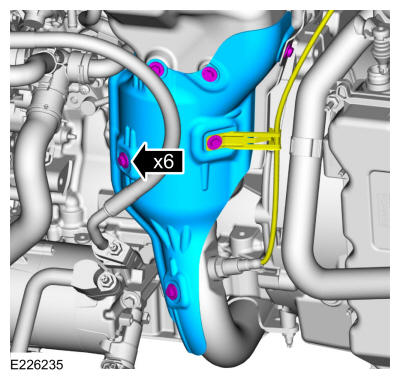

  11. Remove the bolts and the heat shield.
    GFD264773Courtesy of FORD MOTOR COMPANY

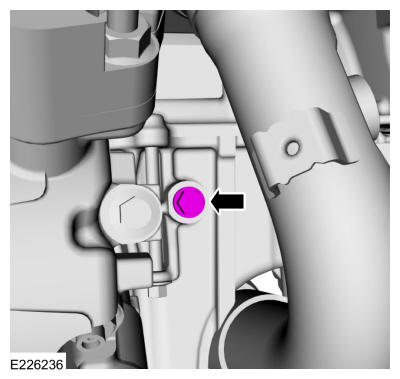

  12. Remove the plug bolt from the oil pan.
    GFD264774Courtesy of FORD MOTOR COMPANY

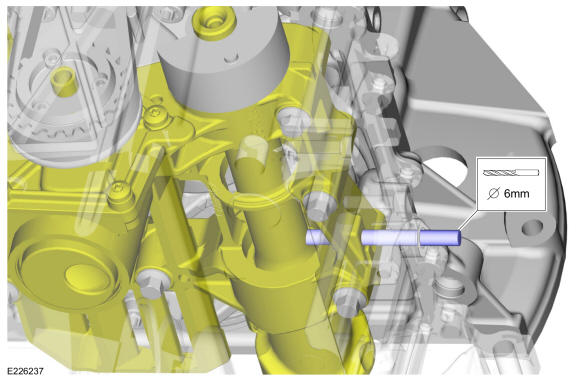

  13. NOTE: The drill bit must be installed to maintain the balance shaft timing. Do not remove the drill bit until you are instructed to do so.
    NOTE: Exhaust and A/C compressor removed from graphic for clarity.

    Install a 6 mm drill bit into the oil pan hole, through the oil pump housing and into the balance shaft.

    GFD264775Courtesy of FORD MOTOR COMPANY

    6-Speed Automatic Transmission - 6F15/6-Speed Manual Transmission - B6

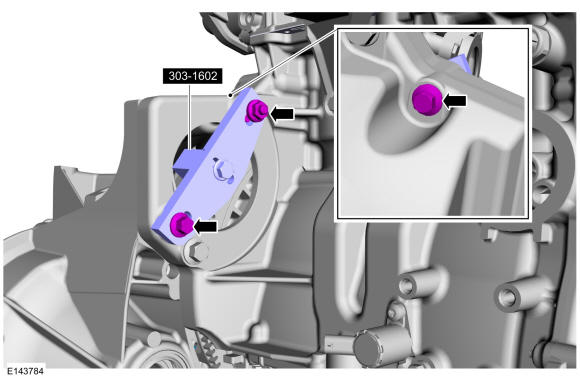

  14. Install Special Service Tool: 303-1602 Locking Tool, Crankshaft.
    GFD264755Courtesy of FORD MOTOR COMPANY

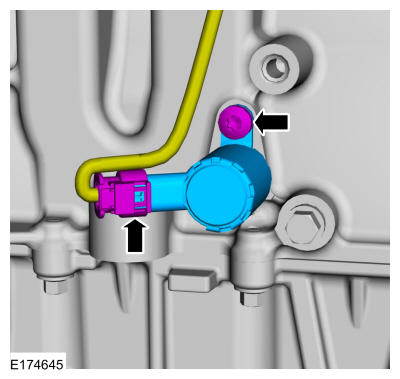

  15. Disconnect the electrical connector, remove the retainer and the oil pump control solenoid.
    GFD264776Courtesy of FORD MOTOR COMPANY

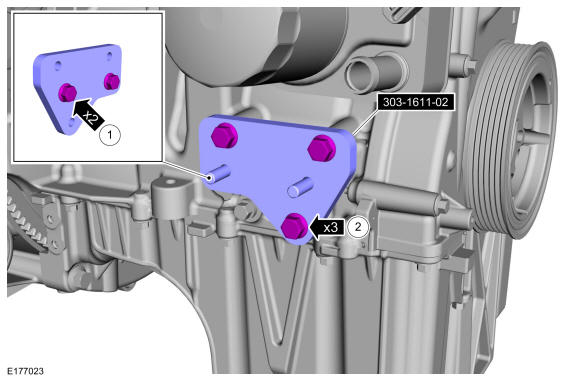

    1. M8x30
    2. M8x25Install Special Service Tool: 303-1611-02 Adapter for 303-1611, Torque Multiplier.

      Torque

      : 18 lb.ft (24 Nm)

    GFD264777Courtesy of FORD MOTOR COMPANY

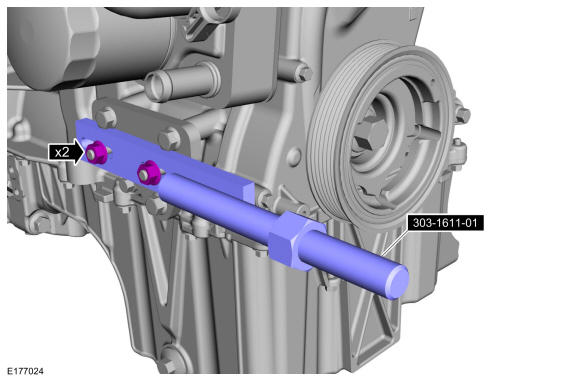

  16. Install Special Service Tool: 303-1611-01 Adapter for 303-1611.

    Torque

    : 18 lb.ft (24 Nm)

    GFD264778Courtesy of FORD MOTOR COMPANY

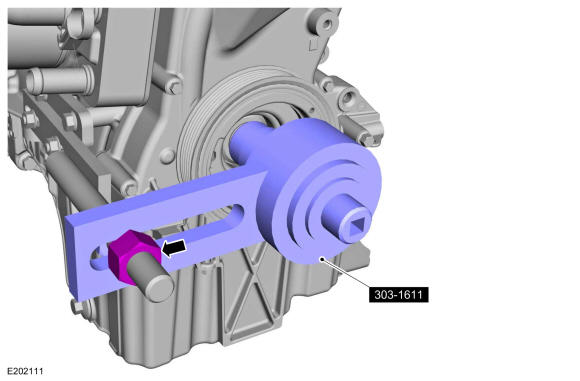

  17. Only tighten the nut finger tight at this stage. Install Special Service Tool: 303-1611 Torque Multiplier.
    GFD264779Courtesy of FORD MOTOR COMPANY

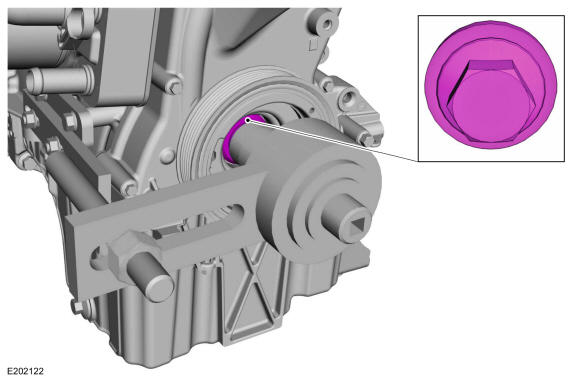

  18. Loosen:: 5 turn(s)
    GFD264780Courtesy of FORD MOTOR COMPANY
  19. Remove Special Service Tool: 303-1611 Torque Multiplier.
    GFD264779Courtesy of FORD MOTOR COMPANY

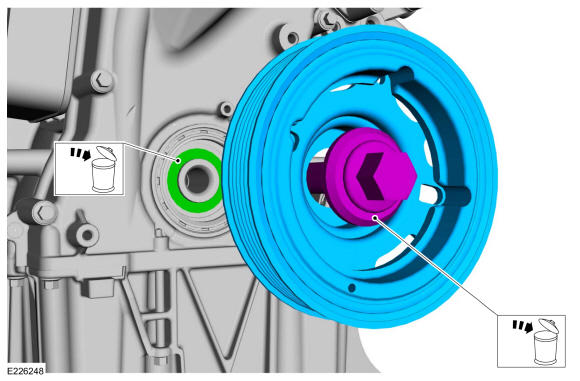

    • Remove and discard the crankshaft bolt.

    • Remove the crankshaft pulley.

    • NOTE: The production engine is not equipped with a friction washer. Whenever the crankshaft pulley is removed, a friction washer (base part number 6378) must be installed.

      If equipped, remove and discard the friction washer.

    GFD264781Courtesy of FORD MOTOR COMPANY

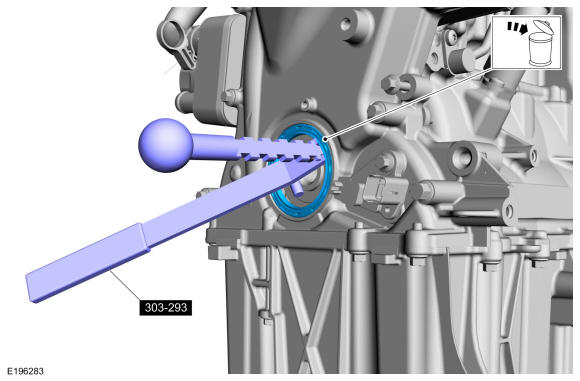

  20. Remove and discard the crankshaft front seal. Use Special Service Tool: 303-293 Remover, Crankshaft Seal.
GFD264782Courtesy of FORD MOTOR COMPANY
