Crankshaft Front Seal: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure that a new component is installed.

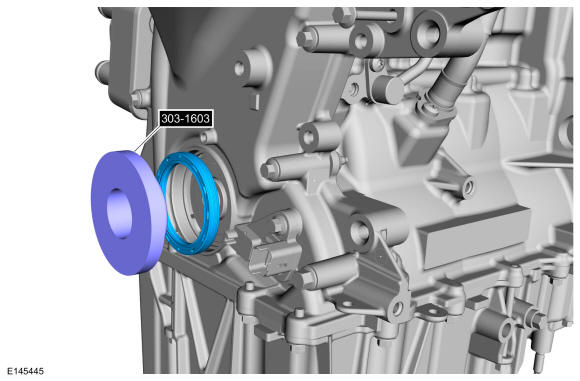

Using the special tool, install the crankshaft front seal. Use Special Service Tool: 303-1603 Installer, Front Cover Seal.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1602 Locking Tool, Crankshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft clockwise.

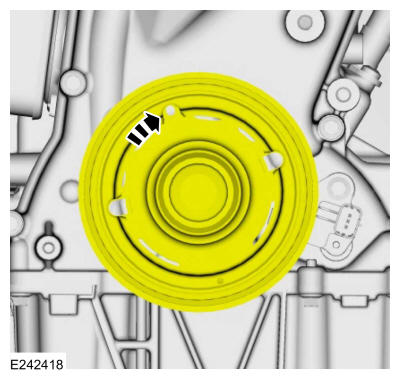

Rotate the crankshaft slowly until the crankshaft stops.

Courtesy of FORD MOTOR COMPANY

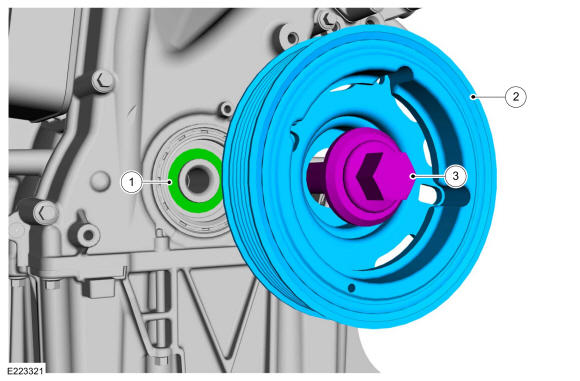

1. NOTE: The production engine is not equipped with a friction washer. Whenever the crankshaft pulley is removed, a friction washer (base part number 6378) must be installed.

  Install a new friction washer.
2. Install the crankshaft pulley.
3. Install a new crankshaft pulley bolt finger tight.
Courtesy of FORD MOTOR COMPANY

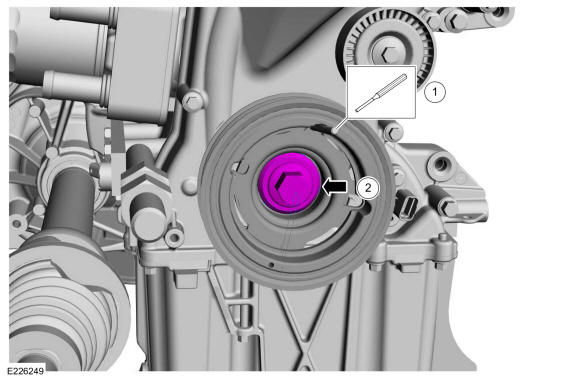

1. Install 3/16 inch punch. Use the General Equipment: Punch
2. Tighten the crankshaft pulley bolt.
  Torque

  :Stage 1: 18 lb.ft (25 Nm) Stage 2: 52 lb.ft (70 Nm)
Courtesy of FORD MOTOR COMPANY

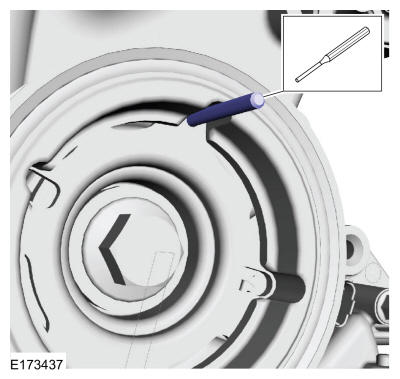

Remove 3/16 inch punch. Use the General Equipment: Punch

Courtesy of FORD MOTOR COMPANY

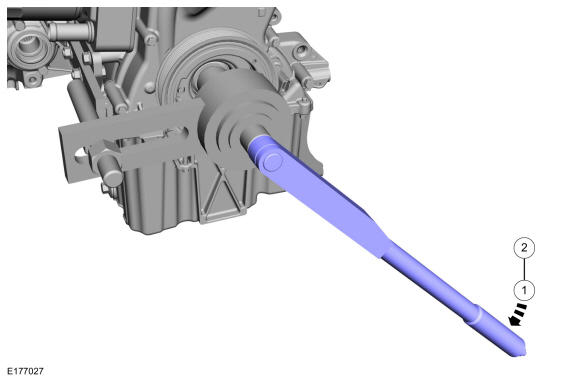

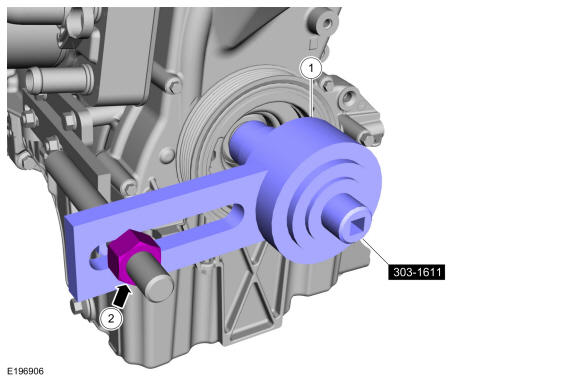

1. Install Special Service Tool: 303-1611 Torque Multiplier.
2. Only tighten the nut finger tight at this stage.
Courtesy of FORD MOTOR COMPANY
1. Tighten the crankshaft pulley bolt.
  Torque

  : 44 lb.ft (60 Nm)
2. Torque
  :Stage 1: 90° Stage 2: 90° Stage 3: 90° Stage 4: 90° Stage 5: 90°
Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1611 Torque Multiplier.

Courtesy of FORD MOTOR COMPANY
- Install 3/16 inch punch. Use the General Equipment: Punch
- Remove 3/16 inch punch. Use the General Equipment: Punch
Courtesy of FORD MOTOR COMPANY

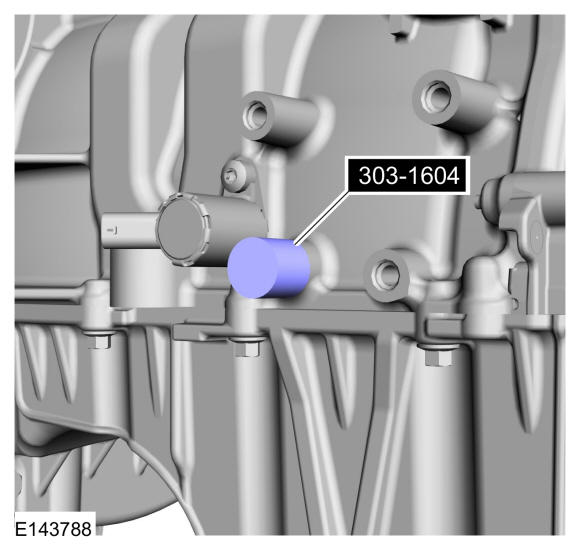

Remove Special Service Tool: 303-1604 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY

6-Speed Automatic Transmission - 6F15
NOTE: Exhaust and A/C compressor removed from graphic for clarity.

Remove the 6 mm drill bit. Use the General Equipment: 6 mm Drill Bit

Courtesy of FORD MOTOR COMPANY

6-Speed Automatic Transmission - 6F15/6-Speed Manual Transmission - B6
Remove Special Service Tool: 303-1606 Locking Tool, Variable Camshaft Timing.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft clockwise.

Rotate the crankshaft 1 and 3/4 revolutions and continue until piston No. 1 is approximately 45° BTDC.

Courtesy of FORD MOTOR COMPANY
Install Special Service Tool: 303-1604 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft clockwise.

Rotate the crankshaft slowly until the crankshaft stops.

Courtesy of FORD MOTOR COMPANY
NOTE: The punch can only be installed if the timing is correct.
- Install 3/16 inch punch. Use the General Equipment: Punch
- Remove 3/16 inch punch. Use the General Equipment: Punch
Courtesy of FORD MOTOR COMPANY

6-Speed Automatic Transmission - 6F15
Install the plug bolt into the oil pan.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the heat shield and the bolts.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

6-Speed Automatic Transmission - 6F15/6-Speed Manual Transmission - B6
Remove Special Service Tool: 303-1604 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY
Install the engine plug bolt.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1611-01 Adapter for 303-1611.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1611-02 Adapter for 303-1611, Torque Multiplier.

Courtesy of FORD MOTOR COMPANY
Install the oil pump control solenoid, retainer and connect the electrical connector.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

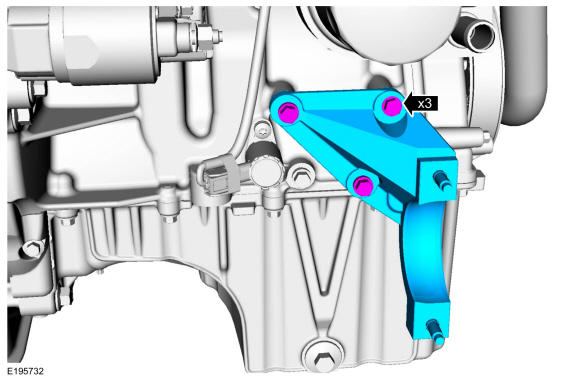

Install the RH halfshaft support bracket and the bolts.
Torque

: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new components are installed.

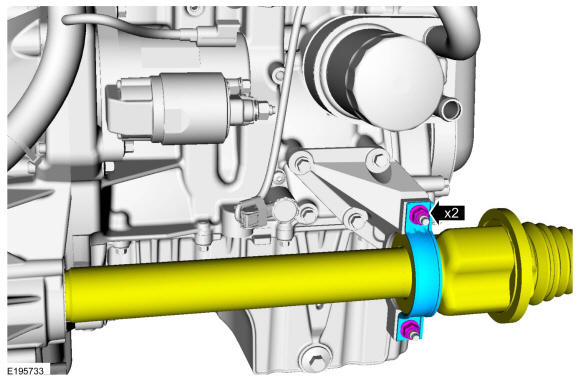

Position the halfshaft, and install the retaining strap and the nuts.

Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Starter Motor .
2. Refer to: Accessory Drive Belt .

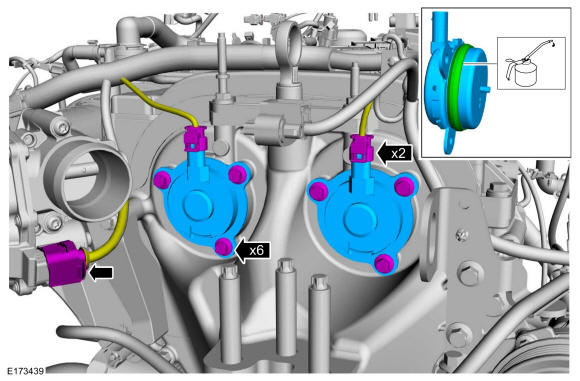

- Lubricate the seal with clean engine oil, install the VCT solenoids and the retainers.
  Material

  : Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

  Torque

  : 62 lb.in (7 Nm)
- Connect the throttle actuator and VCT solenoids electrical connectors.
Courtesy of FORD MOTOR COMPANY
1. Install the CAC outlet pipe and install the bolt.
  Torque

  : 71 lb.in (8 Nm)
2. Tighten the clamps.
  Torque

  : 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
1. Install the air cleaner outlet pipe assembly and the nuts.
  Torque

  : 97 lb.in (11 Nm)
2. Tighten the air cleaner outlet pipe clamps.
  Torque

  : 35 lb.in (4 Nm)
3. Connect the MAP sensor electrical connector.
4. Connect the PCV coupling.
5. Connect the quick release couplings. Refer to: Quick Release Coupling .
6. Connect the vacuum tube to air outlet pipe. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

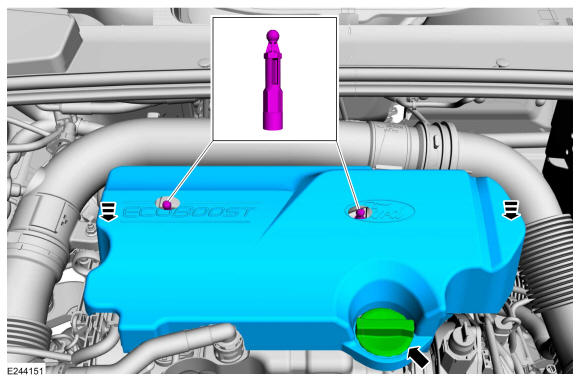

Install the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
