Engine - (6-Speed Manual Transmission - B6)

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Materials

1. Apply a thin coating on input shaft.

   Material

   : Motorcraft® High Temperature 4x4 Front Axle and Wheel Bearing Grease / XG-11 (WSS-M1C267-A1)

   Courtesy of FORD MOTOR COMPANY

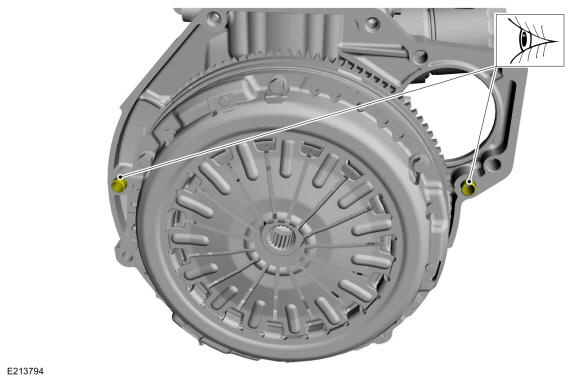

2. Inspect the dowels and replace if necessary

   Courtesy of FORD MOTOR COMPANY

3. NOTE: Make sure that the component is correctly located on the locating dowels.
   NOTE: Make sure that no components catch.

   With the aid of an assistant, install the engine into the vehicle. Use the General Equipment: Floor Crane. Use the General Equipment: Lifting Bracket

   Courtesy of FORD MOTOR COMPANY

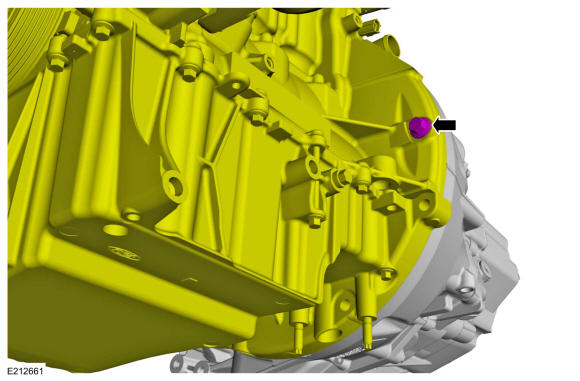

4. Install the transmission-to-engine bolt.

   Torque

   : 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

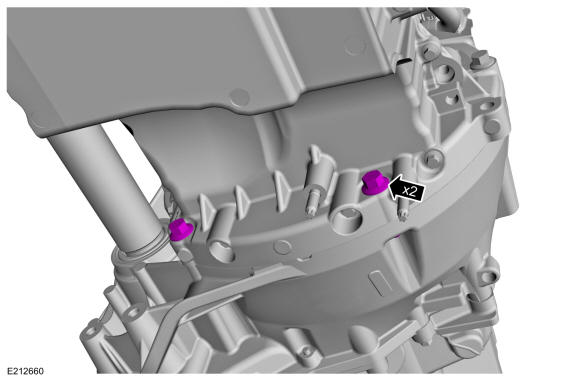

5. Install the transmission-to-engine bolts.

   Torque

   : 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

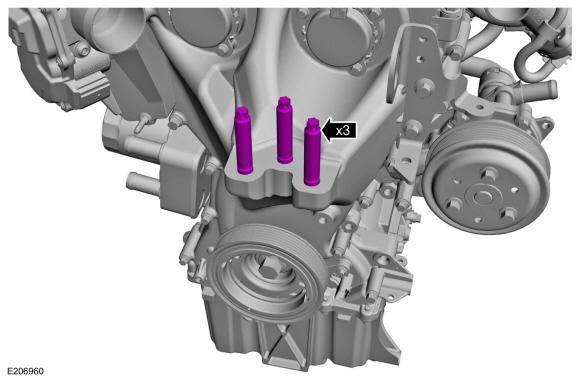

6. Tighten the engine mount studs.

   Torque

   : 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

7. NOTE: Make sure that the component is installed to the position noted before removal.

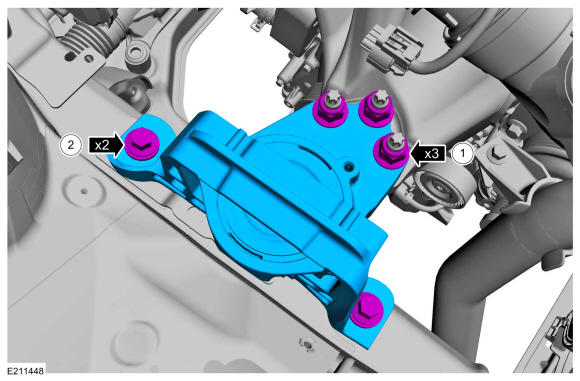

   1. Install the RH engine mount and the nuts.

      Torque

      : 59 lb.ft (80 Nm)

   2. NOTE: Only tighten the bolts finger tight at this stage.

      Install the RH engine mount bolts finger-tight.

   Courtesy of FORD MOTOR COMPANY

8. Remove the wooden block and floor jack from under the transmission. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

   Courtesy of FORD MOTOR COMPANY

9. Remove the lift equipment. Remove the General Equipment: Floor Crane. Remove the General Equipment: Lifting Bracket

   Courtesy of FORD MOTOR COMPANY

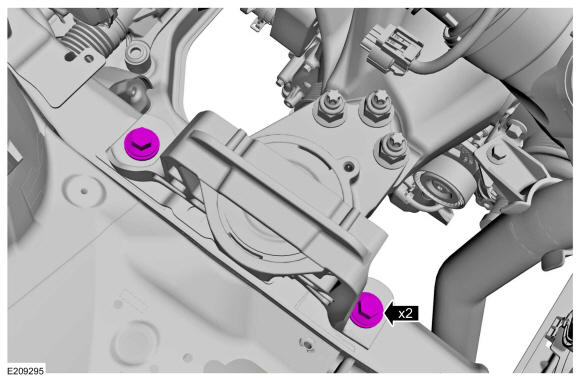

10. Tighten the RH engine mount bracket bolts.

    Torque

    : 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

11. Install the transmission-to-engine bolts.

    Torque

    : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

12. Install the transmission-to-engine bolt.

    Torque

    : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

13. NOTE: Lubricate the engine oil filter seal with clean engine oil.

    Install a new engine oil filter.

    Material

    : Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

    Torque

    : 133 lb.in (15 Nm)

    Courtesy of FORD MOTOR COMPANY

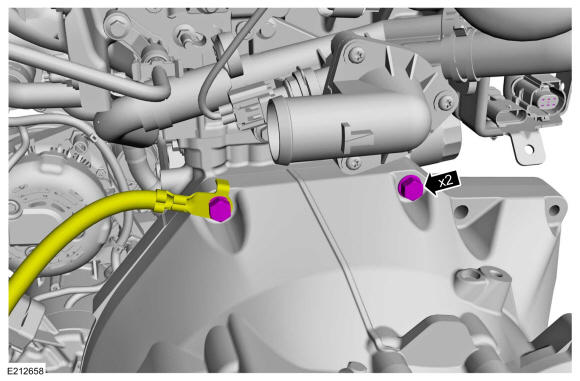

14. Install the ground cable bolt.

    Torque

    : 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

15. Connect the oil pressure switch, the KS and the vacuum solenoid electrical connectors.
    • Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

16. Connect the oil control solenoid electrical connector.
    • Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

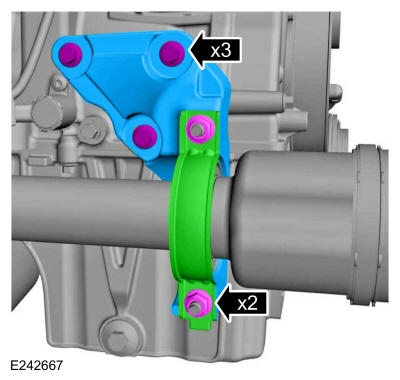

17. 1. Install the axle shaft bracket and the bolts.

       Torque

       : 18 lb.ft (25 Nm)

    2. Install a new the axle bearing strap and nuts.

       Torque

       :Stage 1: Lower nut: 44 lb.in (5 Nm) Stage 2: Upper nut: 18 lb.ft (25 Nm) Stage 3: Lower nut: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

18. Connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

19. Connect the fuel supply tube. Refer to: Spring Lock Couplings .

    Courtesy of FORD MOTOR COMPANY

20. NOTE: Install all the bolts finger tight before final tightening.

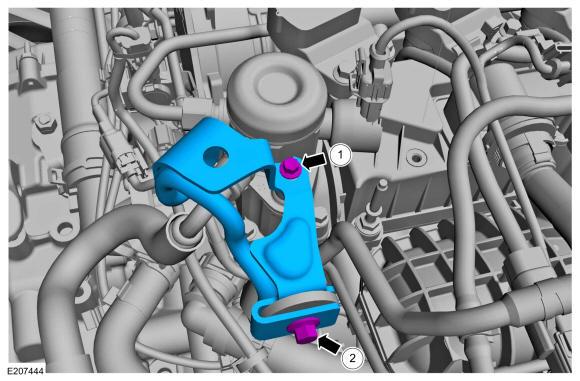

    Install the bracket and the bolts.

    Torque

    :1: 53 lb.in (6 Nm)2: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

21. Connect the high-pressure fuel pump electrical connector and attach the harness retainer.

    Courtesy of FORD MOTOR COMPANY

22. Connect the degas bottle coolant tube.

    Courtesy of FORD MOTOR COMPANY

23. 1. Connect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
    2. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

24. Connect the vacuum solenoid electrical connector.

    Courtesy of FORD MOTOR COMPANY

25. Connect the CHT electrical connector.

    Courtesy of FORD MOTOR COMPANY

26. Connect the ECT sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

27. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

28. • Connect the MAP sensor and fuel injection harness electrical connectors.
    • Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

29. Connect the throttle body electrical connector.

    Courtesy of FORD MOTOR COMPANY

30. Connect the VCT electrical connectors.

    Courtesy of FORD MOTOR COMPANY

31. Connect the CMP sensors and ignition coils electrical connectors.
    • Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

32. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

33. 1. Connect the generator electrical connector and attach the wiring harness retainers.
    2. Attach the battery cable, install the nut and cap.

       Torque

       : 159 lb.in (18 Nm)

    Courtesy of FORD MOTOR COMPANY

34. Connect the CKP sensor electrical connector and attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

35. Install the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

36. Install the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

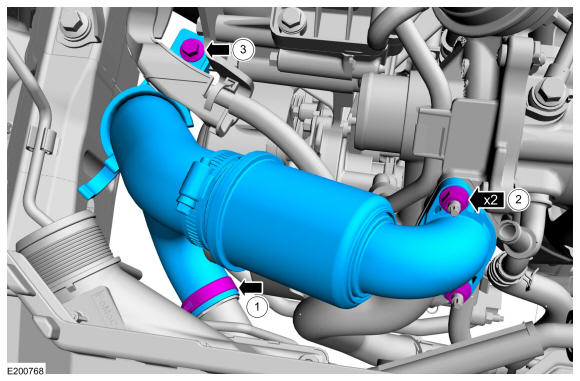

37. 1. Install the CAC inlet tube and the clamp.
    2. Install the CAC inlet tube mounting nuts and bolt.

       Torque

       :2: 97 lb.in (11 Nm)3: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

38. Install the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

39. 1. Install the degas bottle.
    2. Install the degas bottle coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    3. Connect the degas bottle coolant tubes.

    Courtesy of FORD MOTOR COMPANY

40. 1. Install the CAC outlet pipe bracket bolt.

       Torque

       : 97 lb.in (11 Nm)

    2. Tighten the CAC outlet pipe clamps.

    Courtesy of FORD MOTOR COMPANY

41. 1. Install the EVAP tube assembly and attach the retainers.
    2. Connect the quick release couplings. Refer to: Quick Release Coupling .
    3. Connect the EVAP purge valve electrical connector.

    Courtesy of FORD MOTOR COMPANY

42. 1. Install the TC inlet pipe and clamp.
    2. Install the nuts.

       Torque

       : 97 lb.in (11 Nm)

    3. Connect the quick release couplings. Refer to: Quick Release Coupling .
    4. Connect the vacuum hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

43. • Connect the turbocharger boost pressure (TCBP) and charger air cooler temperature (CACT) sensor electrical connector.
    • Connect the crankcase pressure sensor electrical connector.
    • Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

44. Install the following items:
    1. Catalytic converter. Refer to: Catalytic Converter .
    2. Starter. Refer to: Starter Motor .

45. Install the cowl panel and the bolts.

    Torque

    : 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

46. Install the cowl panel grille. Refer to: Cowl Panel Grille .
47. 1. With the aid of an assistant, install the hood and the nuts.

       Torque

       : 97 lb.in (11 Nm)

    2. Connect the windshield washer hose.

    Courtesy of FORD MOTOR COMPANY

48. Install the hood insulator and the retainers.

    Courtesy of FORD MOTOR COMPANY

49. Fill the engine with clean engine oil. Refer to: Specifications  .

    Courtesy of FORD MOTOR COMPANY

50. Fill the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
51. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
