Engine - (6-Speed Automatic Transmission - 6F15)

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Lifting Bracket
Floor Crane
Trolley Jack
Hose Clamp Remover/Installer
Wooden Block

Materials

Name Specification
Motorcraft® Multi-Purpose Grease Spray XL-5-A ESB-M1C93-B
Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil XO-5W20-QSP WSS-M2C945-A

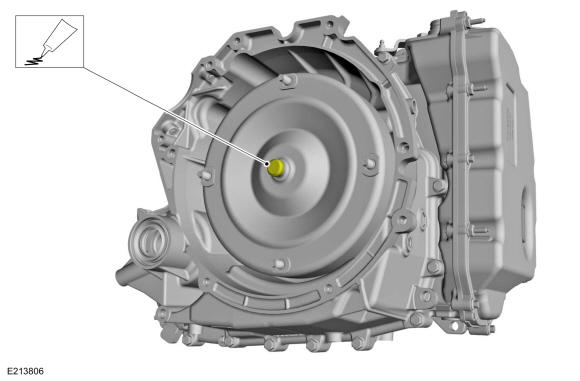

  1. Lubricate the torque converter pilot hub with Multi-Purpose Grease.

    Material

    : Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    GFD265210Courtesy of FORD MOTOR COMPANY

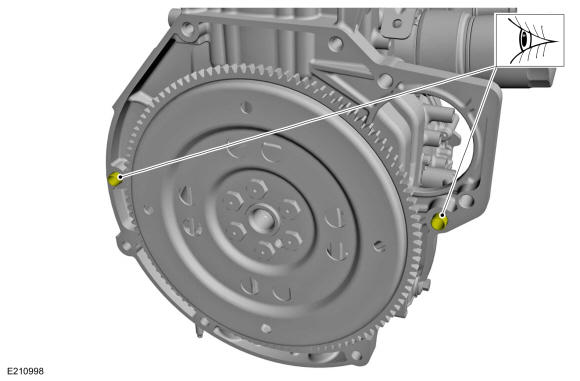

  2. Inspect the dowels and replace if necessary
    GFD265211Courtesy of FORD MOTOR COMPANY

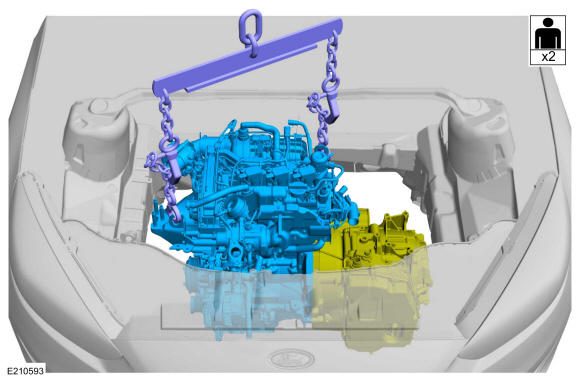

  3. NOTE: Make sure that the component is correctly located on the locating dowels.
    NOTE: Make sure that the torque converter remains in the transmission.
    NOTE: Make sure that no components catch.

    With the aid of an assistant, install the engine into the vehicle. Use the General Equipment: Floor Crane. Use the General Equipment: Lifting Bracket

    GFD265212Courtesy of FORD MOTOR COMPANY

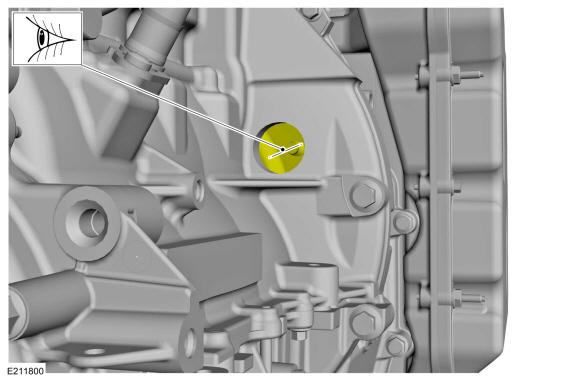

  4. NOTE: Make sure that the component is installed to the position noted before removal.

    Align the torque converter stud to the hole in the flexplate.

    GFD265213Courtesy of FORD MOTOR COMPANY

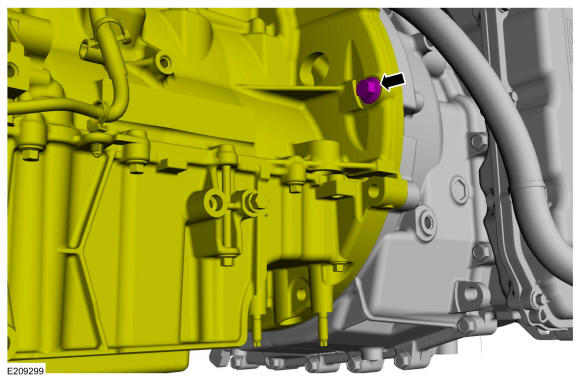

  5. Install the transmission-to-engine bolt.

    Torque

    : 35 lb.ft (48 Nm)

    GFD265214Courtesy of FORD MOTOR COMPANY

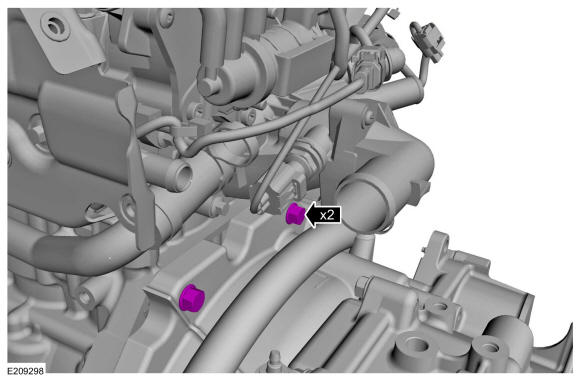

  6. Install the transmission-to-engine bolts.

    Torque

    : 35 lb.ft (48 Nm)

    GFD265215Courtesy of FORD MOTOR COMPANY

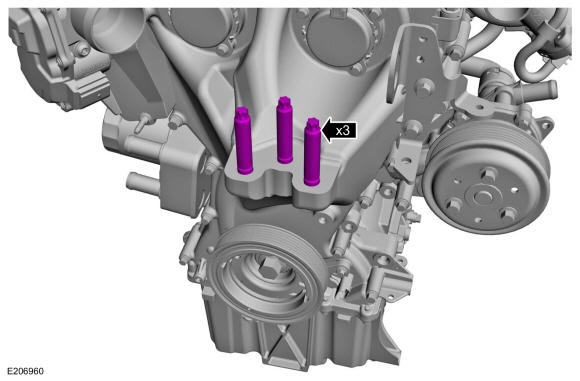

  7. Tighten the engine mount studs.

    Torque

    : 89 lb.in (10 Nm)

    GFD265216Courtesy of FORD MOTOR COMPANY

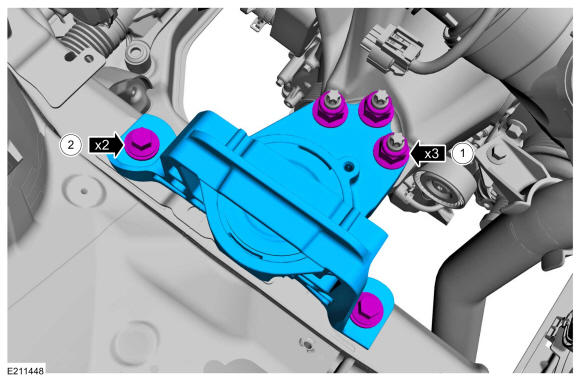

  8. NOTE: Make sure that the component is installed to the position noted before removal.

    1. Install the RH engine mount and the nuts.

      Torque

      : 59 lb.ft (80 Nm)

    2. NOTE: Only tighten the bolts finger tight at this stage.

      Install the RH engine mount bolts finger-tight.

    GFD265217Courtesy of FORD MOTOR COMPANY

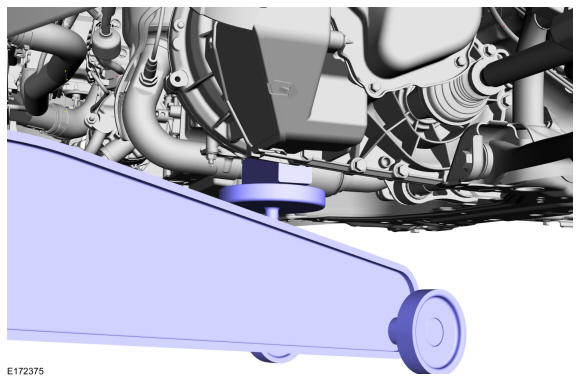

  9. Remove the wooden block and floor jack from under the transmission. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block
    GFD265218Courtesy of FORD MOTOR COMPANY

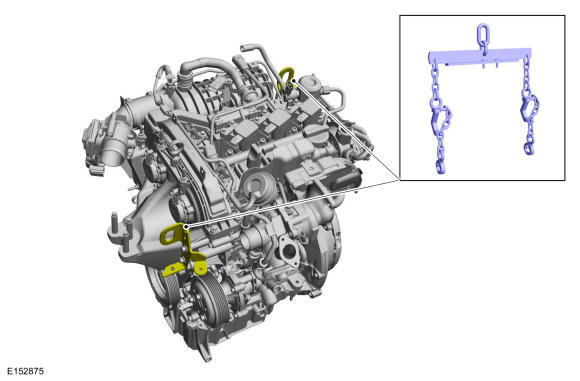

  10. Remove the lift equipment. Remove the General Equipment: Floor Crane. Remove the General Equipment: Lifting Bracket
    GFD265219Courtesy of FORD MOTOR COMPANY

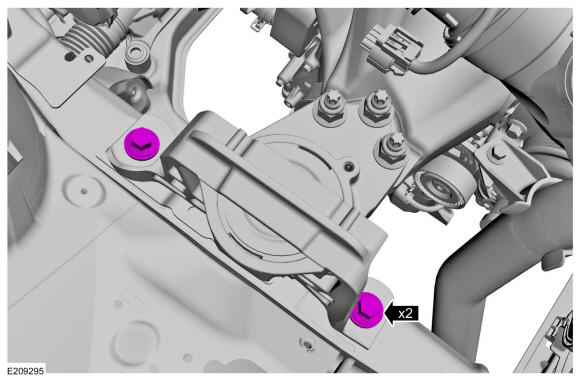

  11. Tighten the RH engine mount bracket bolts.

    Torque

    : 66 lb.ft (90 Nm)

    GFD265220Courtesy of FORD MOTOR COMPANY

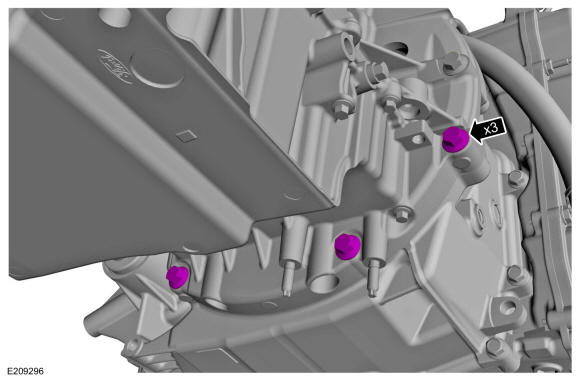

  12. Install the transmission-to-engine bolts.

    Torque

    : 35 lb.ft (48 Nm)

    GFD265221Courtesy of FORD MOTOR COMPANY

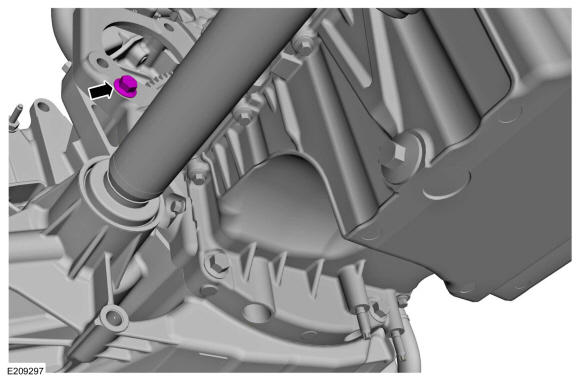

  13. Install the transmission-to-engine bolt.

    Torque

    : 35 lb.ft (48 Nm)

    GFD265222Courtesy of FORD MOTOR COMPANY

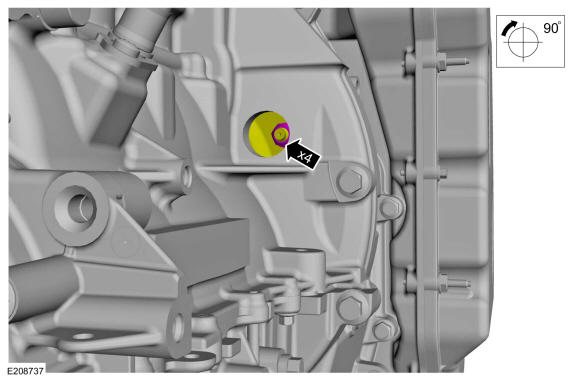

  14. NOTE: Only rotate the crankshaft clockwise.

    Install new torque converter nuts.

    Torque

    : 35 lb.ft (48 Nm)

    GFD265223Courtesy of FORD MOTOR COMPANY

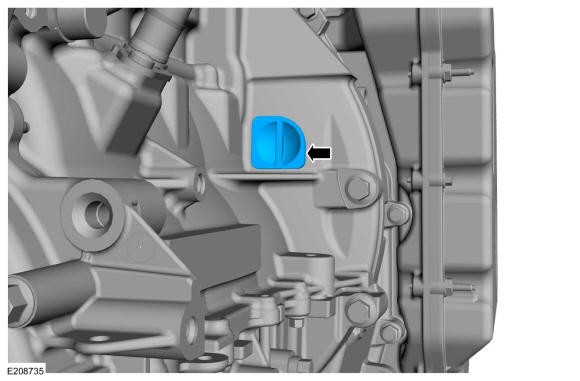

  15. Install the torque converter nut access plug.
    GFD265224Courtesy of FORD MOTOR COMPANY

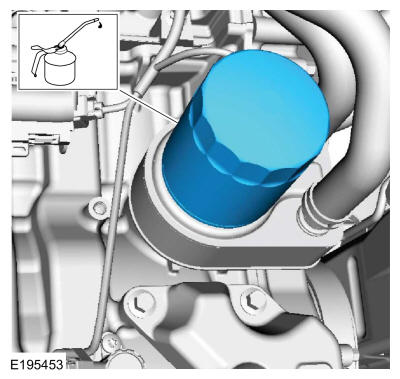

  16. NOTE: Lubricate the engine oil filter seal with clean engine oil.

    Install a new engine oil filter.

    Material

    : Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

    Torque

    : 133 lb.in (15 Nm)

    GFD265225Courtesy of FORD MOTOR COMPANY

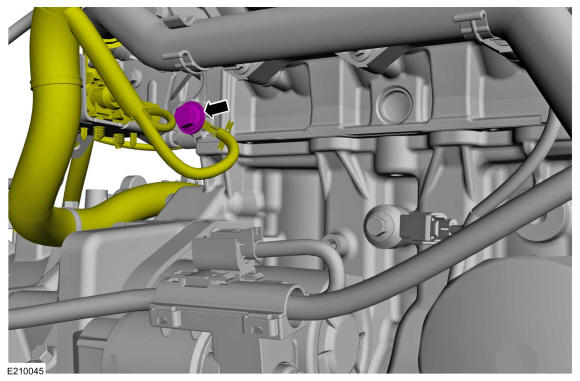

  17. Install the ground cable bolt.

    Torque

    : 177 lb.in (20 Nm)

    GFD265226Courtesy of FORD MOTOR COMPANY

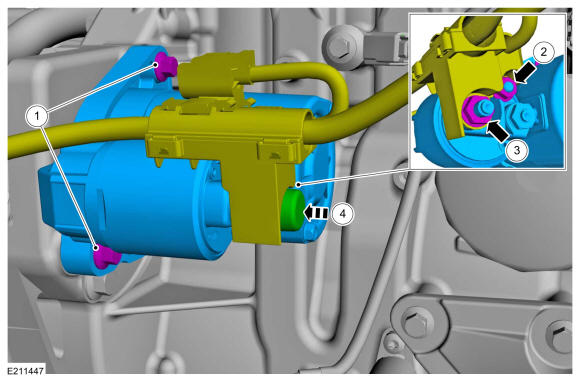

    1. Install the starter and the bolts.

      Torque

      : 18 lb.ft (25 Nm)

    2. Install the starter solenoid terminal nut.

      Torque

      : 53 lb.in (6 Nm)

    3. Install the starter motor solenoid positive battery cable terminal nut.

      Torque

      : 106 lb.in (12 Nm)

    4. Install the starter terminal cap.
    GFD265227Courtesy of FORD MOTOR COMPANY

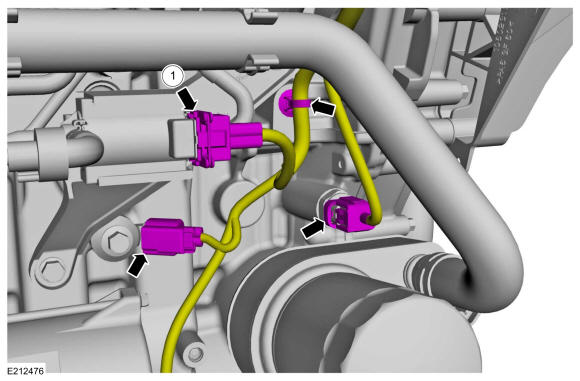

  18. Connect the oil pressure switch, the KS and vacuum solenoid electrical connectors.

    • Attach the wiring harness retainer.

    GFD265228Courtesy of FORD MOTOR COMPANY

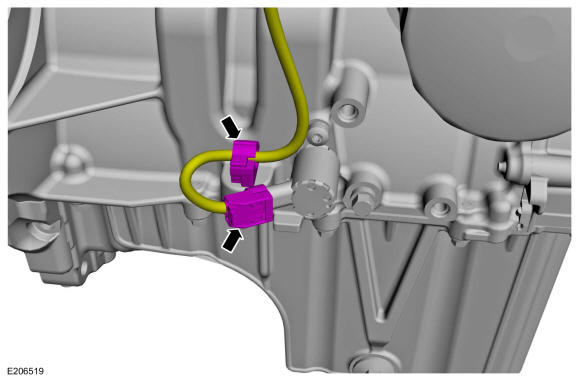

  19. Connect the oil control solenoid electrical connector.

    • Attach the wiring harness retainer.

    GFD265229Courtesy of FORD MOTOR COMPANY

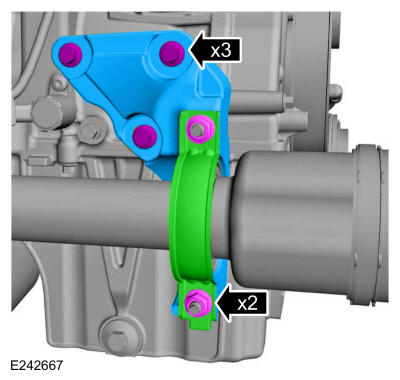

    1. Install the axle shaft bracket and the bolts.

      Torque

      : 18 lb.ft (25 Nm)

    2. Install a new the axle bearing strap and nuts.

      Torque

      :Stage 1: 44 lb.in (5 Nm) Stage 2: 18 lb.ft (25 Nm) Stage 3: 18 lb.ft (25 Nm)

    GFD265230Courtesy of FORD MOTOR COMPANY

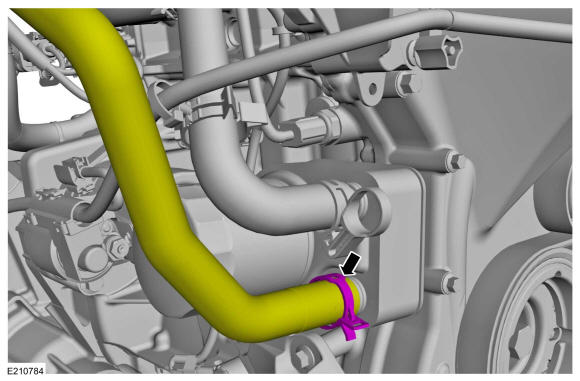

  20. Connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD265231Courtesy of FORD MOTOR COMPANY

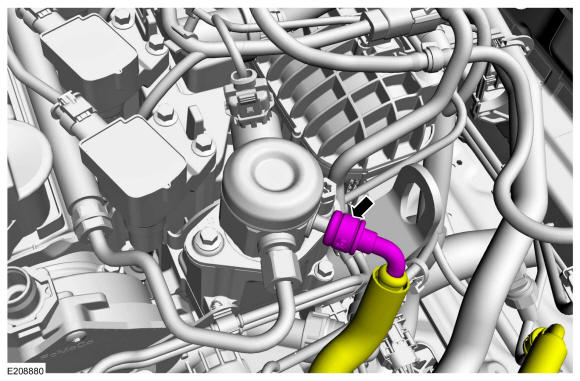

  21. Connect the fuel supply tube. Refer to: Spring Lock Couplings .
    GFD265232Courtesy of FORD MOTOR COMPANY

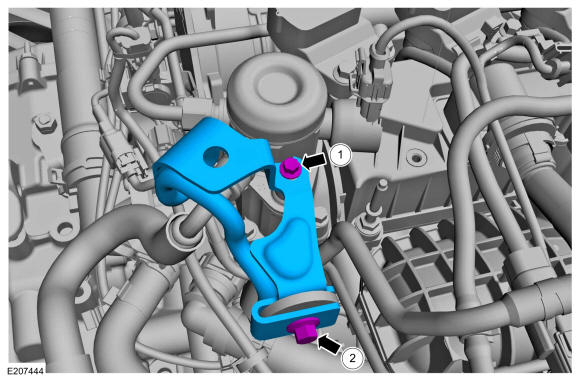

  22. NOTE: Install all the bolts finger tight before final tightening.

    Install the bracket and the bolts.

    Torque

    :1: 53 lb.in (6 Nm)2: 106 lb.in (12 Nm)

    GFD265233Courtesy of FORD MOTOR COMPANY

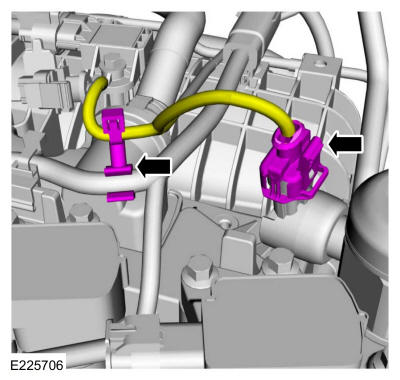

  23. Connect the high-pressure fuel pump electrical connector and attach the harness retainer.
    GFD265234Courtesy of FORD MOTOR COMPANY

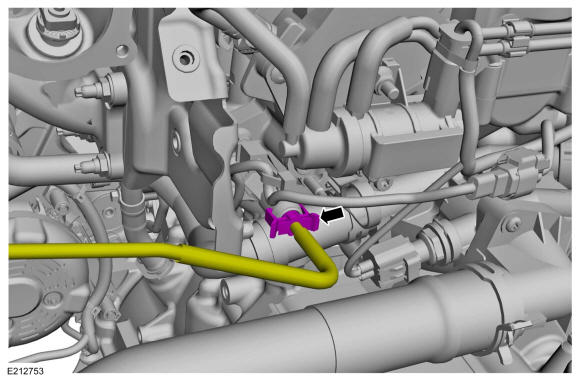

  24. Connect the degas bottle coolant tube.
    GFD265235Courtesy of FORD MOTOR COMPANY
  25. Attach the wiring harness retainers.
    GFD265236Courtesy of FORD MOTOR COMPANY

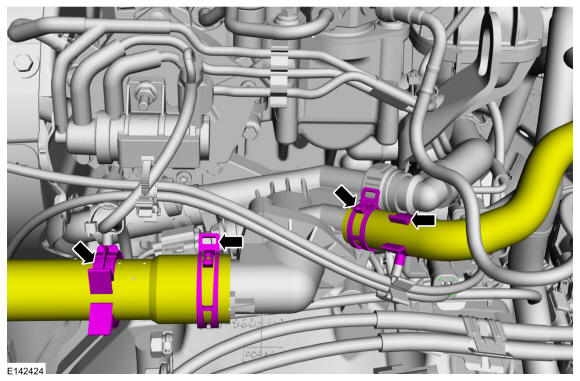

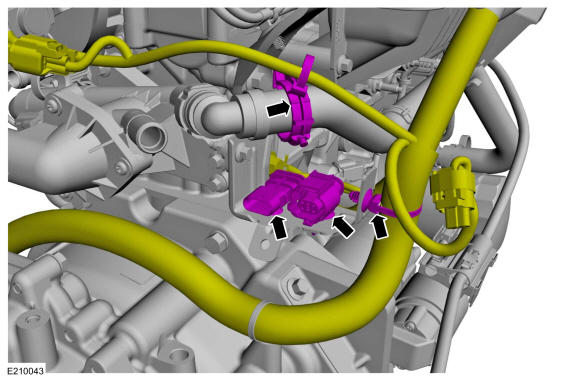

    1. Connect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
    2. Attach the wiring harness retainers.
    GFD265237Courtesy of FORD MOTOR COMPANY

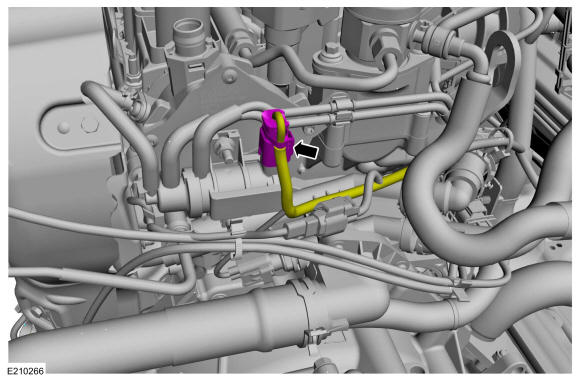

  26. Connect the vacuum solenoid electrical connector.
    GFD265238Courtesy of FORD MOTOR COMPANY

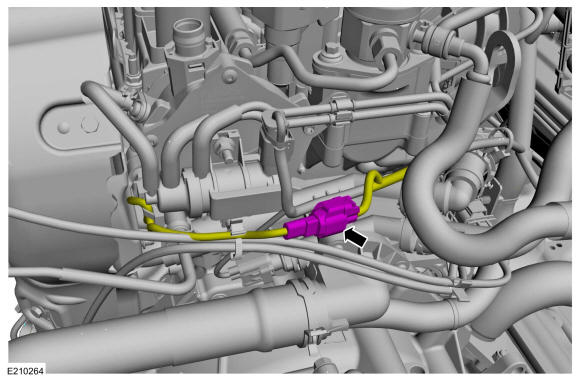

  27. Connect the CHT electrical connector.
    GFD265239Courtesy of FORD MOTOR COMPANY

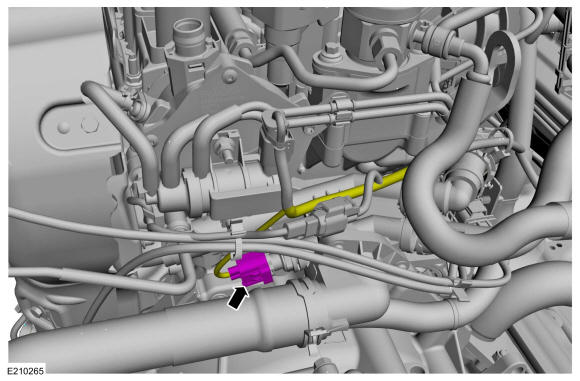

  28. Connect the ECT sensor electrical connector.
    GFD265240Courtesy of FORD MOTOR COMPANY

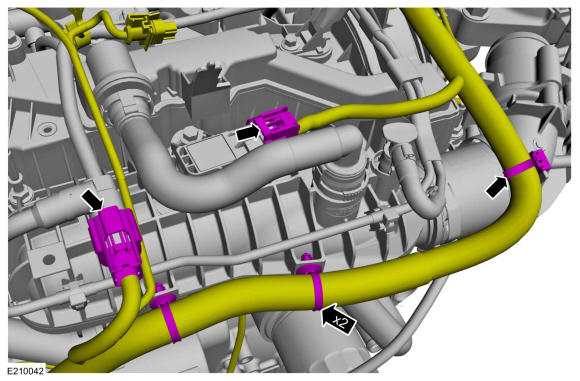

    • Connect the MAP sensor and fuel injection harness electrical connectors.

    • Attach the wiring harness retainers.

    GFD265241Courtesy of FORD MOTOR COMPANY

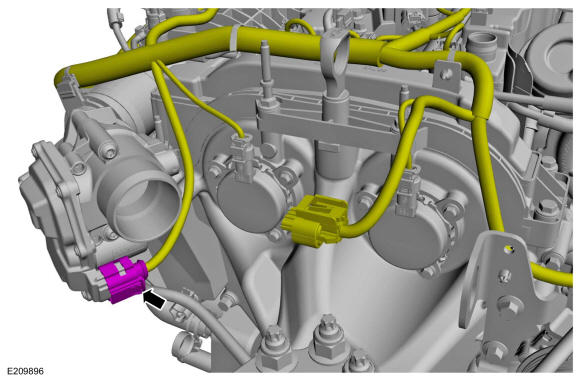

  29. Connect the throttle body electrical connector.
    GFD265242Courtesy of FORD MOTOR COMPANY

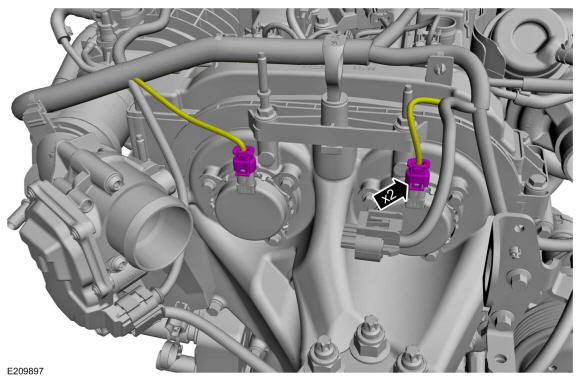

  30. Connect the VCT electrical connectors.
    GFD265243Courtesy of FORD MOTOR COMPANY

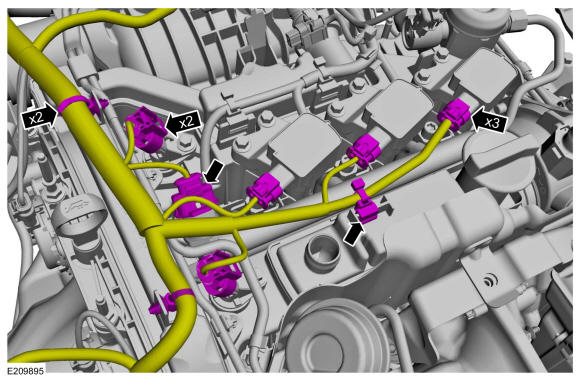

  31. Connect the CMP sensors and ignition coils electrical connectors.

    • Attach the wiring harness retainers.

    GFD265244Courtesy of FORD MOTOR COMPANY

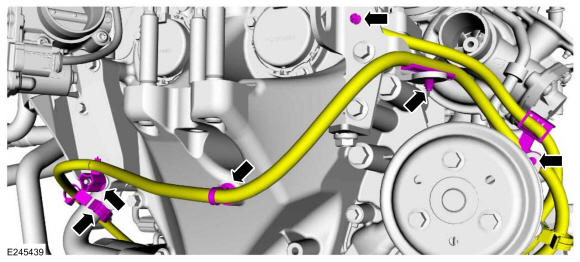

  32. Attach the wiring harness retainers.
    GFD265245Courtesy of FORD MOTOR COMPANY

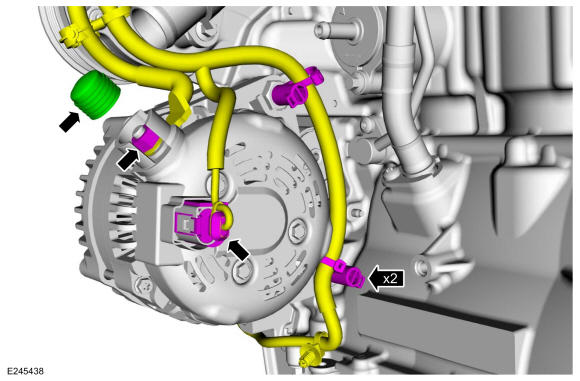

    1. Connect the generator electrical connector and attach the wiring harness retainers.
    2. Attach the battery cable, install the nut and cap.

      Torque

      : 159 lb.in (18 Nm)

    GFD265246Courtesy of FORD MOTOR COMPANY

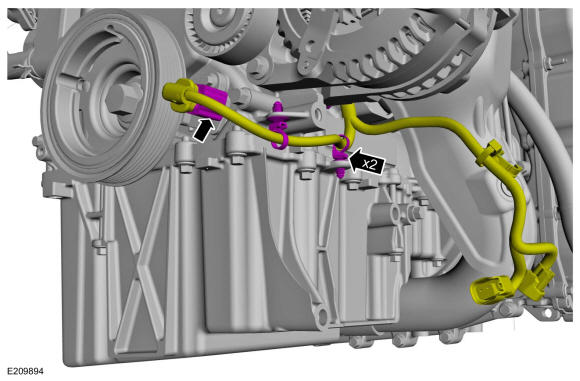

  33. Connect the CKP sensor electrical connector and attach the wiring harness retainers.
    GFD265247Courtesy of FORD MOTOR COMPANY

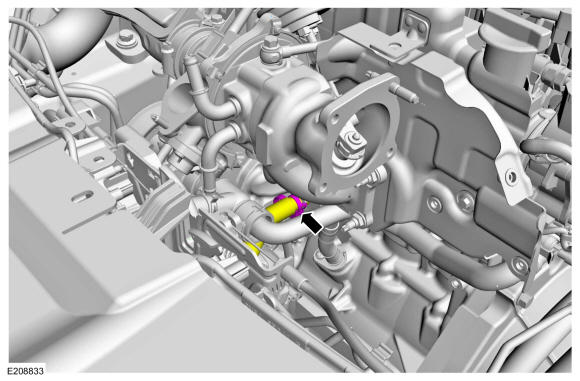

  34. Install the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD265248Courtesy of FORD MOTOR COMPANY

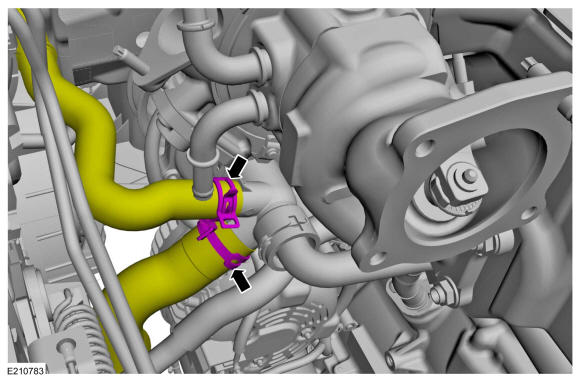

  35. Install the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
    GFD265249Courtesy of FORD MOTOR COMPANY

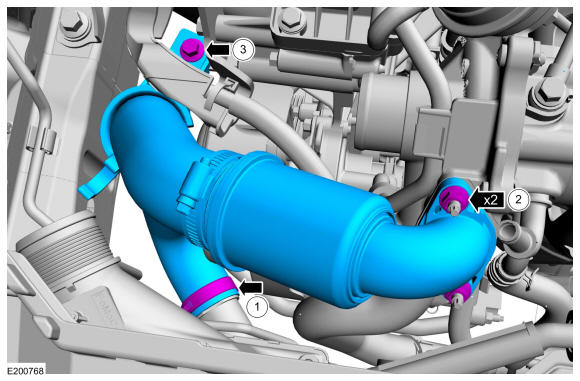

    1. Install the CAC inlet tube and the clamp.
    2. Install the CAC inlet tube mounting nuts and bolt.

      Torque

      :2: 97 lb.in (11 Nm)3: 97 lb.in (11 Nm)

    GFD265250Courtesy of FORD MOTOR COMPANY

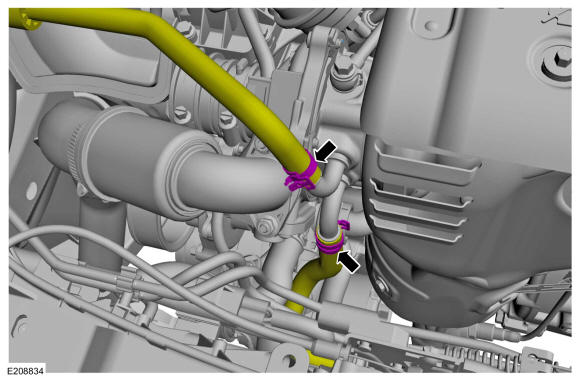

  36. Install the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
    GFD265251Courtesy of FORD MOTOR COMPANY

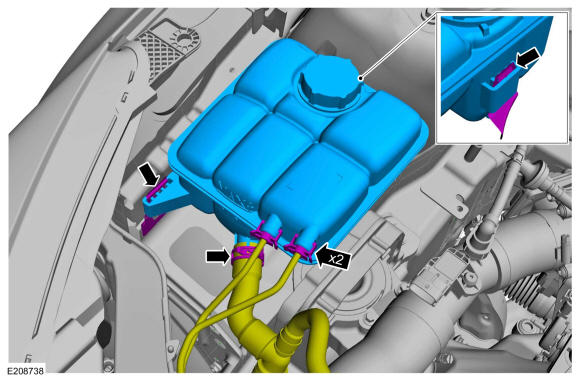

    1. Install the degas bottle.
    2. Install the degas bottle coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    3. Connect the degas bottle coolant tubes.
    GFD265252Courtesy of FORD MOTOR COMPANY

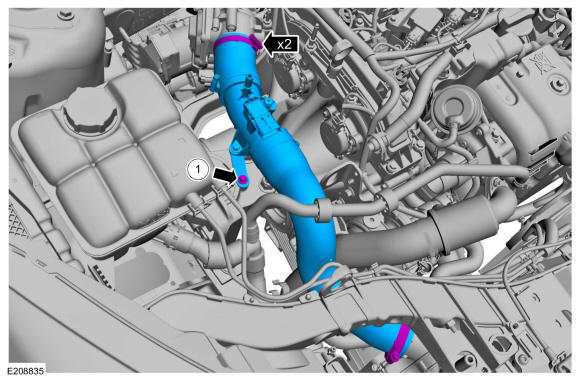

    1. Install the CAC outlet pipe bracket bolt.

      Torque

      : 97 lb.in (11 Nm)

    2. Tighten the CAC outlet pipe clamps.
    GFD265253Courtesy of FORD MOTOR COMPANY

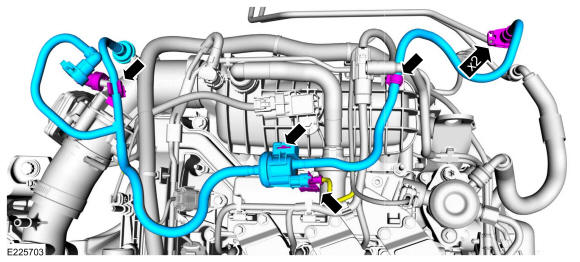

    1. Install the EVAP tube assembly and attach the retainers.
    2. Connect the quick release couplings. Refer to: Quick Release Coupling .
    3. Connect the EVAP purge valve electrical connector.
    GFD265254Courtesy of FORD MOTOR COMPANY

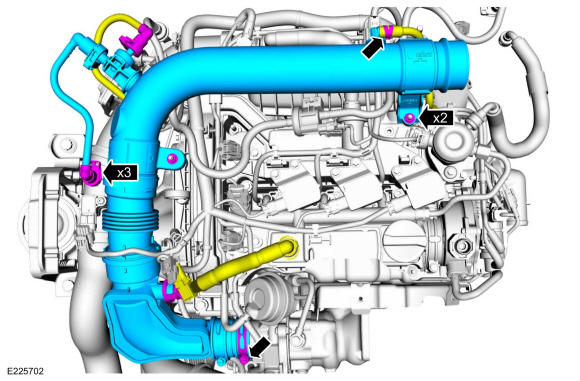

    1. Install the TC inlet pipe and clamp.
    2. Install the nuts.

      Torque

      : 97 lb.in (11 Nm)

    3. Connect the quick release couplings. Refer to: Quick Release Coupling .
    4. Connect the vacuum hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD265255Courtesy of FORD MOTOR COMPANY

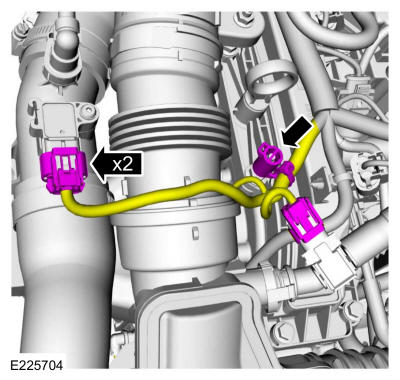

    • Connect the turbocharger boost pressure (TCBP) and charger air cooler temperature (CACT) sensor electrical connector.

    • Connect the crankcase pressure sensor electrical connector.

    • Attach the wiring harness retainer.

    GFD265256Courtesy of FORD MOTOR COMPANY

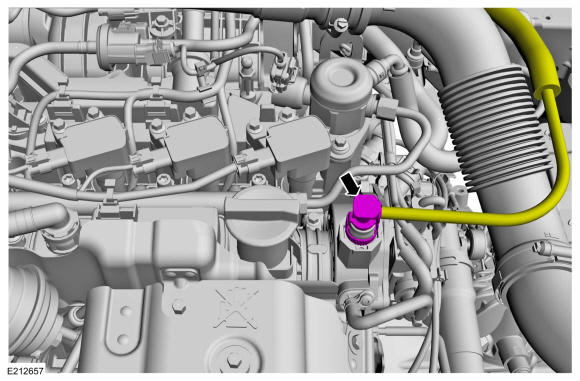

  37. Connect the vacuum tube.
    GFD265257Courtesy of FORD MOTOR COMPANY
  38. Install the catalytic converter. Refer to: Catalytic Converter .

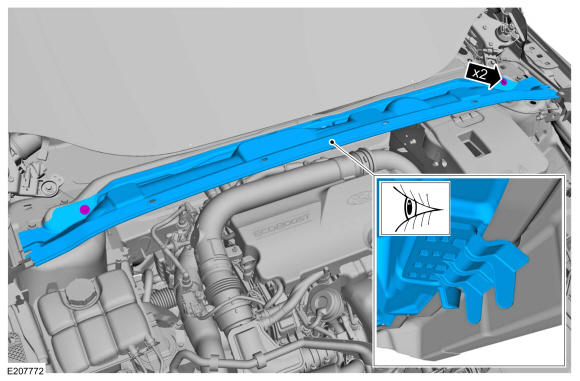

  39. Install the cowl panel and the bolts.

    Torque

    : 97 lb.in (11 Nm)

    GFD265258Courtesy of FORD MOTOR COMPANY
  40. Install the cowl panel grille. Refer to: Cowl Panel Grille .

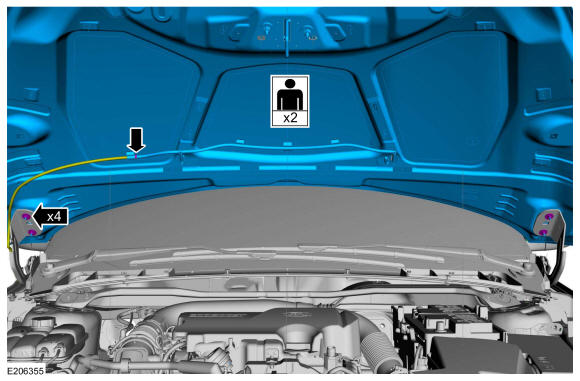

    1. With the aid of an assistant, install the hood and the nuts.

      Torque

      : 97 lb.in (11 Nm)

    2. Connect the windshield washer hose.
    GFD265259Courtesy of FORD MOTOR COMPANY

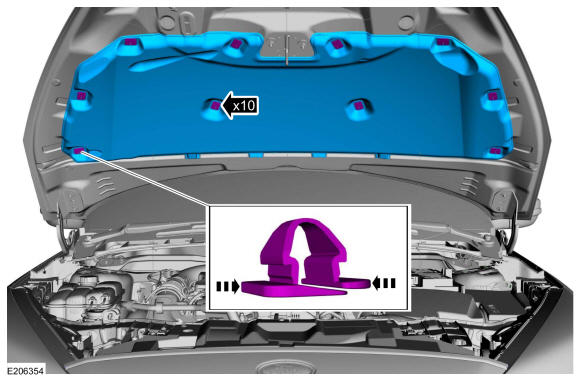

  41. Install the hood insulator and the retainers.
    GFD265260Courtesy of FORD MOTOR COMPANY

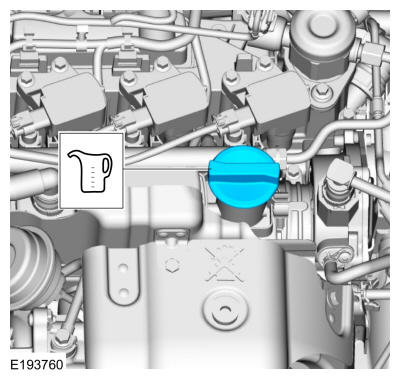

  42. Fill the engine with clean engine oil. Refer to: Specifications  .
    GFD265261Courtesy of FORD MOTOR COMPANY
  43. Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  44. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
