Valve Clearance Adjustment

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

GFD264740Courtesy of FORD MOTOR COMPANY
 303-1604 Timing Peg, Crankshaft TDC
GFD264741Courtesy of FORD MOTOR COMPANY
 303-1605 Alignment Tool, Camshaft
Feeler Gauge

Materials

Name Specification
Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil XO-5W20-QSP WSS-M2C945-A
Motorcraft® Gasket Maker TA-16 WSK-M2G348-A5

Check

  1. Remove the valve cover. Refer to: Valve Cover  .
  2. NOTE: Only rotate the crankshaft clockwise.

    Rotate the crankshaft until the corresponding piston is at TDC and then measure the valve clearance(s). Use the General Equipment: Feeler Gauge

  3. Note down each cylinder number and the valve clearances measured.
  4. Compare the measured valve clearance(s) with the specifications. Refer to: Specifications  .

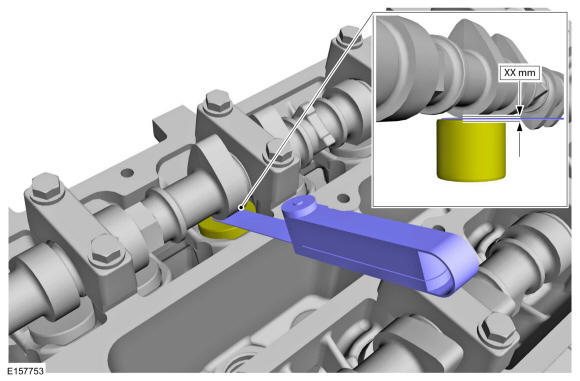

GFD264742Courtesy of FORD MOTOR COMPANY

Adjustment

  1. NOTE: The following steps are only necessary if adjustment is required.
  2. Remove the VCT unit. Refer to: Variable Camshaft Timing (VCT) Unit  .
  3. Remove Special Service Tool: 303-1605 Alignment Tool, Camshaft.
    GFD264743Courtesy of FORD MOTOR COMPANY

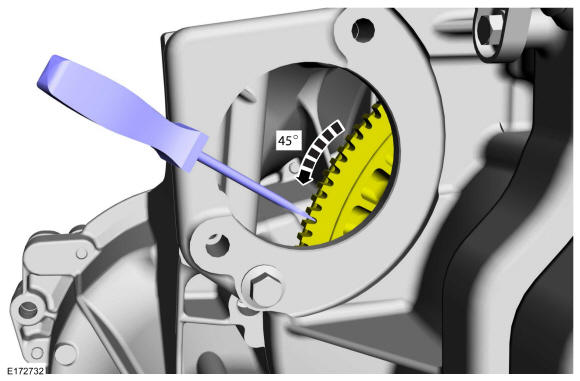

  4. Using the screwdriver, rotate the flywheel in a counterclockwise direction.
    GFD264744Courtesy of FORD MOTOR COMPANY
  5. NOTE: Note the position of the components before removal.

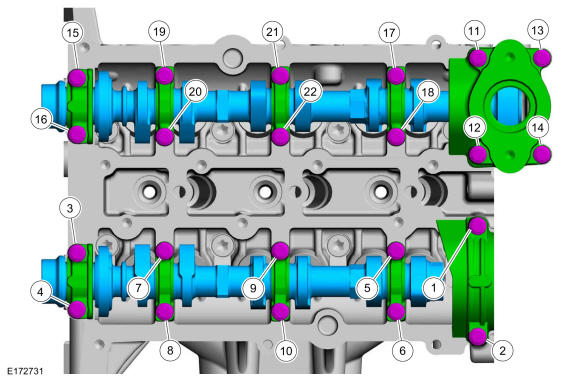

    Loosen the camshaft bearing caps in sequence, 2 turns at a time until all tension is released from the camshaft bearing caps and remove the bolts, caps and camshafts.

    GFD264745Courtesy of FORD MOTOR COMPANY
    • Remove the valve tappet and read the thickness from the underside.

    • The number on the valve tappet indicates the thickness of the bottom of the tappet. However, the number only indicates the digits after the decimal point (example: 725 = 2.725).

    • Calculate the required thickness of the valve tappet with the following formula: X = S + M - V

    • Required thickness of tappet = X

    • Thickness of currently fitted tappet = S

    • Measurement of existing valve clearance (actual value) = M

    • Desired valve clearance = V

  8. Install the correct valve tappet.
  9. NOTE: Make sure that the components are installed to the position noted before removal.

    Lubricate and install the camshafts approximately at valve overlap position cylinder No. 1.

    Material

    : Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

  10. Lubricate the camshaft journals and camshaft bearing caps with clean engine oil and install.

    Material

    : Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

  11. Install all the bolts finger tight before final tightening.

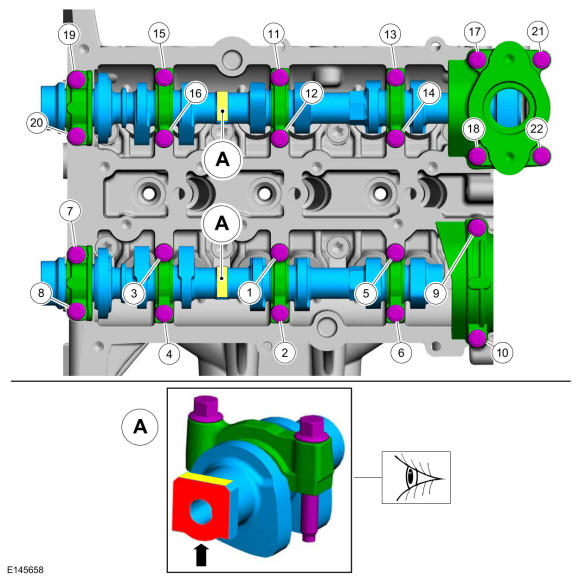

  12. Tighten 2 turns at a time in the sequence shown in 2 stages.

    Torque

    :Stage 1: 35 lb.in (4 Nm) Stage 2: 89 lb.in (10 Nm)

    GFD264746Courtesy of FORD MOTOR COMPANY
    1. Turn the camshafts to measure the valve clearance.
    2. Measure the valve clearances and repeat this procedure as necessary until all valve clearances are within the specified tolerance.
  14. NOTE: Note the position of the components before removal.

    Loosen the camshaft bearing caps in sequence, 2 turns at a time until all tension is released from the camshaft bearing caps and remove the bolts, caps and camshafts.

    GFD264745Courtesy of FORD MOTOR COMPANY
  15. NOTE: Make sure that the mating faces are clean and free of foreign material.
    NOTE: The component must be installed within 5 minutes of applying the sealant.

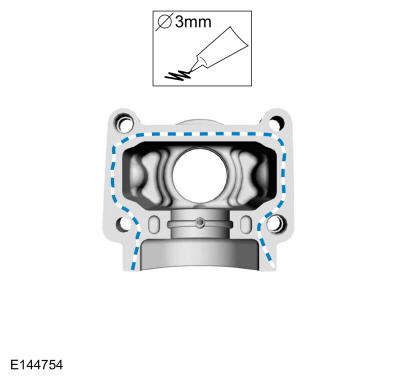

    Apply 3 mm (0.118 in) beads of gasket maker to the intake rear camshaft bearing cap mating surface as shown.

    Material

    : Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

    GFD264747Courtesy of FORD MOTOR COMPANY
  16. NOTE: Make sure that the mating faces are clean and free of foreign material.
    NOTE: The component must be installed within 5 minutes of applying the sealant.

    Apply 3 mm (0.118 in) beads of gasket maker to the exhaust rear camshaft bearing cap mating surface as shown.

    Material

    : Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

    GFD264748Courtesy of FORD MOTOR COMPANY
  17. NOTE: Make sure that the components are installed to the position noted before removal.

    Lubricate and install the camshafts approximately at valve overlap position cylinder No. 1.

    Material

    : Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

  18. Lubricate the camshaft journals and camshaft bearing caps with clean engine oil and install.

    Material

    : Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

  19. Install all the bolts finger tight before final tightening.
  20. Tighten 2 turns at a time in the sequence shown in 2 stages.

    Torque

    :Stage 1: 35 lb.in (4 Nm) Stage 2: 89 lb.in (10 Nm)

    GFD264746Courtesy of FORD MOTOR COMPANY

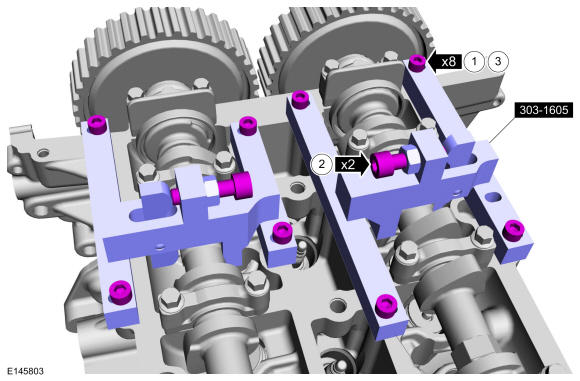

    1. Install Special Service Tool: 303-1605 Alignment Tool, Camshaft.
    2. NOTE: Only tighten the bolts finger tight at this stage.
    3. Torque

      : 89 lb.in (10 Nm)

    GFD264749Courtesy of FORD MOTOR COMPANY
  22. Install Special Service Tool: 303-1604 Timing Peg, Crankshaft TDC.
    GFD264750Courtesy of FORD MOTOR COMPANY
  23. NOTE: Only rotate the crankshaft clockwise.

    Rotate the crankshaft slowly until the crankshaft stops.

  24. Remove Special Service Tool: 303-1604 Timing Peg, Crankshaft TDC.

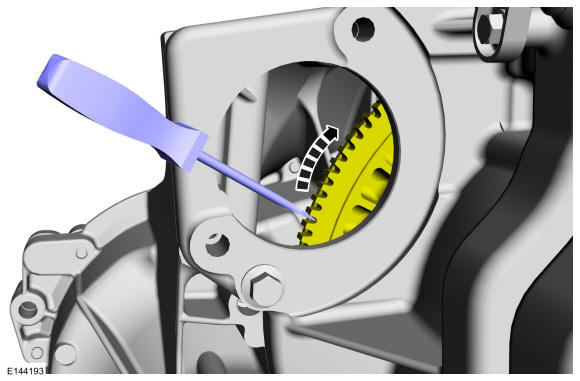

    GFD264751Courtesy of FORD MOTOR COMPANY
  25. Install the VCT unit. Refer to: Variable Camshaft Timing (VCT) Unit  .
