Section 1 (Engine - 1.0L ECOBOOST (92KW/125PS)): Disassembly: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	300-OTC1819E2, 200# Floor Crane, Fold Away
Courtesy of FORD MOTOR COMPANY	303-1602 Locking Tool, Crankshaft
Courtesy of FORD MOTOR COMPANY	303-1611 Torque Multiplier
Courtesy of FORD MOTOR COMPANY	303-1611-01 Adapter for 303-1611
Courtesy of FORD MOTOR COMPANY	303-1611-02 Adapter for 303-1611, Torque Multiplier TKIT-2014A-FL TKIT-2014A-ROW
Courtesy of FORD MOTOR COMPANY	303-293 Remover, Crankshaft Seal
Courtesy of FORD MOTOR COMPANY	307-005 (T59L-100-B) Slide Hammer
Courtesy of FORD MOTOR COMPANY	310-206 Remover, Fuel Injector TKIT-2009A-FLM
Mounting Stand
Polydrive Bit Socket
Hot Air Gun
Hose Clamp Remover/Installer
4 mm Drill Bit

6-Speed Manual Transmission - B6

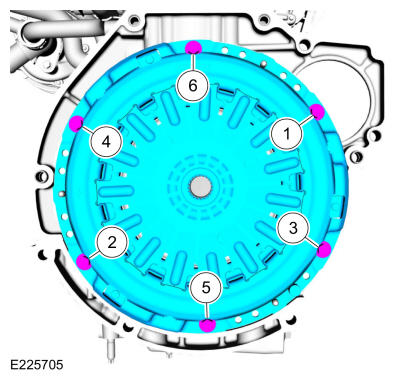

1. Loosen each bolt 2 turns at a time until all bolts are removed.
   • Remove the pressure plate and the clutch disc.

   Courtesy of FORD MOTOR COMPANY

   6-Speed Automatic Transmission - 6F15/6-Speed Manual Transmission - B6

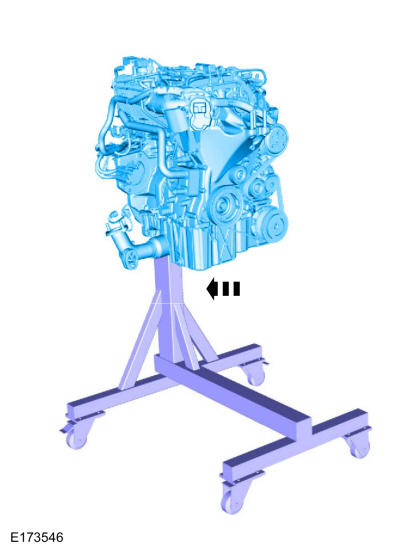

2. Install engine on the mounting stand. Use the General Equipment: Mounting Stand

   Courtesy of FORD MOTOR COMPANY

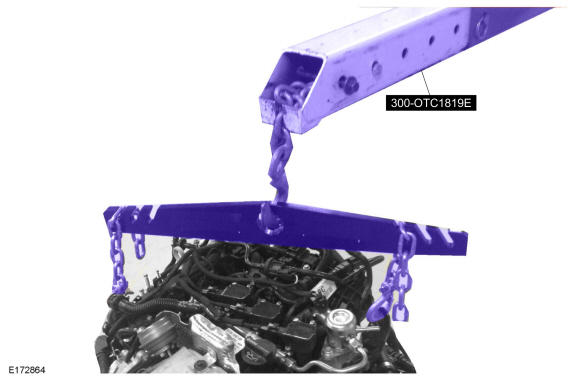

3. Remove Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

   Courtesy of FORD MOTOR COMPANY

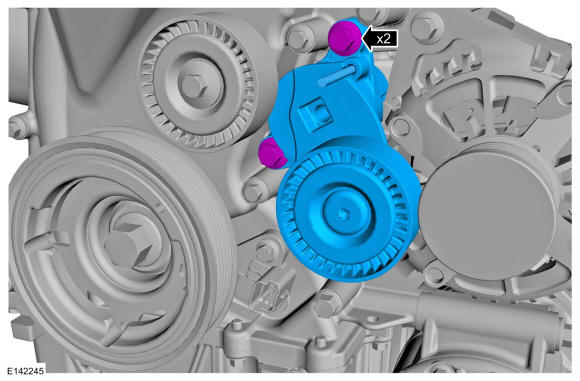

4. WARNING: Take extra care when handling the compressed spring.

   Remove the bolts and the accessory drive belt tensioner. Use the General Equipment: 4 mm Drill Bit

   Courtesy of FORD MOTOR COMPANY

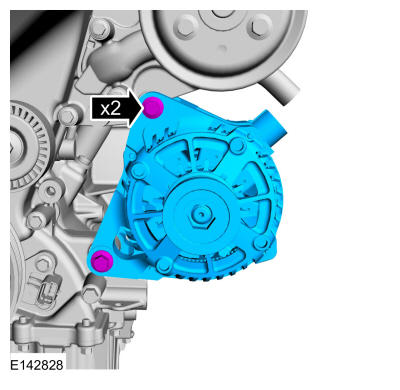

5. Remove the bolts and the generator.

   Courtesy of FORD MOTOR COMPANY

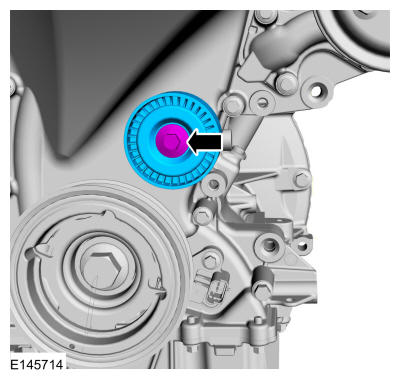

6. Remove the bolt and the accessory drive belt idler pulley.

   Courtesy of FORD MOTOR COMPANY

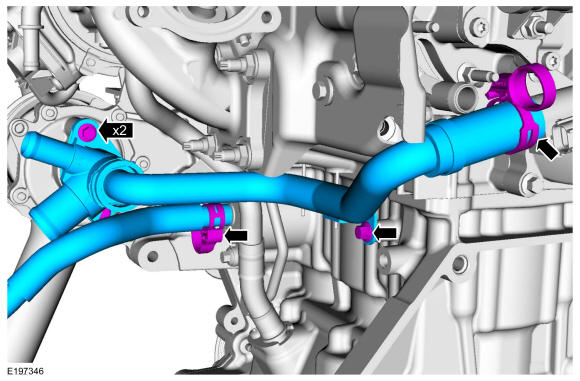

7. Release the clamp, remove the bolts and the coolant hose assembly. Use the General Equipment: Hose Clamp Remover/Installer

   Courtesy of FORD MOTOR COMPANY

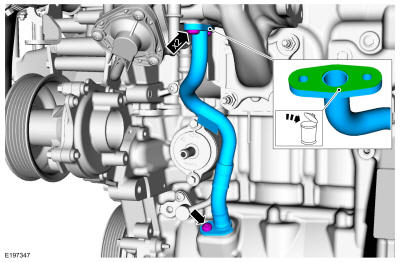

8. NOTE: Inspect the O-ring seal on the turbocharger drain tube. Replace the turbocharger drain tube, if necessary.
   • Remove the retainers and the turbocharger oil drain tube.
   • Remove and discard the gasket.

   Courtesy of FORD MOTOR COMPANY

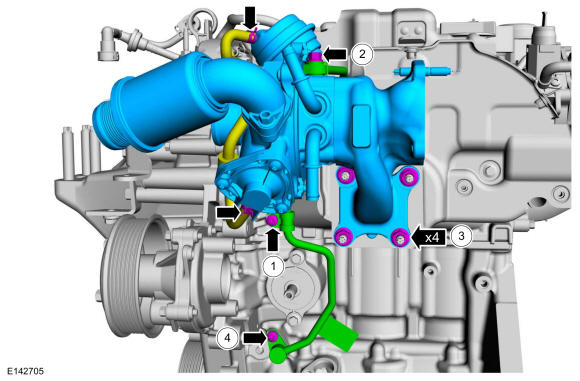

9. • Remove the retainers, banjo bolt and the turbocharger oil supply tube.
   • Discard the turbocharger oil supply tube.
   • Release the vacuum hose clamps. Use the General Equipment: Hose Clamp Remover/Installer
   • Remove the nuts and the turbocharger assembly.

   Courtesy of FORD MOTOR COMPANY

10. Remove and discard the turbocharger gasket.

    Courtesy of FORD MOTOR COMPANY

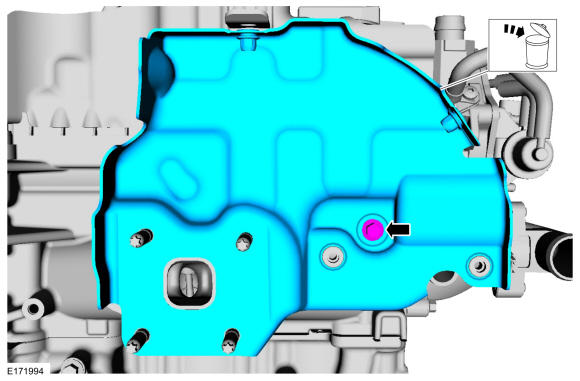

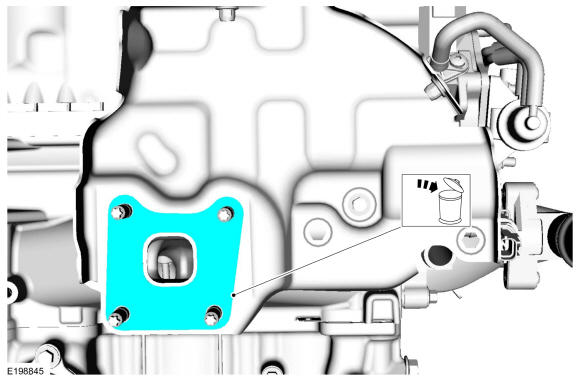

11. • Remove the bolt and the heat shield.
    • Discard the heat shield.

    Courtesy of FORD MOTOR COMPANY

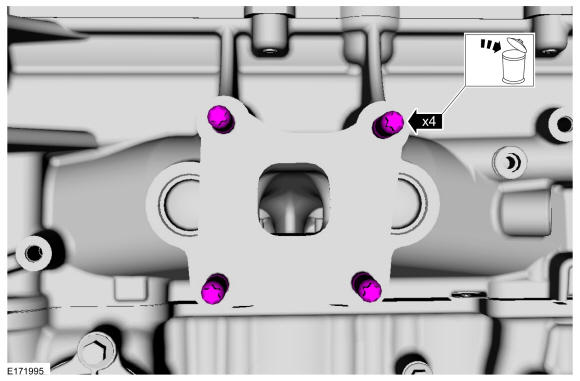

12. Remove and discard the studs.

    Courtesy of FORD MOTOR COMPANY

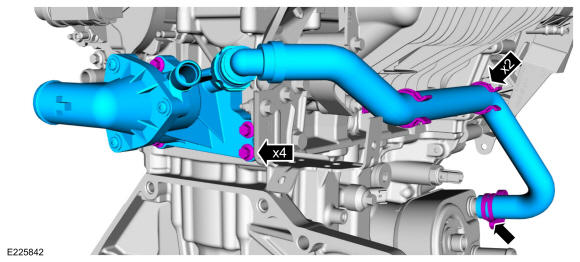

13. • Disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    • Detach the coolant hose from the retainers.
    • Remove the bolts and the coolant hose assembly.

    Courtesy of FORD MOTOR COMPANY

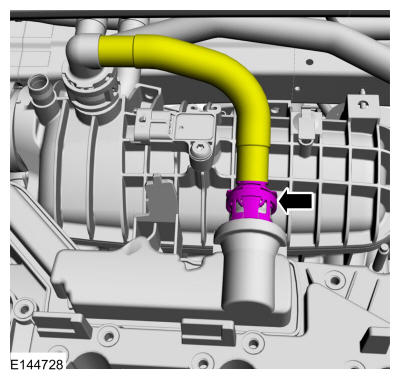

14. Disconnect the PCV tube coupling.

    Courtesy of FORD MOTOR COMPANY

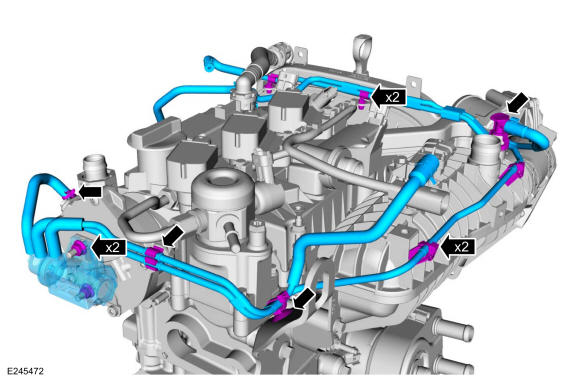

15. • Release the clamp and disconnect the vacuum hose.
    • Disconnect the vacuum harness quick connector.
    • Remove the vacuum solenoid nuts.
    • Detach the retainers and remove the vacuum harness.

    Courtesy of FORD MOTOR COMPANY

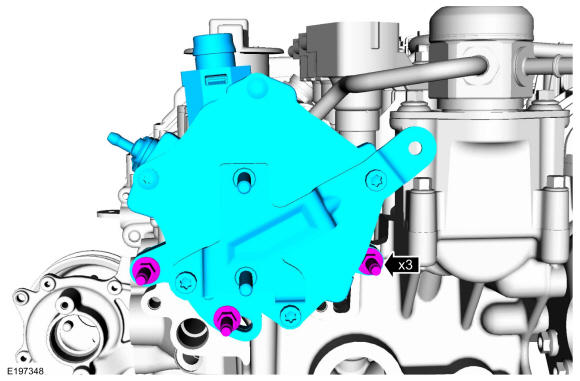

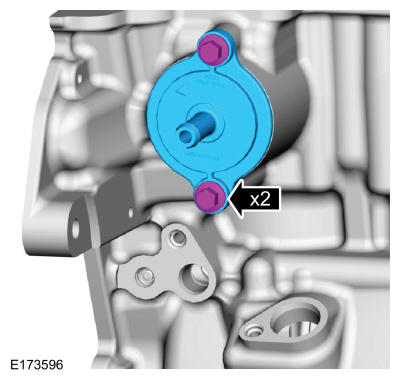

16. Remove the stud bolts and the vacuum pump.

    Courtesy of FORD MOTOR COMPANY

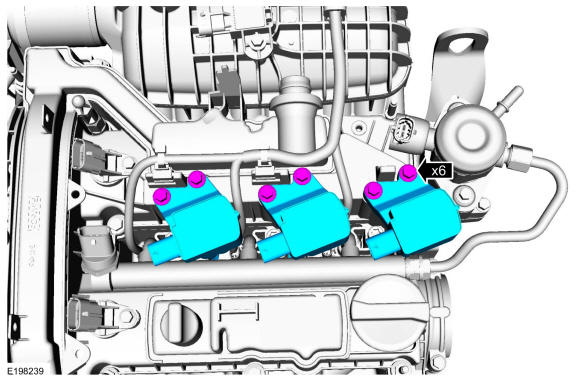

17. Remove the bolts and the ignition coil-on-plugs.

    Courtesy of FORD MOTOR COMPANY

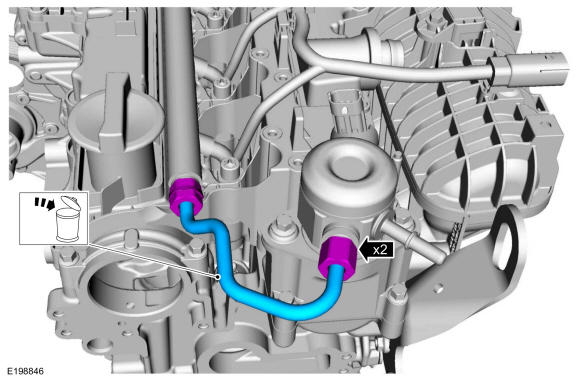

18. Remove and discard the high pressure fuel tube.

    Courtesy of FORD MOTOR COMPANY

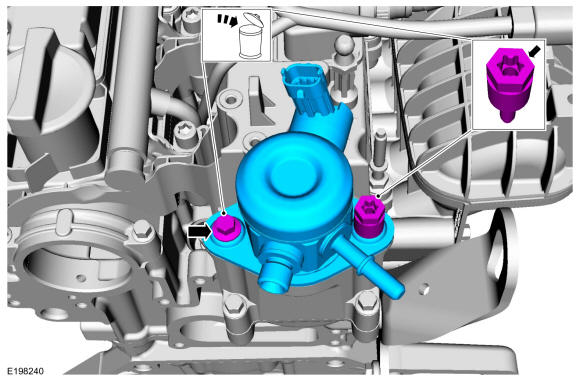

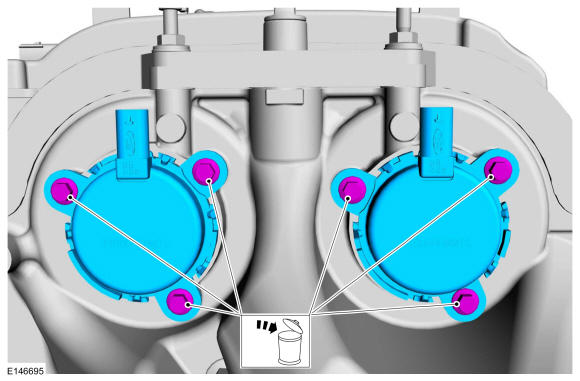

19. • Loosen each bolt 1 turn at a time until all bolts are removed.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

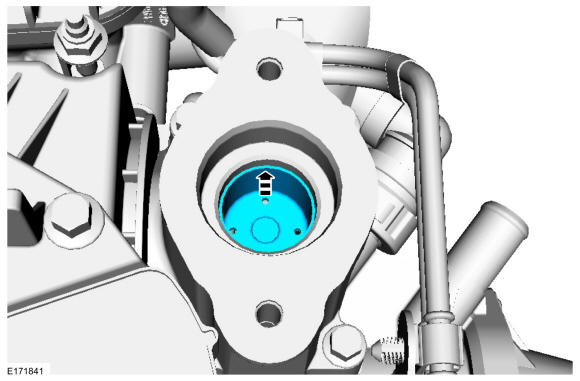

20. Remove the high-pressure fuel pump tappet.

    Courtesy of FORD MOTOR COMPANY

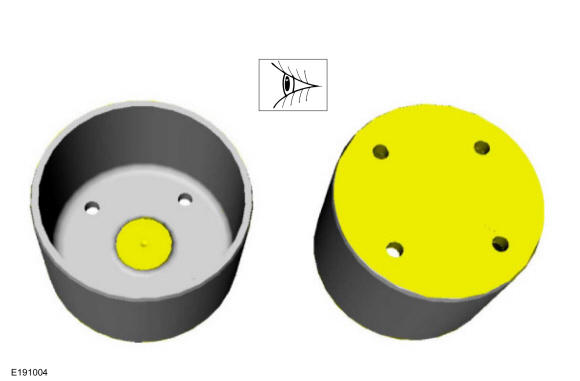

21. Inspect the high-pressure fuel pump tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the fuel pump tappet drive lobe. Install new components as needed.

    Courtesy of FORD MOTOR COMPANY

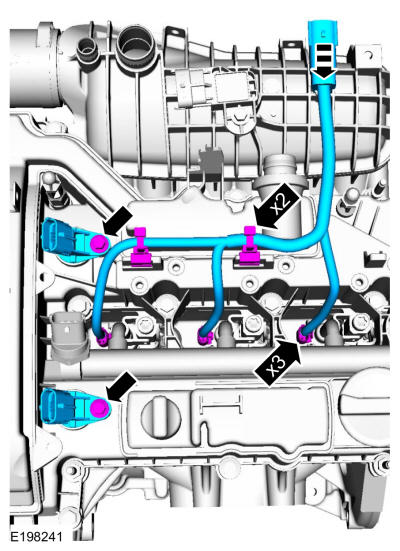

22. • Remove the retainers and the CMP sensors.
    • Detach the retainers, disconnect the fuel injector electrical connectors and remove the wire harness.

    Courtesy of FORD MOTOR COMPANY

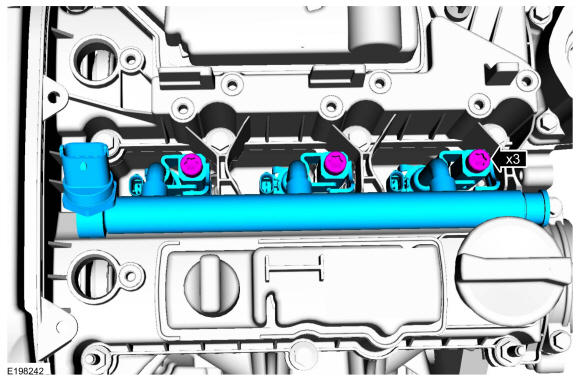

23. NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.
    NOTE: Use regulated low pressure compressed air to remove any dirt or foreign material from the cylinder head, block and general surrounding area of the fuel rail and the fuel injectors.
    NOTE: When removing the fuel rails, the fuel injectors may remain in the cylinder head and require the use of a Fuel Injector Remover tool to extract.

    Remove the bolts and the fuel rail.

    Courtesy of FORD MOTOR COMPANY

24. NOTE: Take extra care when handling the components.
    NOTE: Make sure that the component is clean, free of foreign material and lubricant.
    NOTE: Only use moderate force.

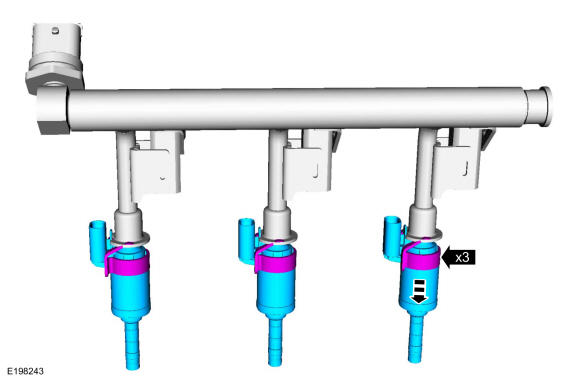

    Remove any of the fuel injectors that remained in the fuel rail.

    Courtesy of FORD MOTOR COMPANY

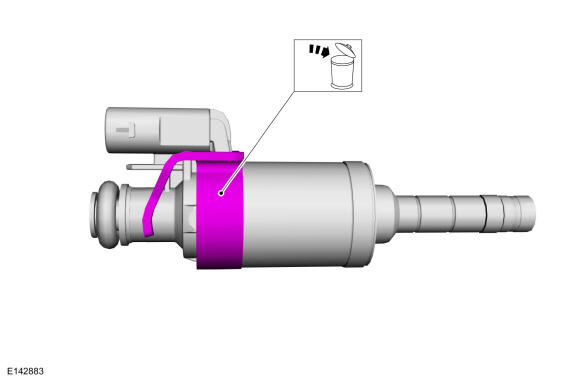

25. NOTE: Take extra care when handling the components

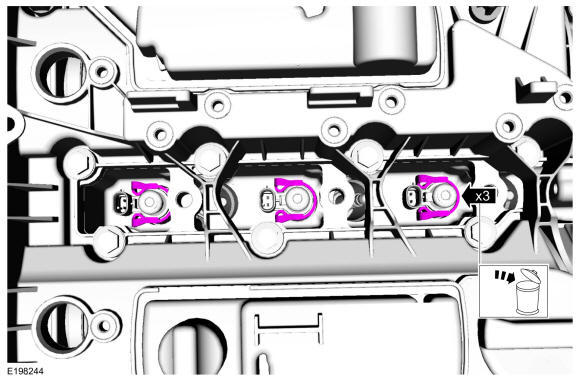

    Remove and discard the fuel injector clip.

    Courtesy of FORD MOTOR COMPANY

26. NOTE: This step is only necessary if the component remains in the cylinder head.

    Remove and discard the fuel injector clip.

    Courtesy of FORD MOTOR COMPANY

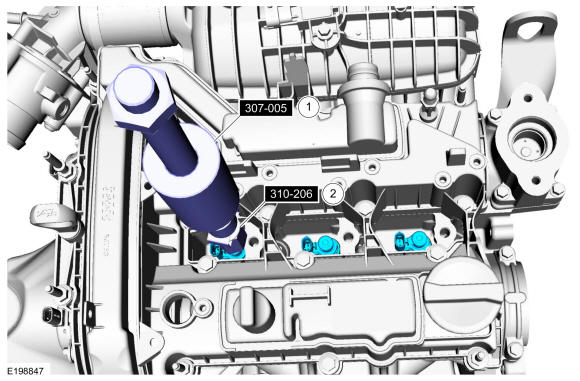

27. NOTE: This step is only necessary if the component remains in the cylinder head.

    Remove the fuel injectors. Use Special Service Tool: 307-005 (T59L-100-B) Slide Hammer., 310-206 Remover, Fuel Injector.

    Courtesy of FORD MOTOR COMPANY

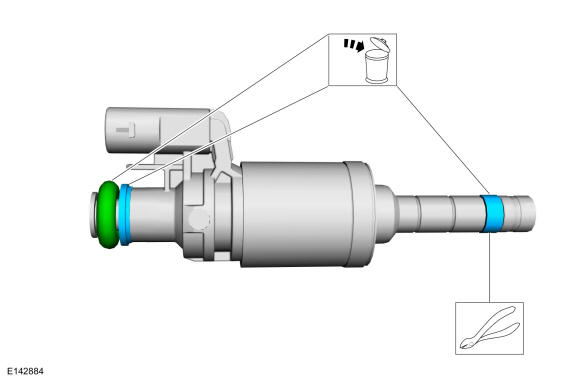

28. NOTE: Take extra care when handling the components
    NOTE: Make sure that the component is clean, free of foreign material and lubricant.

    Remove and discard the fuel injector seal, washer and O-ring seal.

    Courtesy of FORD MOTOR COMPANY

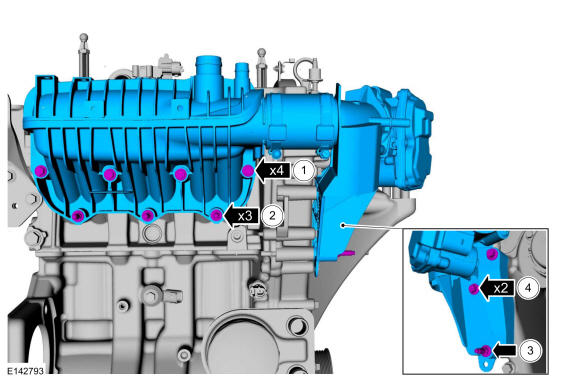

29. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

    Remove the bolts, studs and the intake manifold.

    Courtesy of FORD MOTOR COMPANY

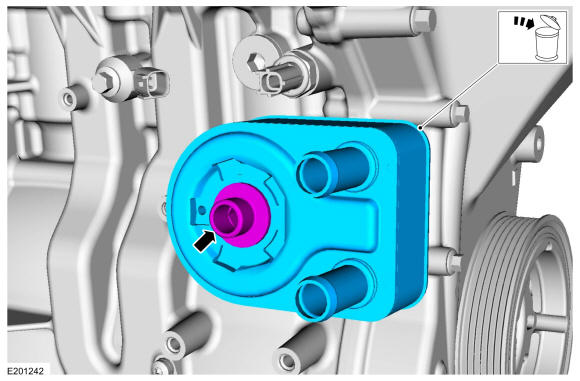

30. NOTE: A new oil cooler must be installed or severe damage to the engine occur.
    • Remove the bolt and the oil cooler.
    • Discard the oil cooler.

    Courtesy of FORD MOTOR COMPANY

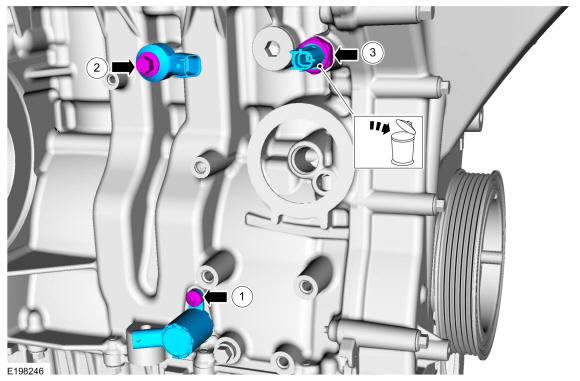

31. 1. Remove the retainer and the oil pump control solenoid.
    2. NOTE: Note the position of the components before removal.

       Remove the bolts and the KS.

    3. Remove and discard the oil pressure switch.

    Courtesy of FORD MOTOR COMPANY

32. Remove the bolts and the VCT solenoids.

    Courtesy of FORD MOTOR COMPANY

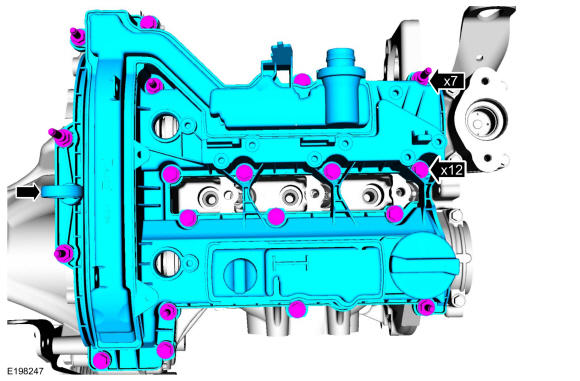

33. • Remove the oil level indicator.
    • Remove the studs, bolts and the valve cover.

    Courtesy of FORD MOTOR COMPANY

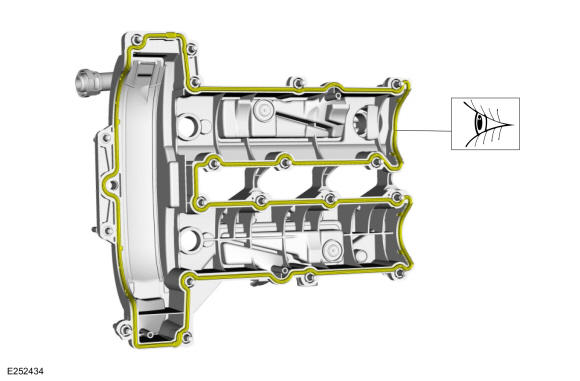

34. Inspect the valve cover gasket, replace if necessary.

    Courtesy of FORD MOTOR COMPANY

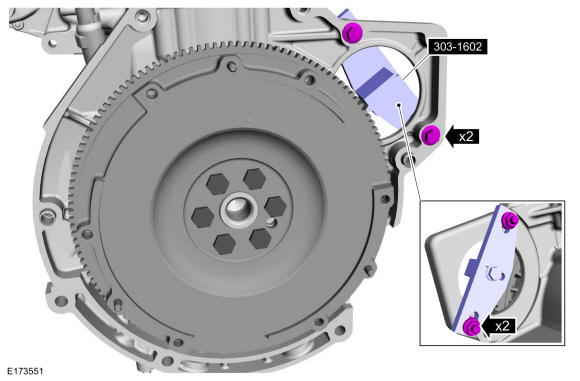

35. NOTE: Flywheel shown, flexplate similar

    Install Special Service Tool: 303-1602 Locking Tool, Crankshaft.

    Courtesy of FORD MOTOR COMPANY

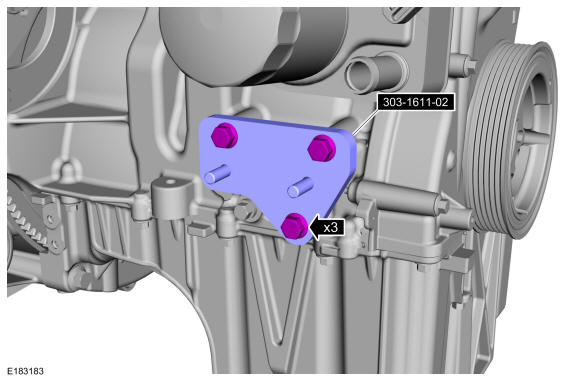

36. 1. M8x30
    2. M8x25Install Special Service Tool: 303-1611-02 Adapter for 303-1611, Torque Multiplier.

       Torque

       : 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

37. Install Special Service Tool: 303-1611-01 Adapter for 303-1611.

    Torque

    : 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

38. Only tighten the nut finger tight at this stage. Install Special Service Tool: 303-1611 Torque Multiplier.

    Courtesy of FORD MOTOR COMPANY

39. Loosen:: 5 turn(s)

    Courtesy of FORD MOTOR COMPANY

40. Remove Special Service Tool: 303-1611 Torque Multiplier.

    Courtesy of FORD MOTOR COMPANY

41. • Remove and discard the crankshaft bolt.
    • Remove the crankshaft pulley.
    • NOTE: The production engine is not equipped with a friction washer. Whenever the crankshaft pulley is removed, a friction washer (base part number 6378) must be installed.

      If equipped, remove and discard the friction washer.

    Courtesy of FORD MOTOR COMPANY

42. Remove Special Service Tool: 303-1611-01 Adapter for 303-1611.

    Courtesy of FORD MOTOR COMPANY

43. Remove Special Service Tool: 303-1611-02 Adapter for 303-1611, Torque Multiplier.

    Courtesy of FORD MOTOR COMPANY

44. NOTE: Flywheel shown, flexplate similar

    Remove the bolts and the flywheel or flexplate.

    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

45. Remove and discard the crankshaft front seal. Use Special Service Tool: 303-293 Remover, Crankshaft Seal.

    Courtesy of FORD MOTOR COMPANY

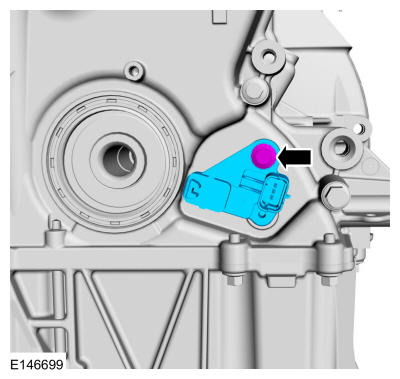

46. Remove the bolt and the CKP sensor.

    Courtesy of FORD MOTOR COMPANY

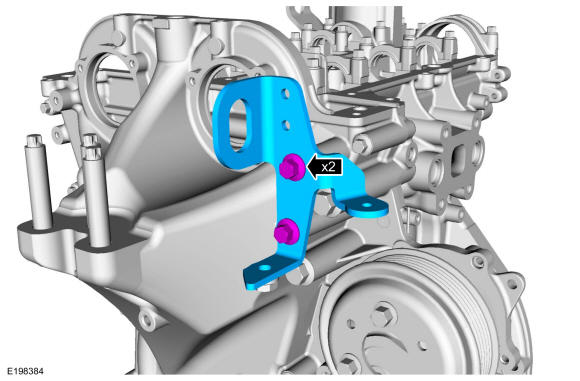

47. Remove the bolts and the engine lifting bracket.

    Courtesy of FORD MOTOR COMPANY

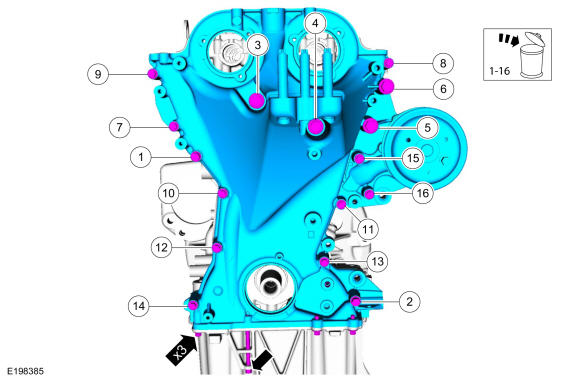

48. NOTE: Note the different lengths of the bolts.
    • Remove and discard the bolts (1 to 16).
    • Remove the oil pan to engine front cover bolts and the engine front cover.

    Courtesy of FORD MOTOR COMPANY

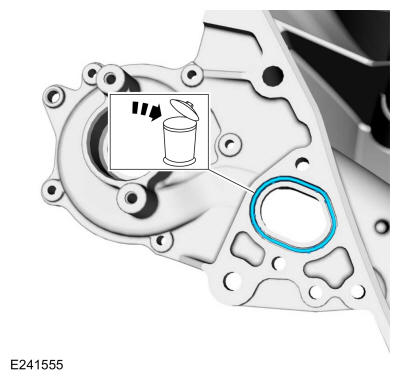

49. Remove and discard the gasket.

    Courtesy of FORD MOTOR COMPANY

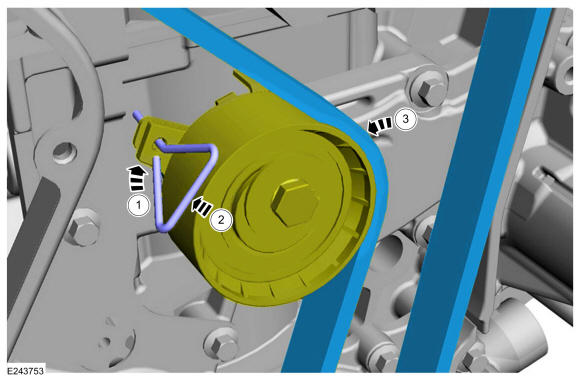

50. 1. Rotate the timing belt tensioner clockwise.
    2. Install a suitable locking pin.
    3. Remove the timing belt.

    Courtesy of FORD MOTOR COMPANY

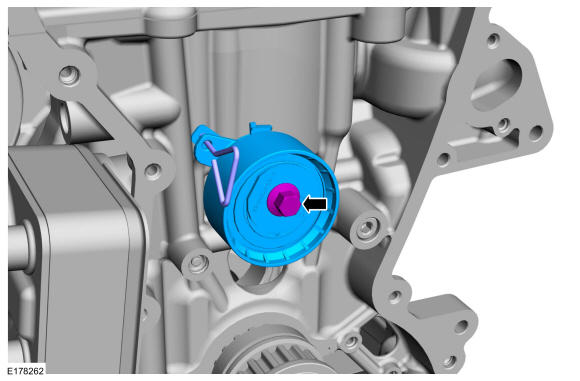

51. WARNING: The tensioner is under spring tension. Be careful when handling the tensioner. Failure to follow this instruction may result in personal injury.

    Remove the bolt and the tensioner.

    Courtesy of FORD MOTOR COMPANY

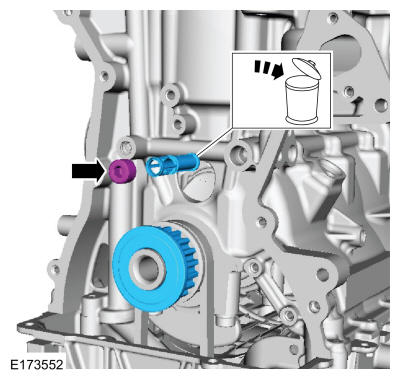

52. • NOTE: Note the position of the component before removal.

      Remove the bolt, remove and discard the oil supply filter.

    • Remove the timing drive pulley.

    Courtesy of FORD MOTOR COMPANY

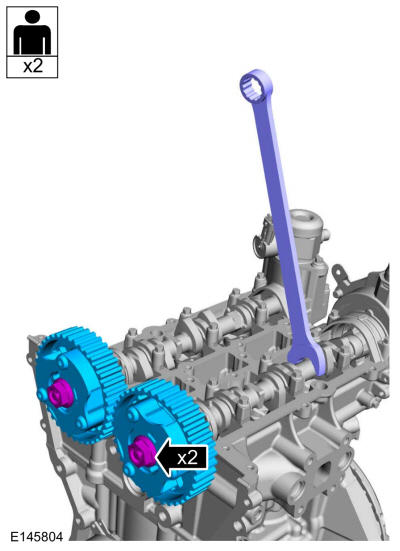

53. NOTE: Use an open-ended wrench to hold the camshafts by the hexagon to prevent the camshafts from turning.

    Remove the bolts and the VCT units.

    Courtesy of FORD MOTOR COMPANY

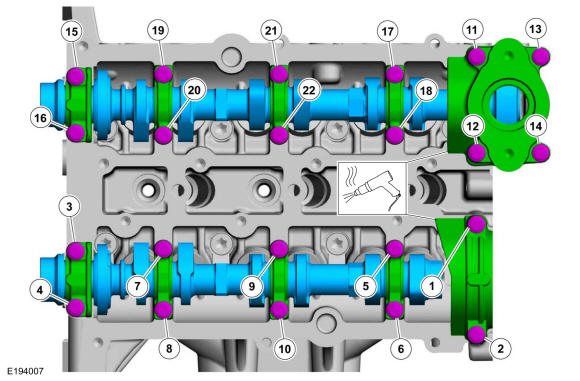

54. NOTE: Note the position of the components before removal.
    NOTE: Use a heat gun to soften the flange sealant, this will aid in the removal of the rear camshaft caps. Failure to follow these directions may result in damage to the camshaft caps.
    NOTE: Inspect the camshaft bores for any scratches that can be felt by hand.

    Loosen the camshaft bearing caps bolts in sequence, 2 turns at a time until all tension is released from the camshaft bearing caps and remove the bolts, caps and the camshafts. Use the General Equipment: Hot Air Gun

    Courtesy of FORD MOTOR COMPANY

55. NOTE: Note the position of the components before removal.

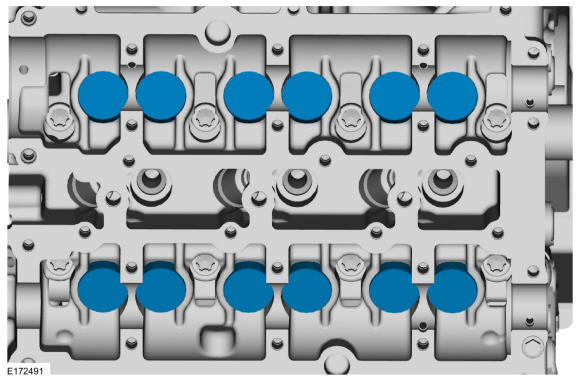

    Remove the valve tappets.

    Courtesy of FORD MOTOR COMPANY

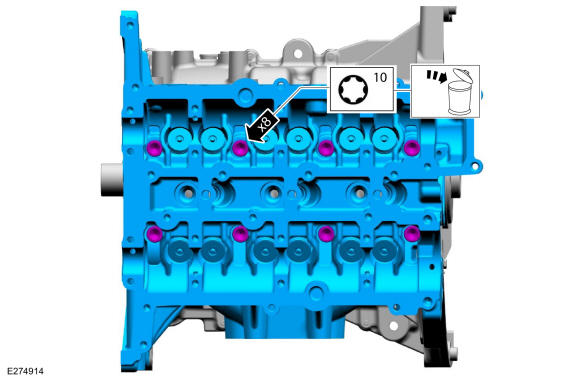

56. 1. Using a Polydrive #10 bit, remove and discard the cylinder head bolts. Use the General Equipment: Polydrive Bit Socket
    2. Remove the cylinder head.

    Courtesy of FORD MOTOR COMPANY

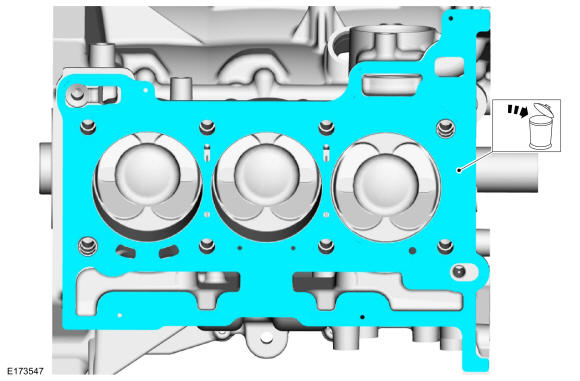

57. Remove and discard the cylinder head gasket.

    Courtesy of FORD MOTOR COMPANY

58. Check the cylinder head distortion. Refer to: Cylinder Head Distortion .
59. Check the cylinder block distortion. Refer to: Cylinder Block Distortion .

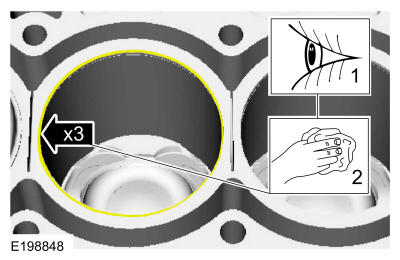

60. 1. Before removing the pistons, inspect the top of the cylinder bores.
    2. NOTE: Do not scratch the cylinder wall, remove all debris from the cylinder.

       If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad.

    Courtesy of FORD MOTOR COMPANY

61. Remove the bolts and the thermostat.

    Courtesy of FORD MOTOR COMPANY

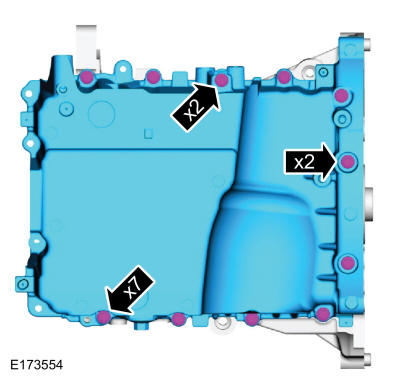

62. Remove the bolts and the oil pan.

    Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - B6

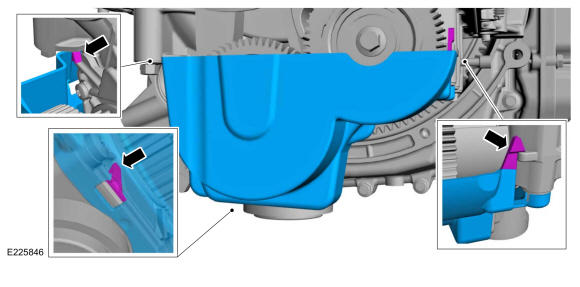

63. Remove the oil pump cover.

    Courtesy of FORD MOTOR COMPANY

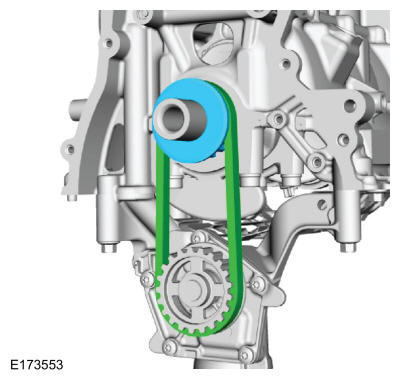

64. NOTE: Note the position of the component before removal.

    Remove the oil pump drive belt and the oil pump drive pulley.

    Courtesy of FORD MOTOR COMPANY

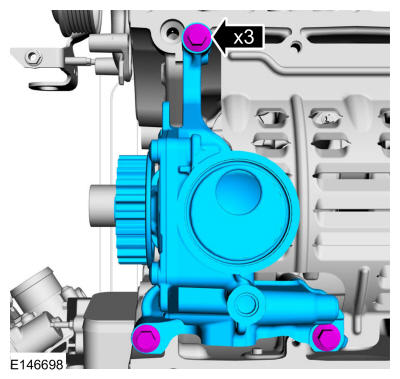

65. Remove the bolts and the oil pump.

    Courtesy of FORD MOTOR COMPANY

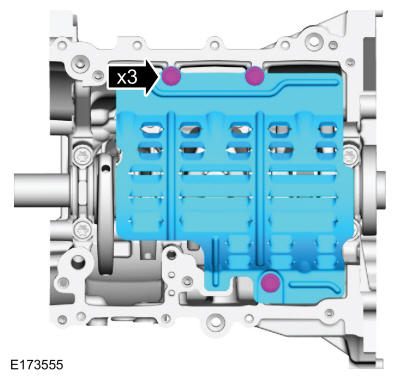

66. Remove the bolts and the oil pan baffle.

    Courtesy of FORD MOTOR COMPANY

    6-Speed Automatic Transmission - 6F15

67. NOTE: Take extra care when handling the component.

    Remove the oil pump cover.

    Courtesy of FORD MOTOR COMPANY

68. Install a 4 mm drill bit into the balance shaft gear. Use the General Equipment: 4 mm Drill Bit

    Courtesy of FORD MOTOR COMPANY

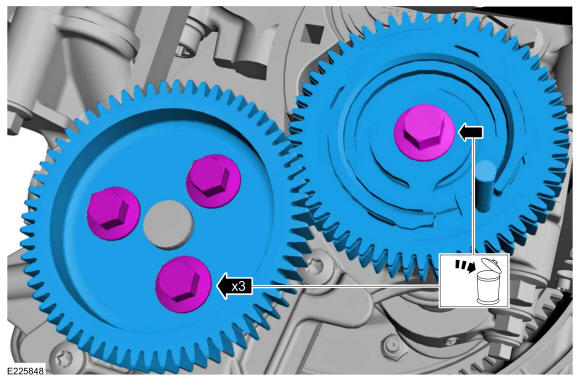

69. Remove and discard the bolts.
    • Remove the oil pump and balance shaft gears.

    Courtesy of FORD MOTOR COMPANY

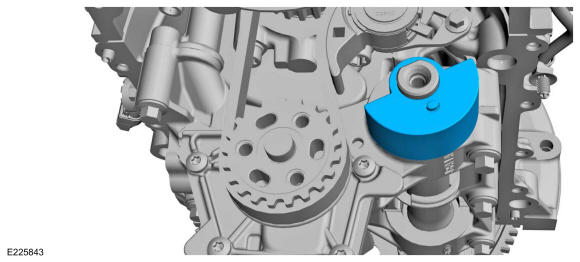

70. Remove the balance shaft weight.

    Courtesy of FORD MOTOR COMPANY

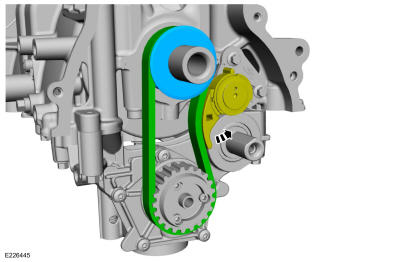

71. 1. Using a suitable tool, rotate the oil pump belt tensioner.
    2. Remove the oil pump belt.
    3. NOTE: Note the position of the component before removal.

       Remove the oil pump drive pulley.

    Courtesy of FORD MOTOR COMPANY

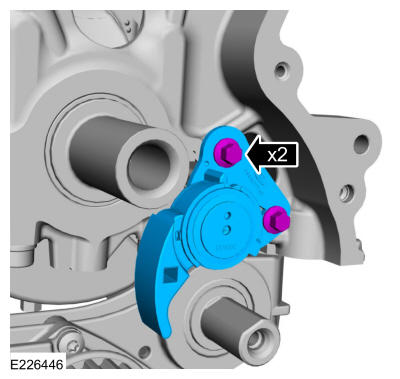

72. Remove the bolts and the oil pump belt tensioner.

    Courtesy of FORD MOTOR COMPANY

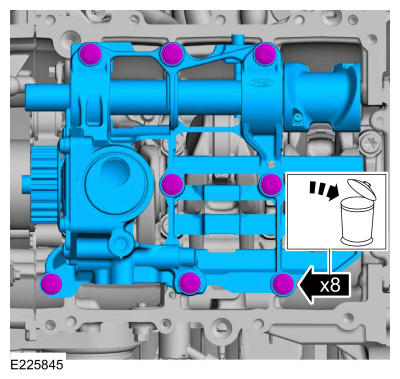

73. NOTE: Discard the bolts.

    Remove the bolts and the oil pump.

    Courtesy of FORD MOTOR COMPANY

    6-Speed Automatic Transmission - 6F15/6-Speed Manual Transmission - B6

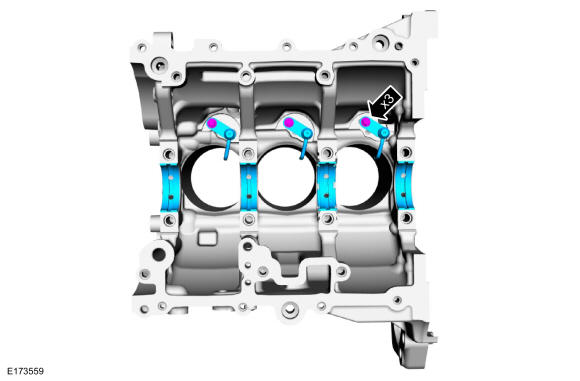

74. • Remove the bolts and the crankshaft rear seal.
    • Discard the crankshaft rear seal.

    Courtesy of FORD MOTOR COMPANY

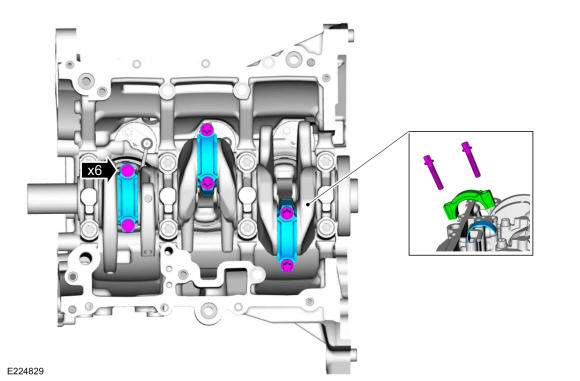

75. NOTE: Mark the position of the parts, so they can be installed in their original positions.

    Remove the bolts and the connecting rod caps.

    Courtesy of FORD MOTOR COMPANY

76. NOTE: Mark the position of the parts, so they can be installed in their original positions.
    NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod.

    Remove the pistons.

    Courtesy of FORD MOTOR COMPANY

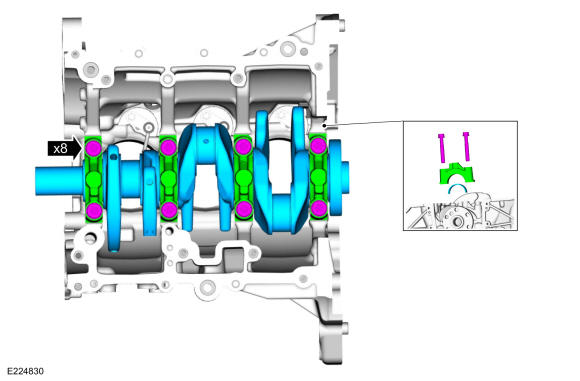

77. NOTE: If the main bearings are being reused, mark them in order for correct orientation and reassembly.
    • Remove the bolts and the main bearing caps.
    • Remove the crankshaft.

    Courtesy of FORD MOTOR COMPANY

78. NOTE: If the main bearings are being reused, mark them in order for correct orientation and reassembly.
    • Remove the crankshaft main bearings.
    • Remove the bolts and the engine piston oil cooler valves.

Courtesy of FORD MOTOR COMPANY
