Cylinder Head: Assembly

WARNING: This page is about a different variant/trim than selected.

NOTE: If installing the original valves, make sure the valves are installed in the same position from which they were removed. Coat the valve stems with clean engine oil.

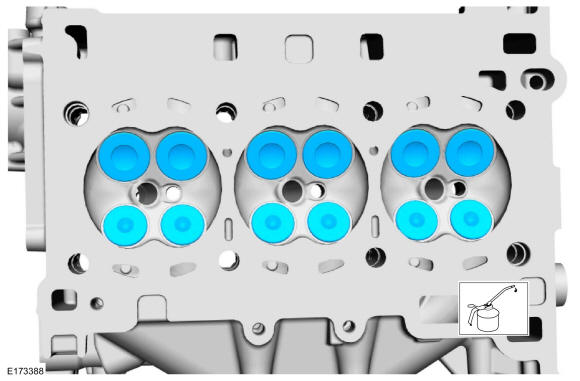

Lubricate and install the intake and exhaust valves.

Material

: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY
NOTE: Use commercially available valve stem seal pliers.

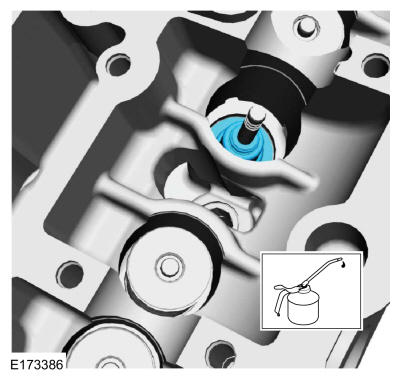

Lubricate and install the valve seals.

Material

: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY
NOTE: Use a small screwdriver and multi-purpose grease to install the valve collets.

Install the valve spring, valve spring retainer and the valve collet. Install Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor., 303-350 (T89P-6565-A) Compressor, Valve Spring., 303-1418 Compressor, Valve Spring.

Material

: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when removing or installing spark plugs, or damage can occur to the cylinder head or spark plug.

Install the spark plugs.

Torque

: 115 lb.in (13 Nm)

Courtesy of FORD MOTOR COMPANY

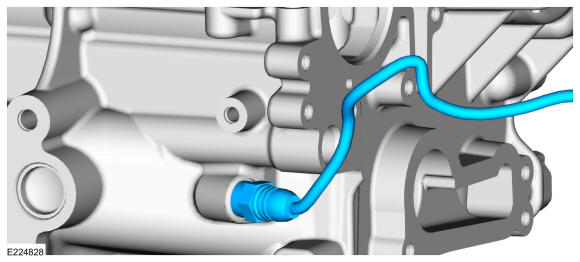

Install a new CHT sensor.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

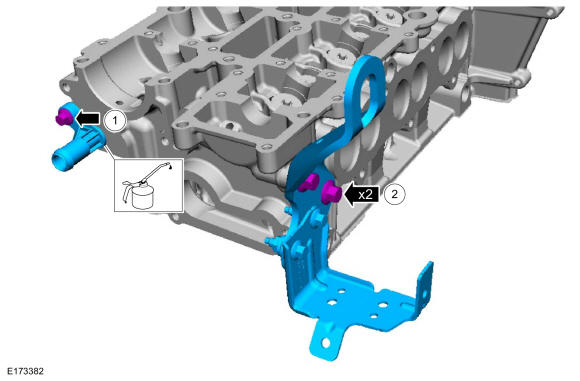

1. Lubricate degas tube O-ring seal with clean engine oil, install the degas tube and the bolt.
  Material

  : Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

  Torque

  : 89 lb.in (10 Nm)
2. Install the engine lifting bracket and the bolts.
  Torque

  : 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
