Removal And Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

1.

With the vehicle In NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting

2.

Remove the front bumper cover lower pin-type retainers.

Courtesy of FORD MOTOR COMPANY

3.

NOTE: On each side.

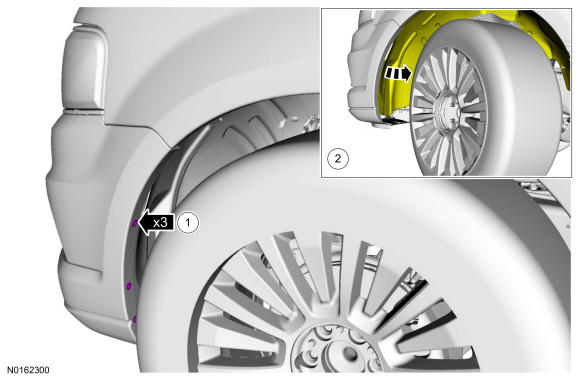

Position the fender splash shields aside.
- 1.

  Remove the LH and RH front fender splash shield screws.
- 2.

  Position the fender splash shields aside.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: On each side.

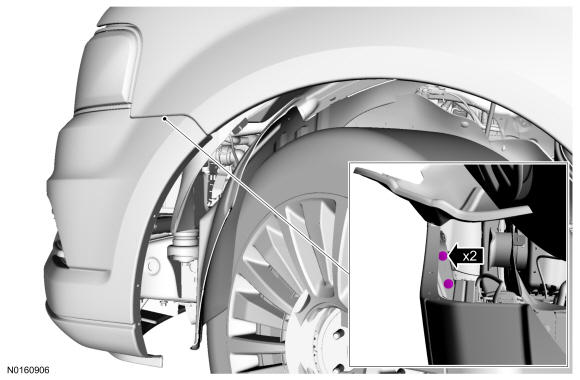

Remove the LH and RH front bumper cover-to-fender bolts.
- To install, tighten to 11 Nm (97 lb-in).

Courtesy of FORD MOTOR COMPANY

5.

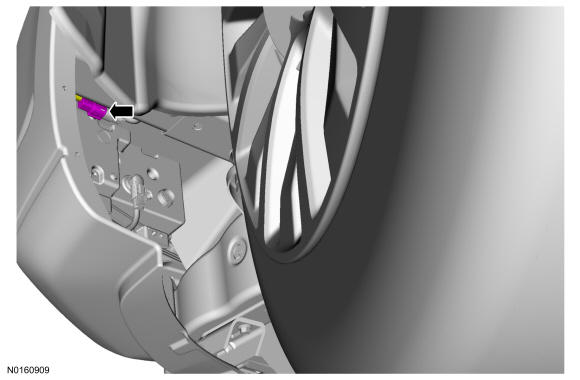

If equipped, disconnect the park aid sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

Halogen fog lamps

6.

NOTE: On each side.

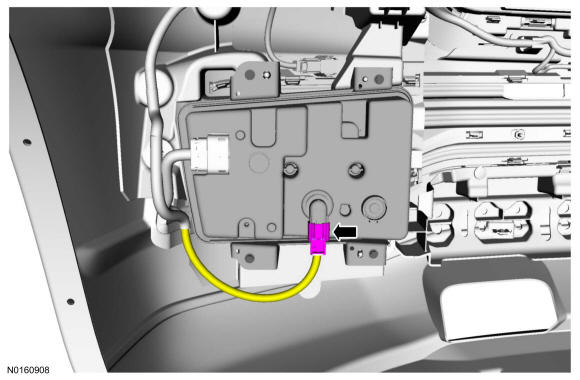

If equipped, disconnect the fog lamp electrical connector.

Courtesy of FORD MOTOR COMPANY

DRL

7.

NOTE: On each side.

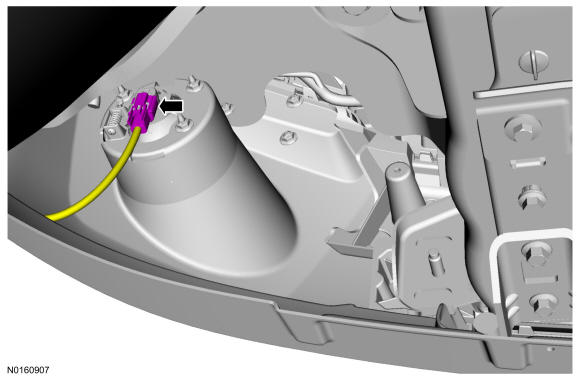

If equipped, disconnect the fog lamp electrical connector.

Courtesy of FORD MOTOR COMPANY

All vehicles

8.

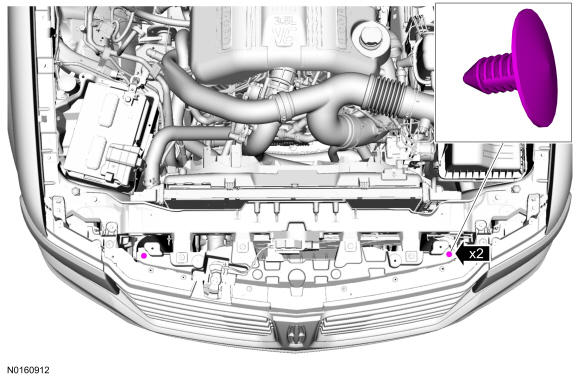

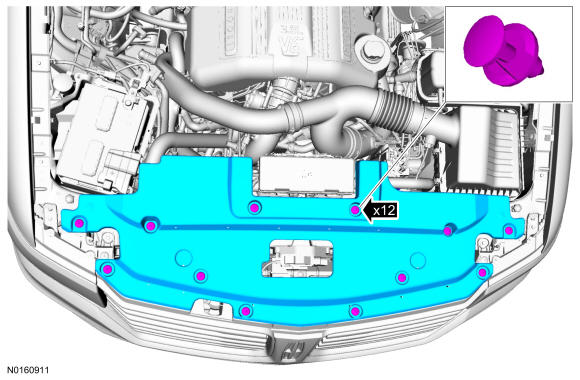

Remove the pin-type retainers and the upper air deflector.

Courtesy of FORD MOTOR COMPANY

9.

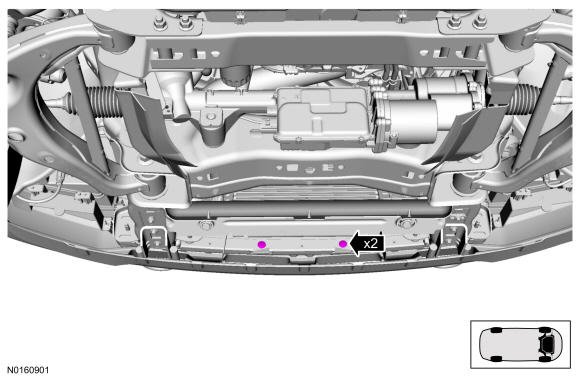

Remove the upper pin-type retainers for the lower air deflector.

Courtesy of FORD MOTOR COMPANY

Navigator

10.

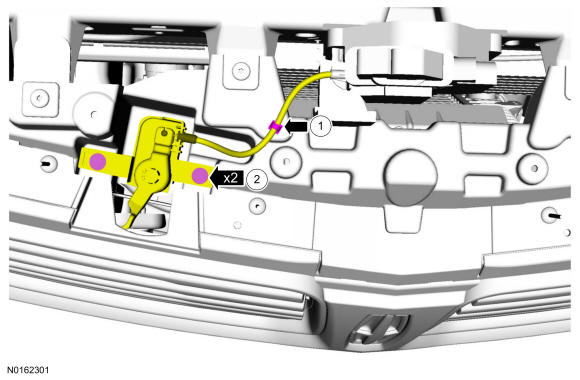

Position the secondary hood release aside.
- 1.

  Disconnect the cable guide.
- 2.

  Remove the secondary hood latch release bolts.
- To install, tighten to 8 Nm (71 lb-in).

Courtesy of FORD MOTOR COMPANY

11.

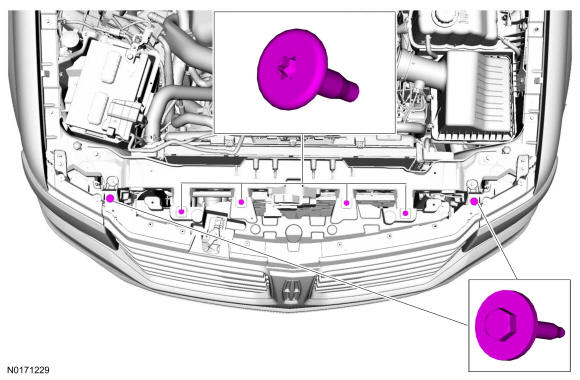

Remove the grille-to-radiator support bolts.
- To install, tighten to 10 Nm (89 lb-in).

Courtesy of FORD MOTOR COMPANY

Expedition

12.

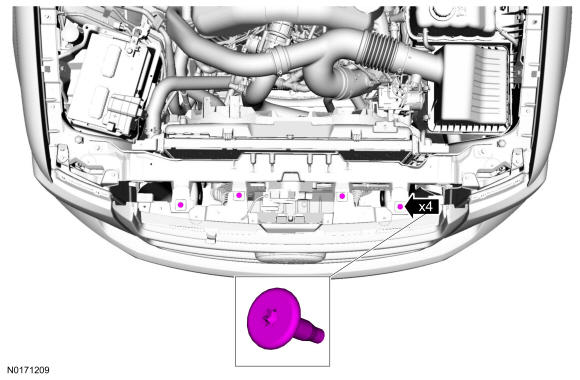

Remove the grille-to-radiator support bolts.
- To install, tighten to 10 Nm (89 lb-in).

Courtesy of FORD MOTOR COMPANY

All vehicles

13.

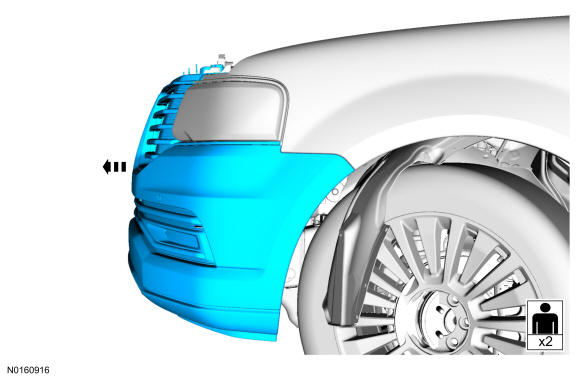

With the help of an assistant, remove the front bumper cover.

Courtesy of FORD MOTOR COMPANY

All vehicles

14.

To install, reverse the removal procedure.
