Removal And Installation

Both Antenna Cables

1. 1.

   Remove the glove compartment. For additional information, refer to Instrument Panel and Console .

Instrument Panel Antenna Cable

1. 2.

   Remove the Audio Front Control Module(ACM). For additional information, refer to Audio Control Module (ACM) .

1. 3.

   Remove the two bolts and the Front Display Interface Module(FDIM).

   1. 1.

      Disconnect the electrical connector(s).

   1. 2.

      To install, tighten to 2.5 Nm (23 lb-in).

Courtesy of FORD MOTOR COMPANY

1. 4.

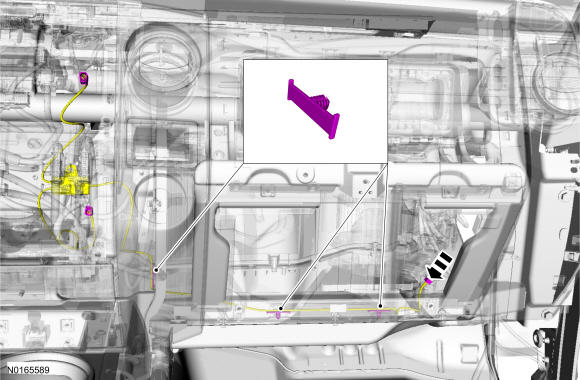

   Release the satellite radio antenna cable retainers and remove the satellite radio antenna cable following the routing shown.

   1. 1.

      Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

Body Antenna Cable

1. 5.

   Remove the RH A-pillar trim panel. For additional information, refer to Interior Trim and Ornamentation .

1. 6.

   Remove the RH sun visor. For additional information, refer to Interior Trim and Ornamentation , Headliner - Exploded View.

1. 7.

   Lower the front of the headliner enough to gain access to the satellite radio antenna electrical connector.

1. 8.

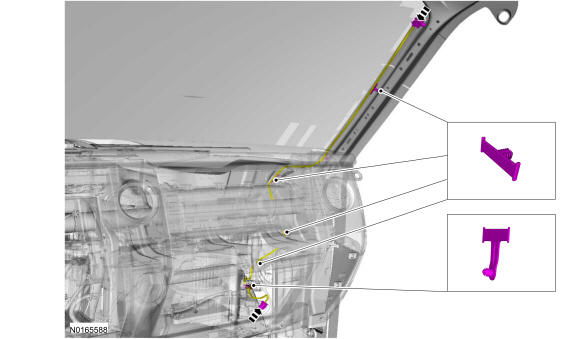

   Release the satellite radio antenna cable retainers and remove the satellite radio antenna cable following the routing shown.

   1. 1.

      Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

Both Antenna Cables

1. 9.

   To install, reverse the removal procedure.
