Removal And Installation
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the driver air bag module. Refer to
Supplemental Restraint System
.
- 2.

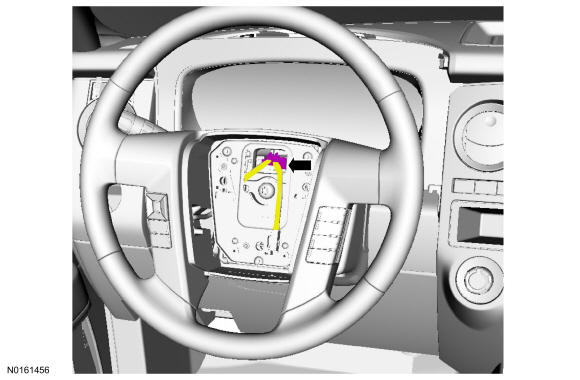

Disconnect the steering wheel switch electrical connectors.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

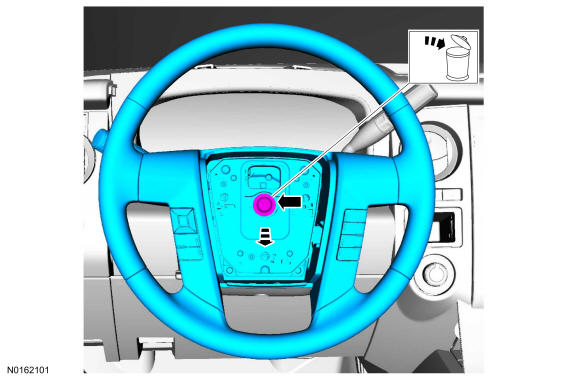

Remove the bolt and the steering wheel.
- To install, tighten the new bolt to 48 Nm (35 lb-ft).
 Courtesy of FORD MOTOR COMPANY
|
- 4.

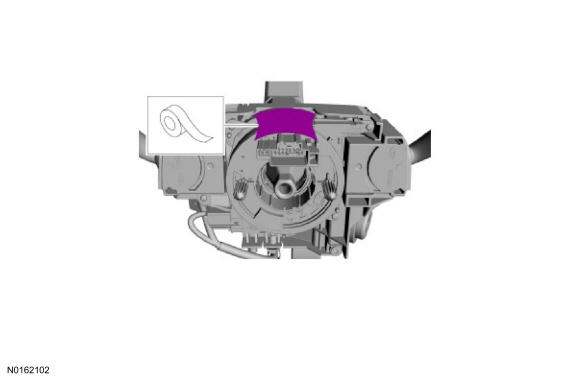

Tape the clockspring rotor to the outer housing to keep it from rotating.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
To install, reverse the removal procedure.
